The Voyager 16
Technical Meets Tough

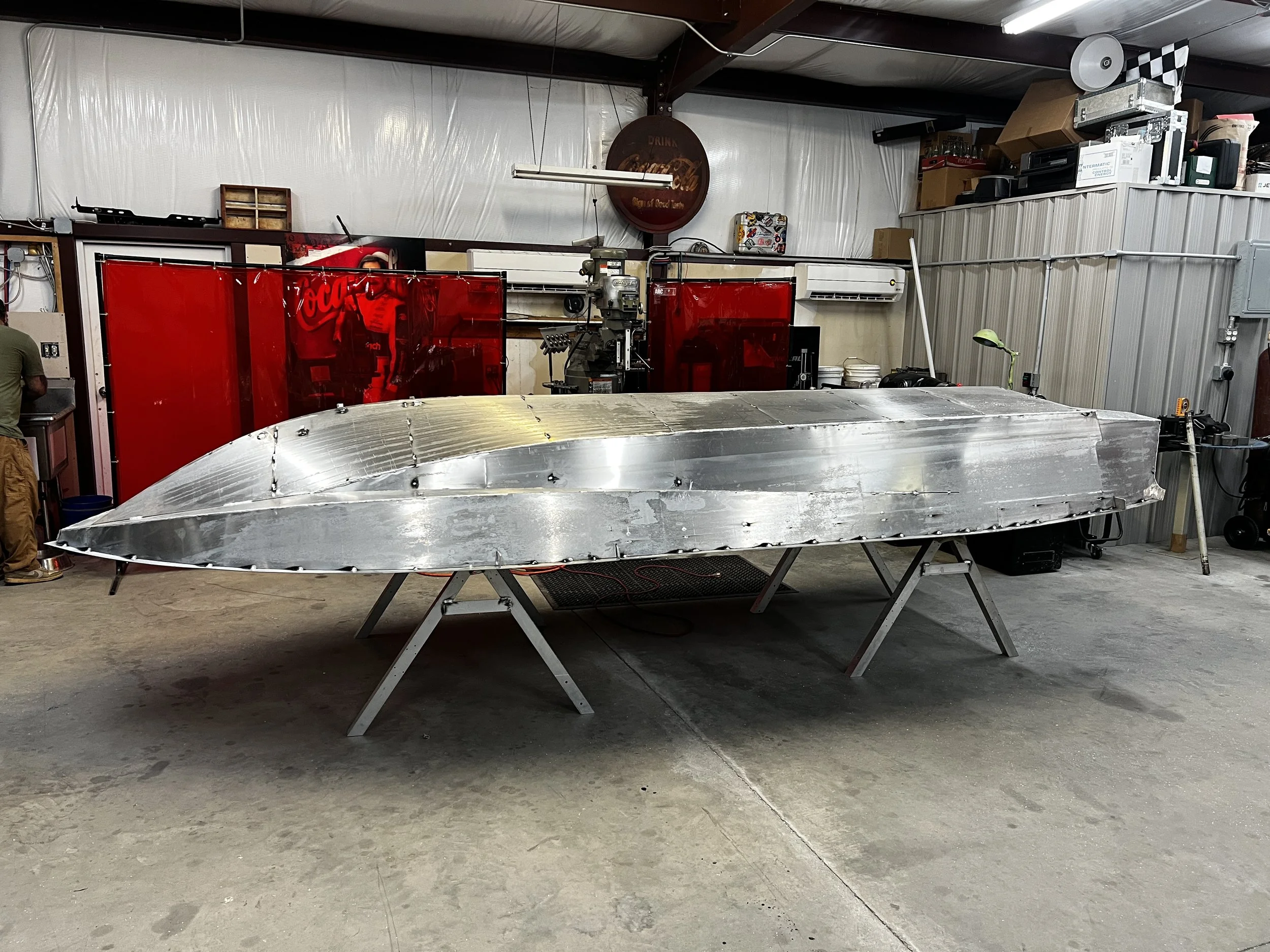

The Voyager 16 is engineered to go head to head with the fiberglass skiff market while delivering the strength, durability, and peace of mind of an all aluminum hull.

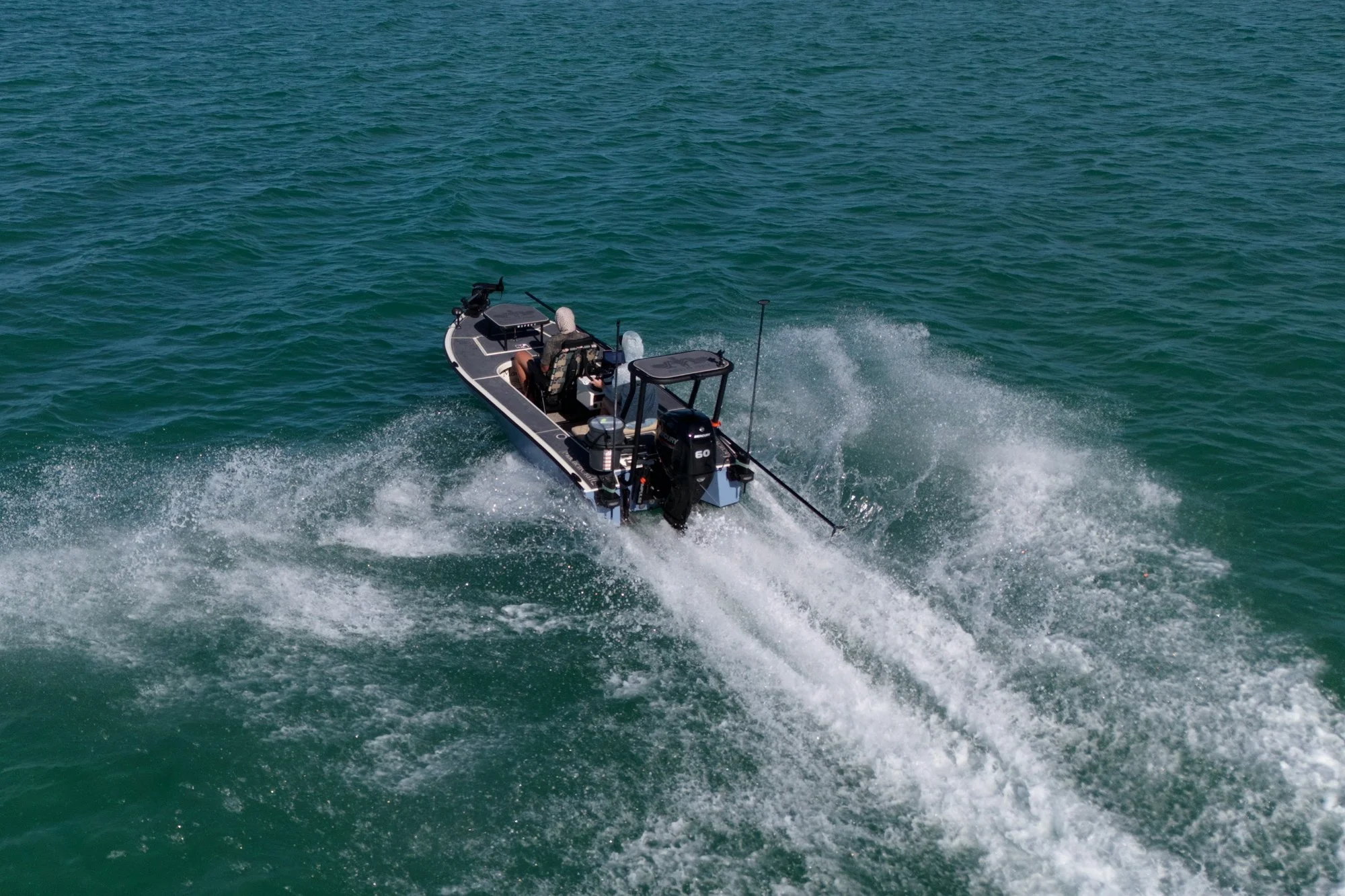

Oversized forward spray rails combined with dedicated poling strakes keep the hull riding high and dry, forcing spray down and away even in stiff wind and rough chop.

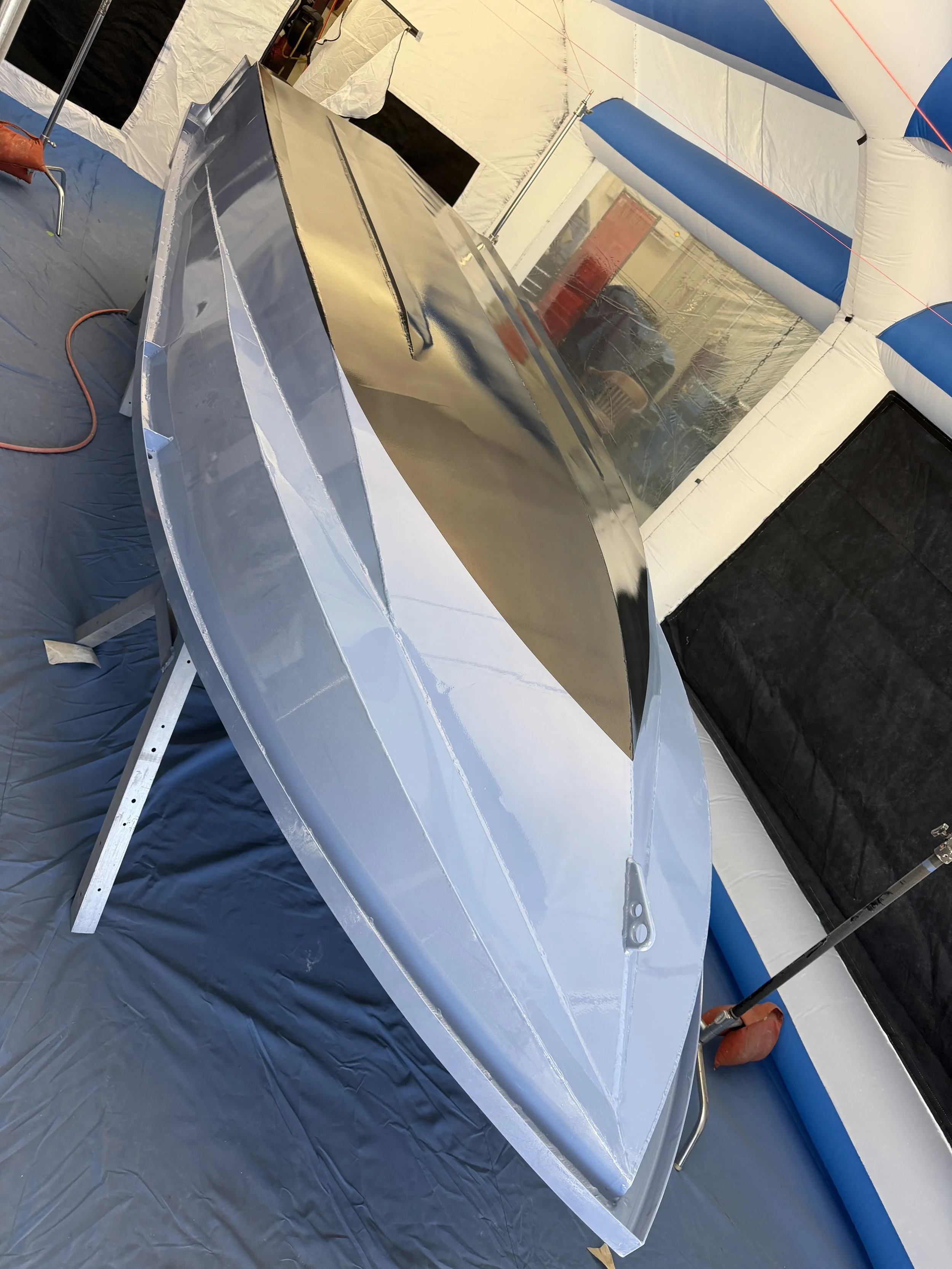

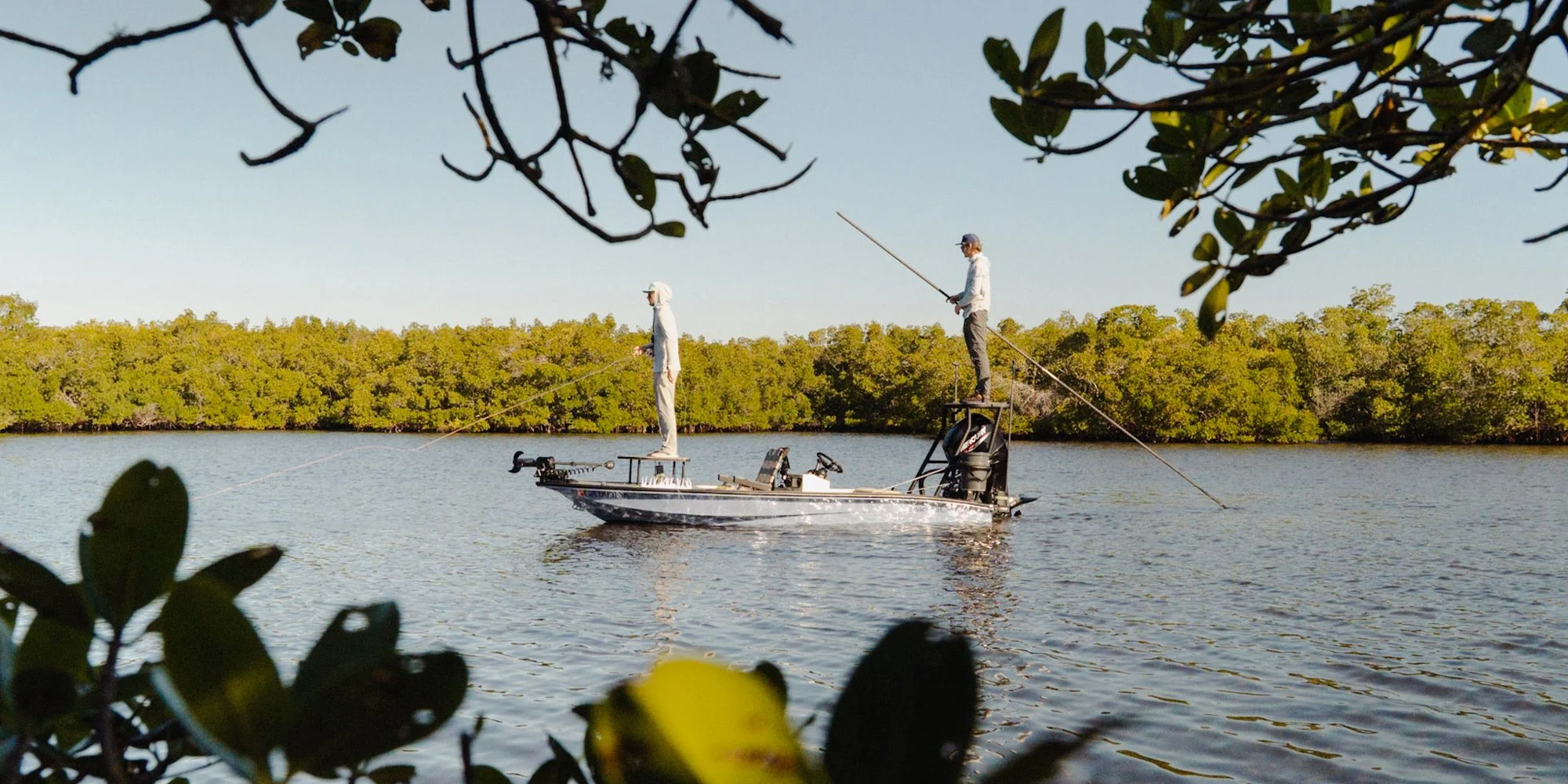

Silent poling was a non negotiable design requirement. The hull carries a shallow transom deadrise that transitions aggressively toward the keel, paired with fully submerged chines to minimize slap and hull noise. The result is a classic technical poling skiff that stays quiet, stable, and efficient in the skinniest water.
Voyager 16 Specifications
6-8”
APPROX. DRAFT
500LBS
HULL WEIGHT
68”
BEAM
16’6”
LENGTH
36˚
MIDSHIP DEADRISE
7˚
TRANSOM DEADRISE
820LBS.
WEIGHT CAPACITY
3 PERSONS
RATED CAPACITY
60HP
MAX POWER
13GAL
FUEL CAPACITY
50HP
RECOMMENDED

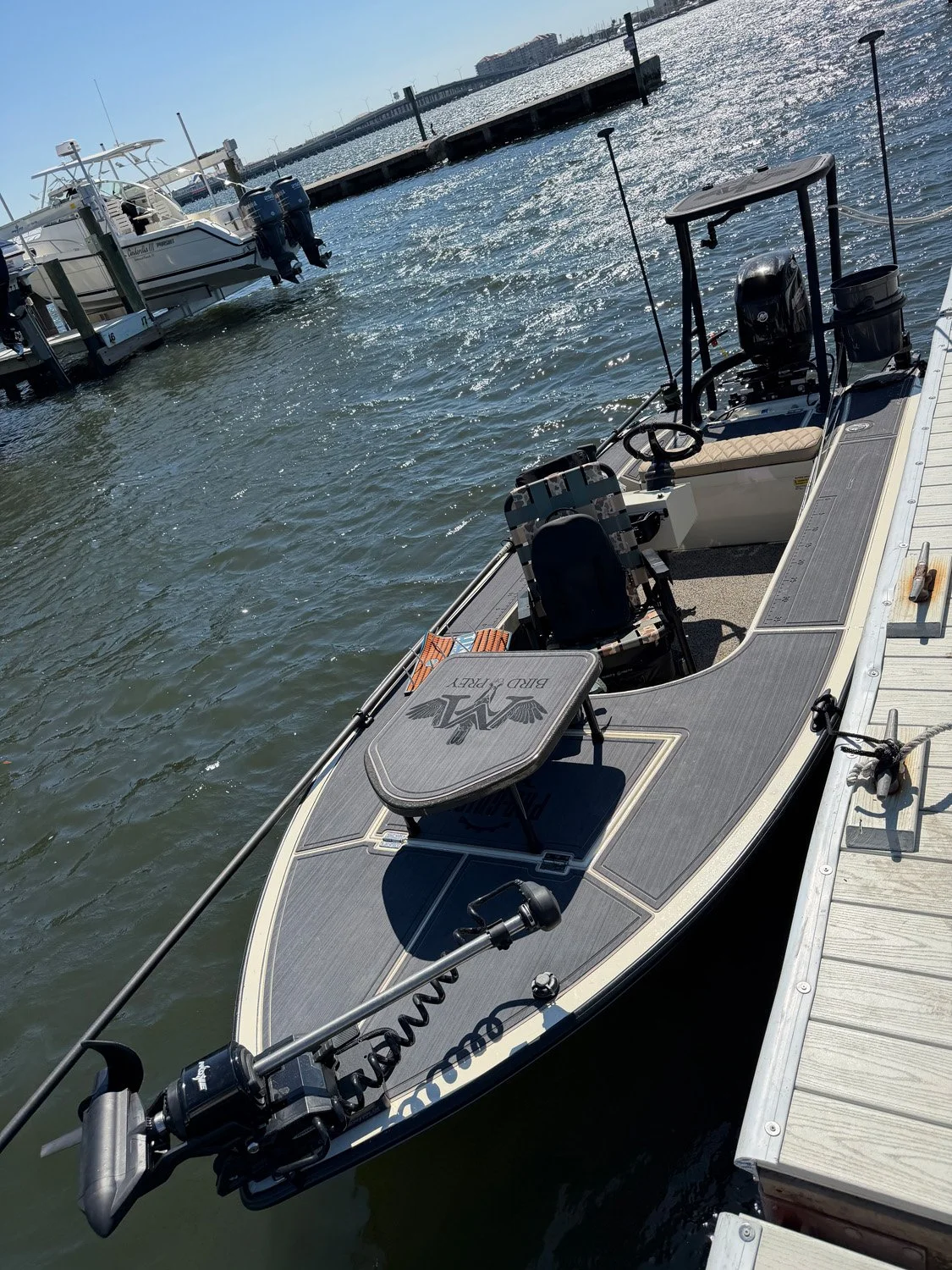

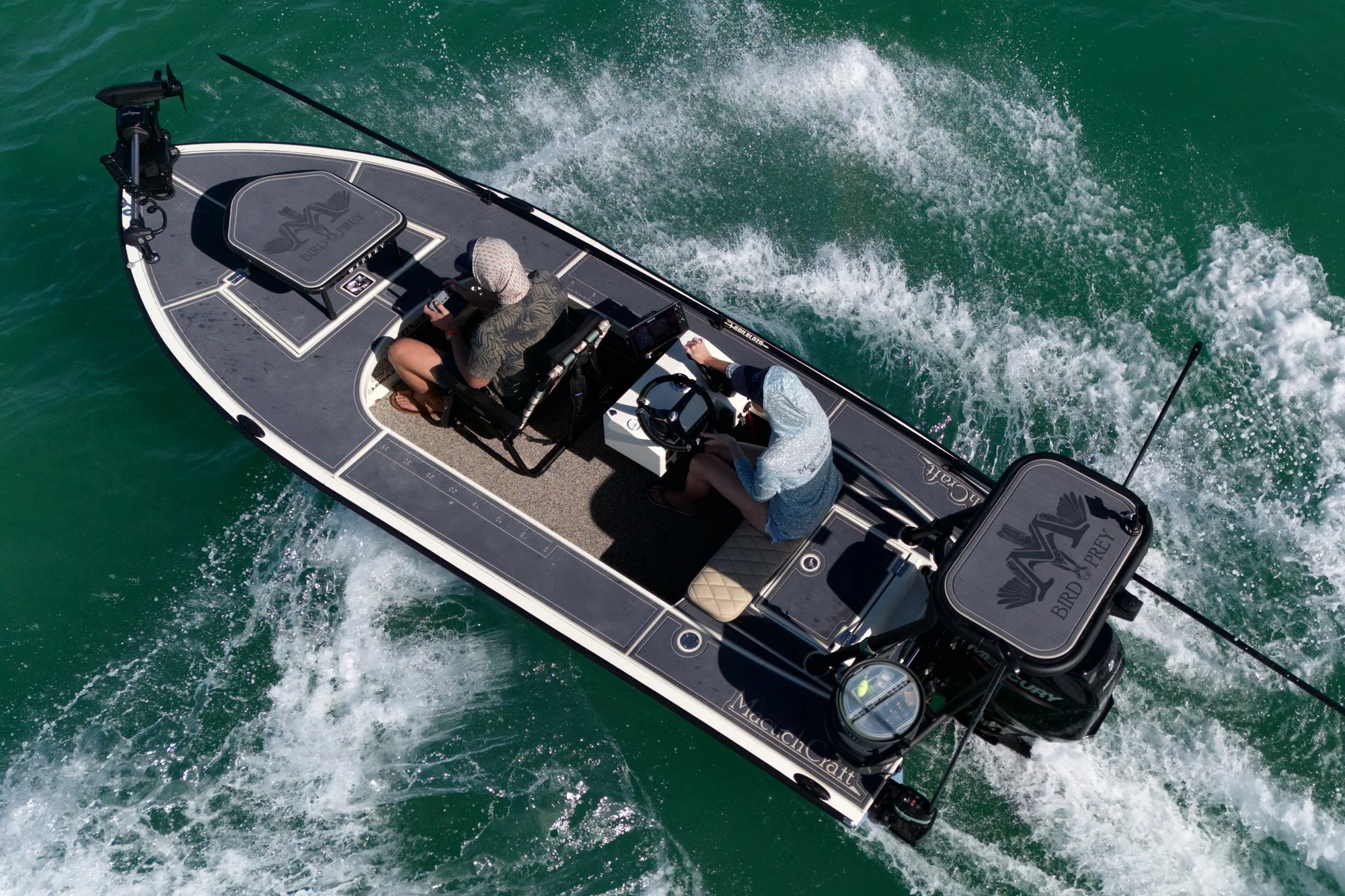

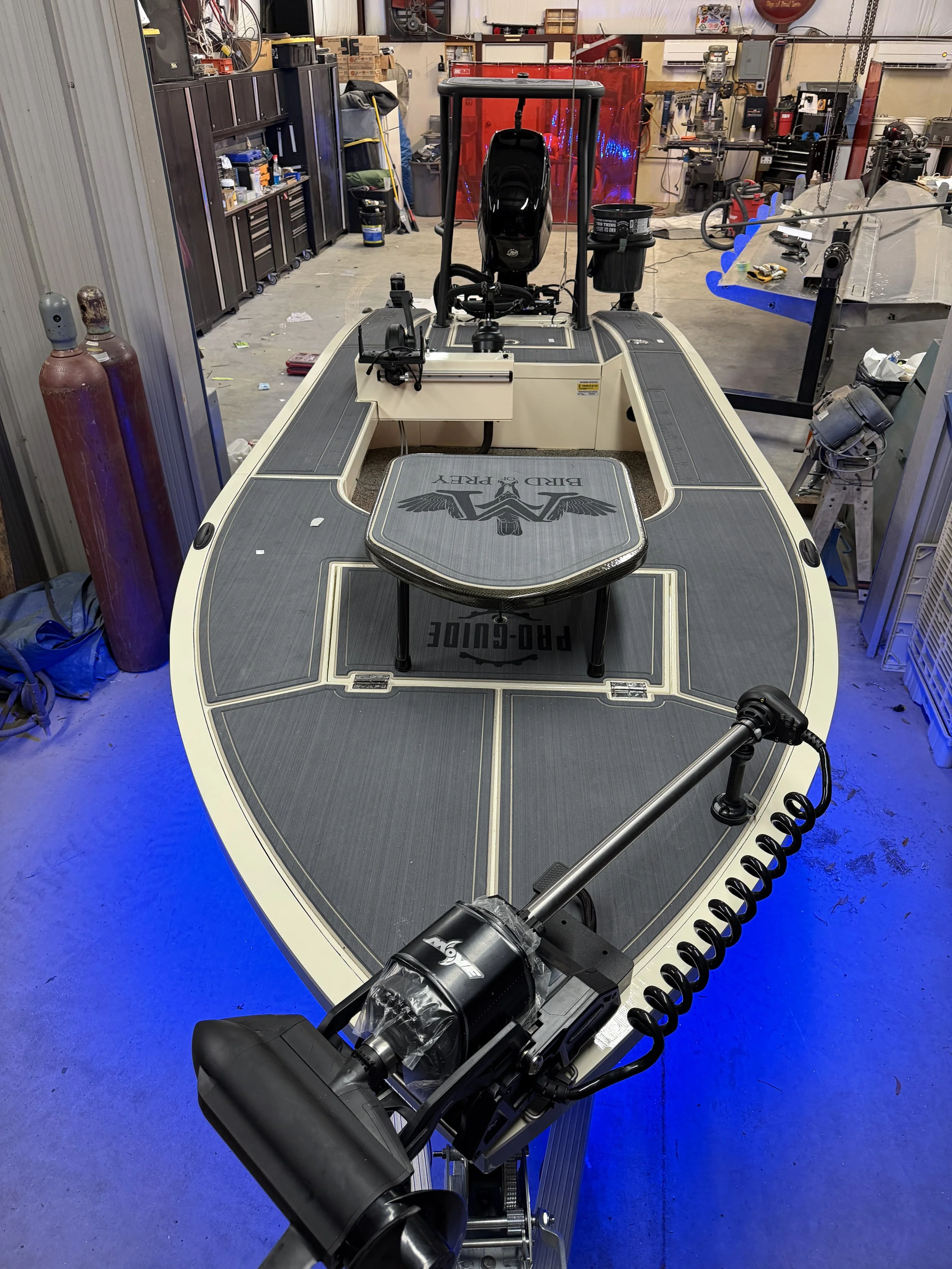

Bird of Prey Edition
The Bird of Prey Edition Voyager 16 is our pre-spec’d super-premium skiff. In terms of both aesthetics and functionality, the Bird of Prey represents the best of the best. Highlights include:

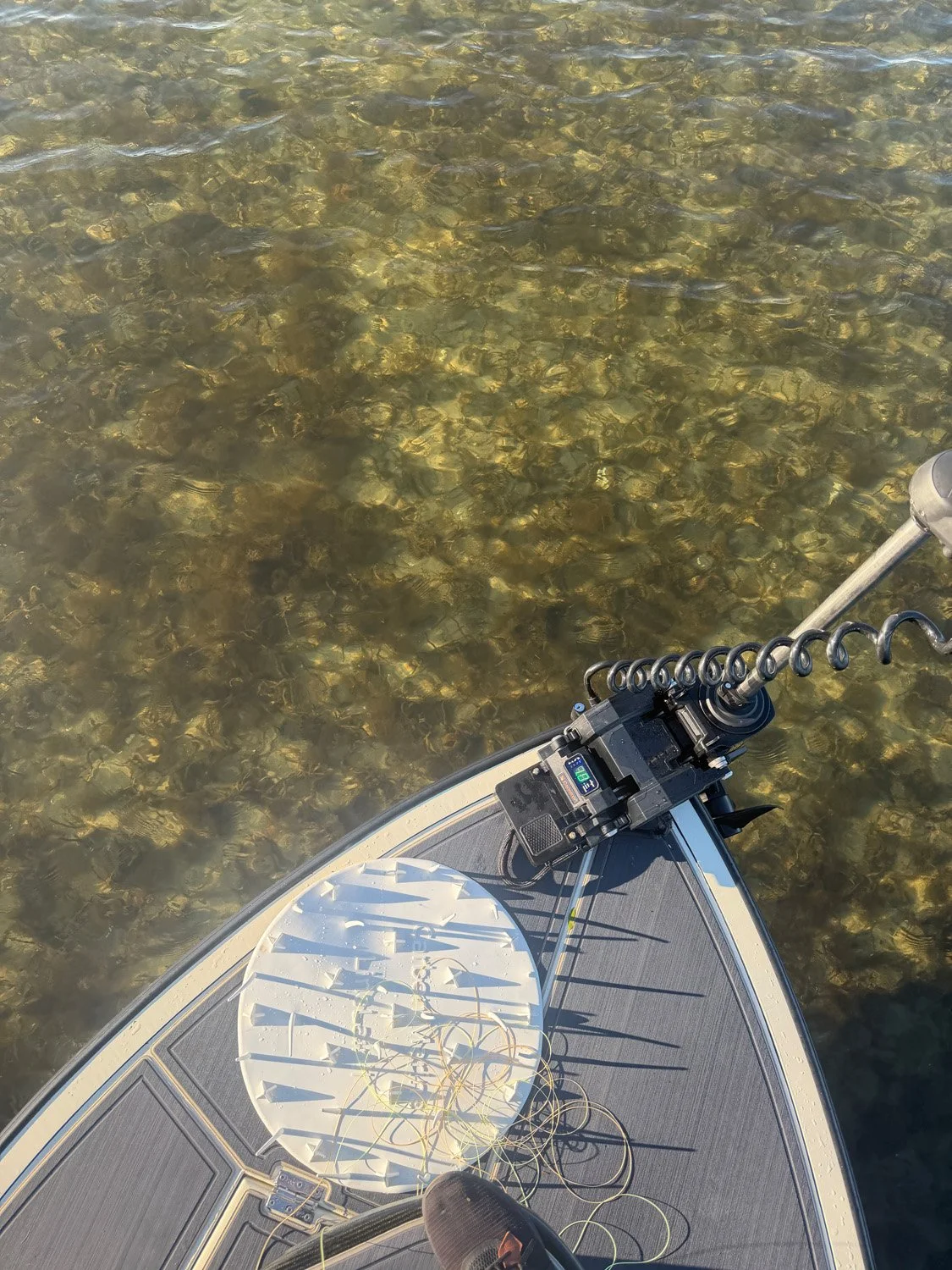

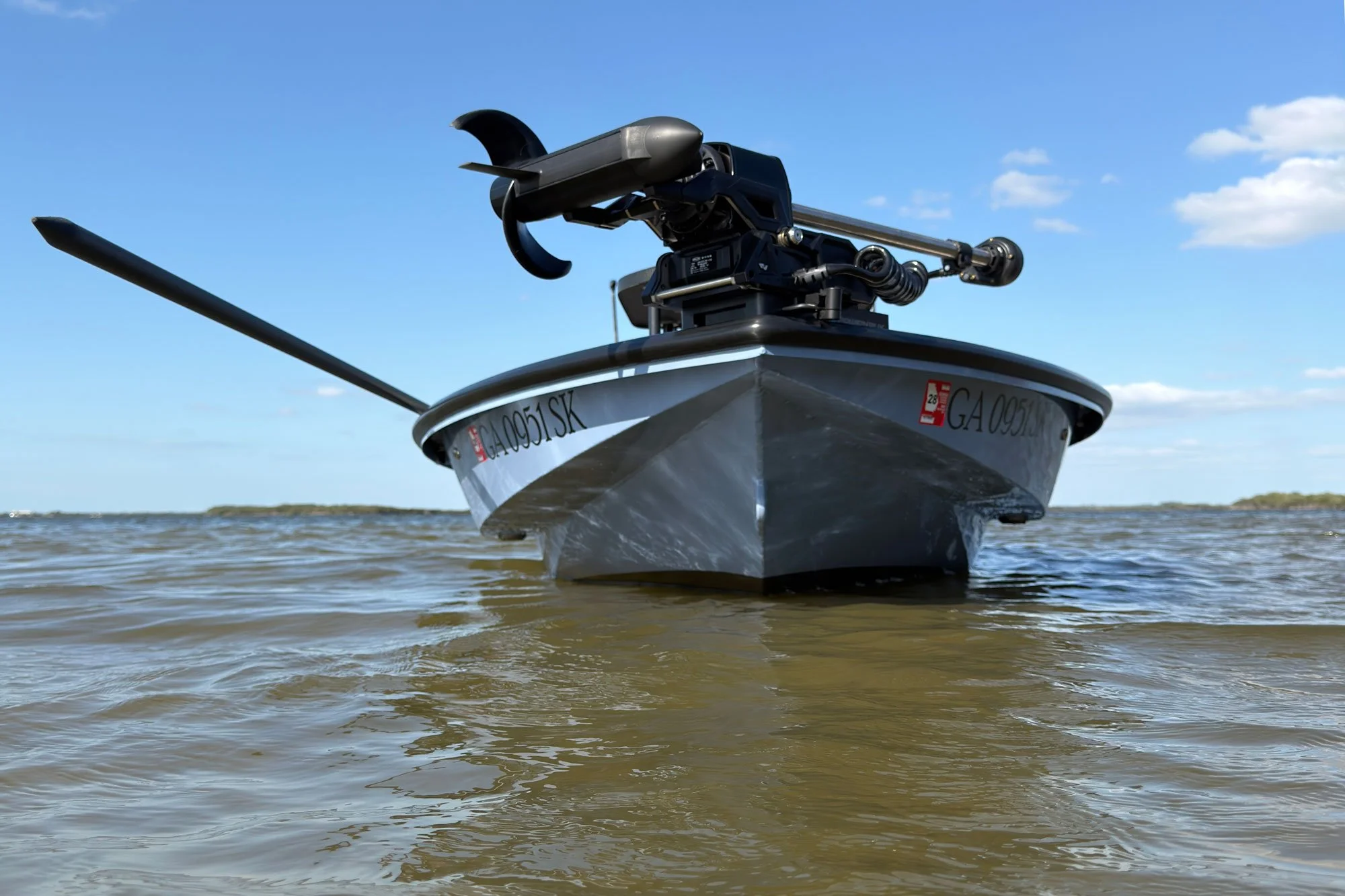

Power-Pole Move trolling motor w/ Power Pux quick release mount
Dual Power-Pole Micro shallow water anchors
Pro Guide 24V lithium battery w/ on-board charger

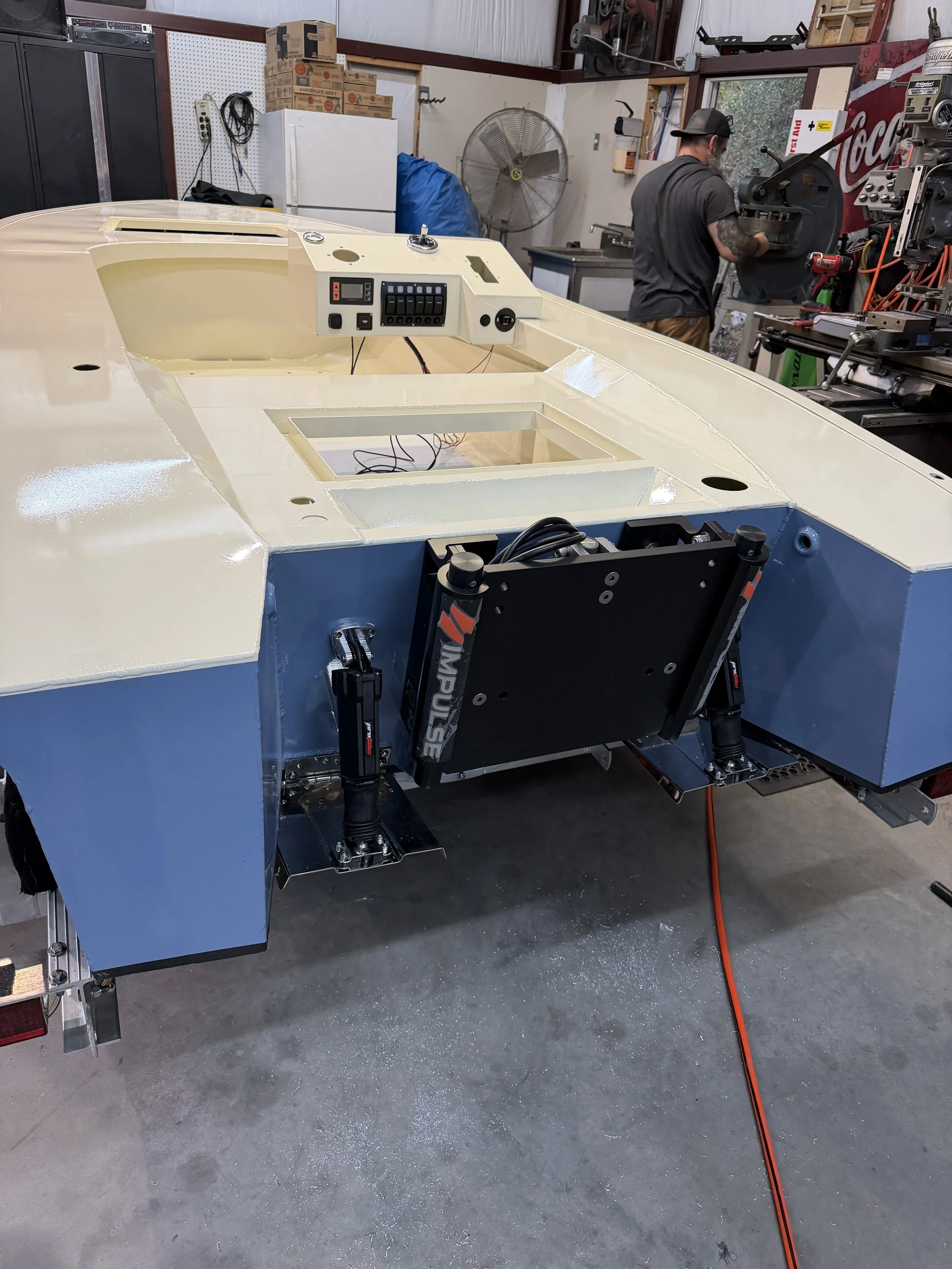

Powrtran Impulse ceramic-coated all-electric 6” jack plate w/ smart controller

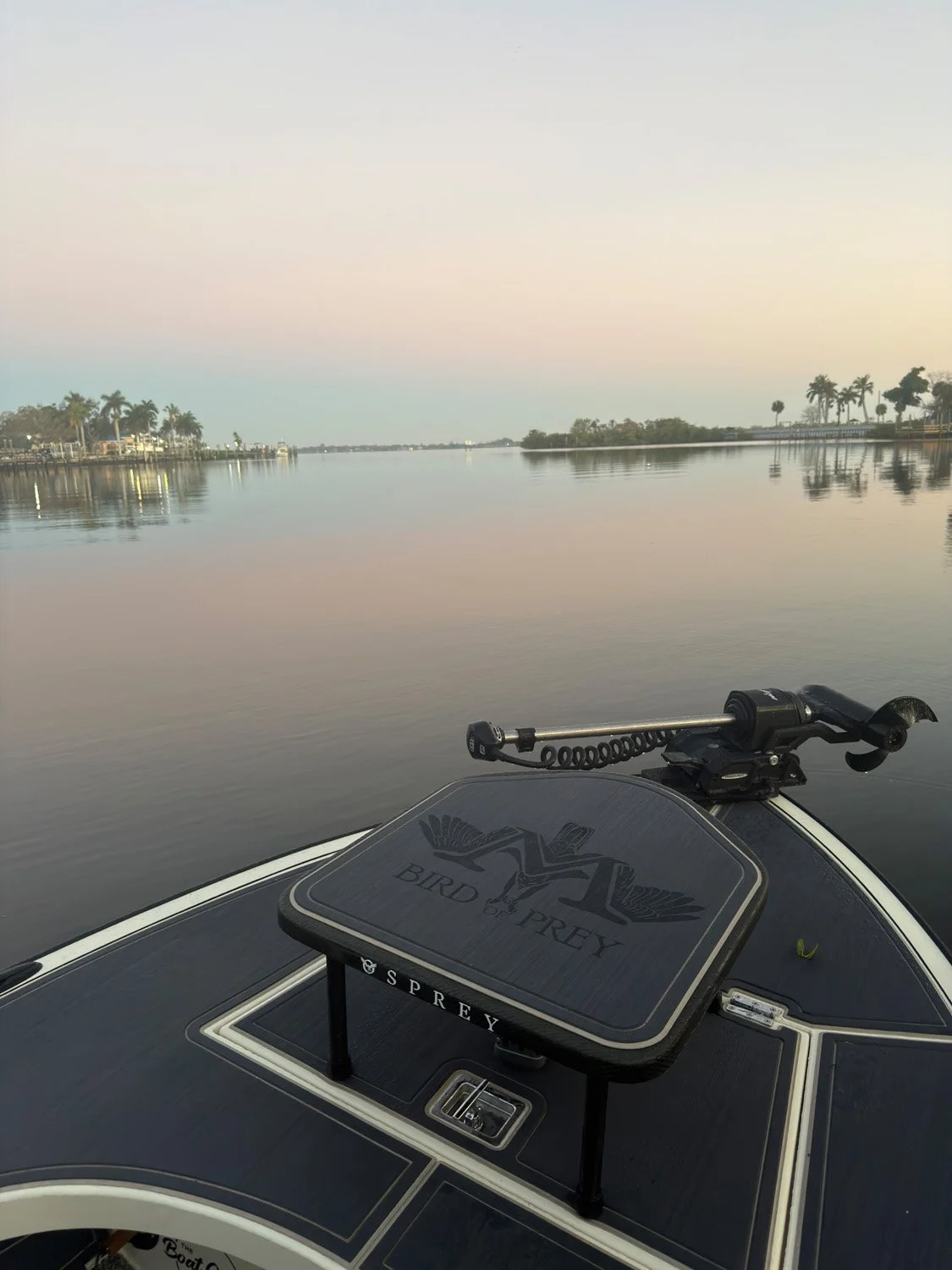

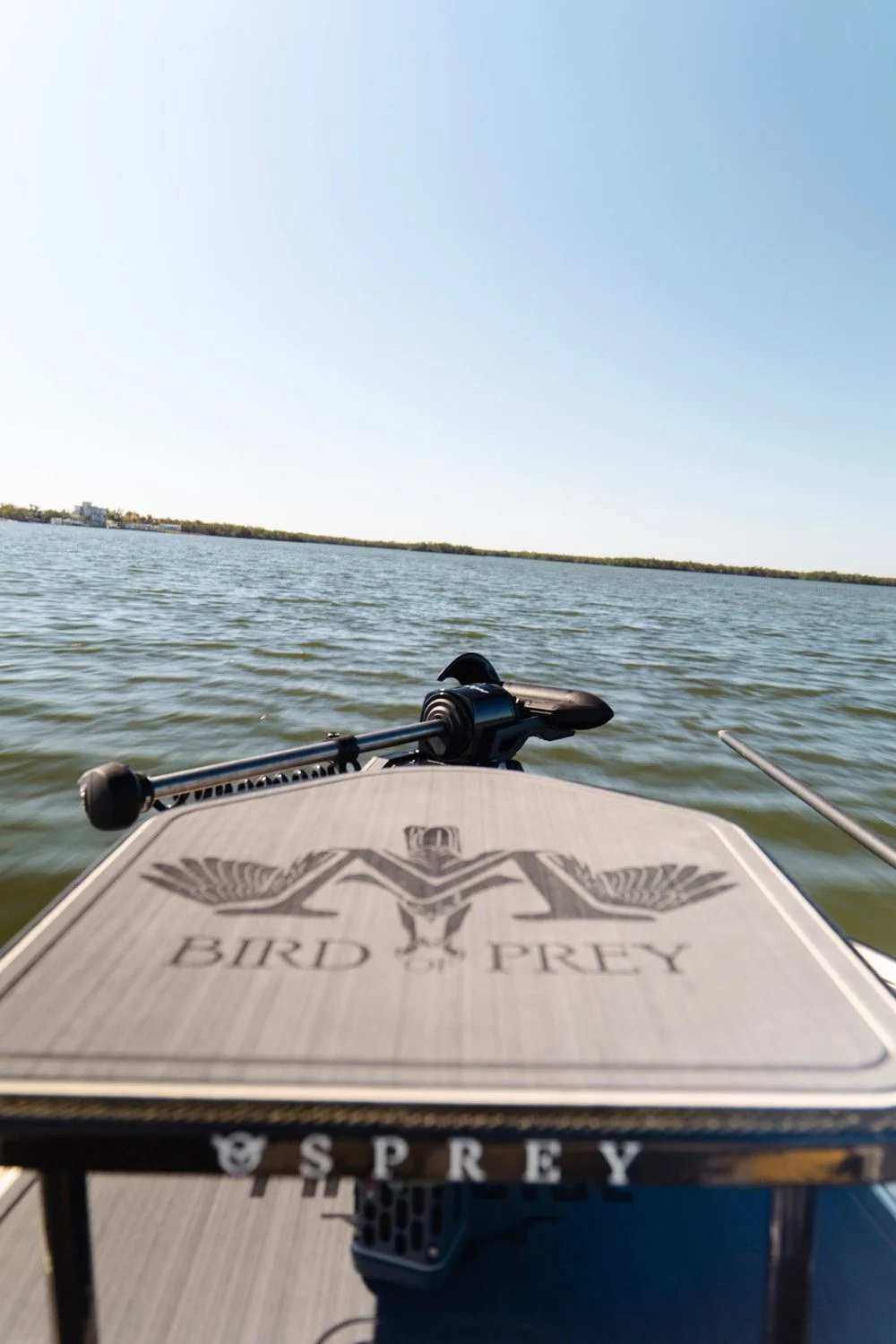

Osprey carbon fiber casting platform

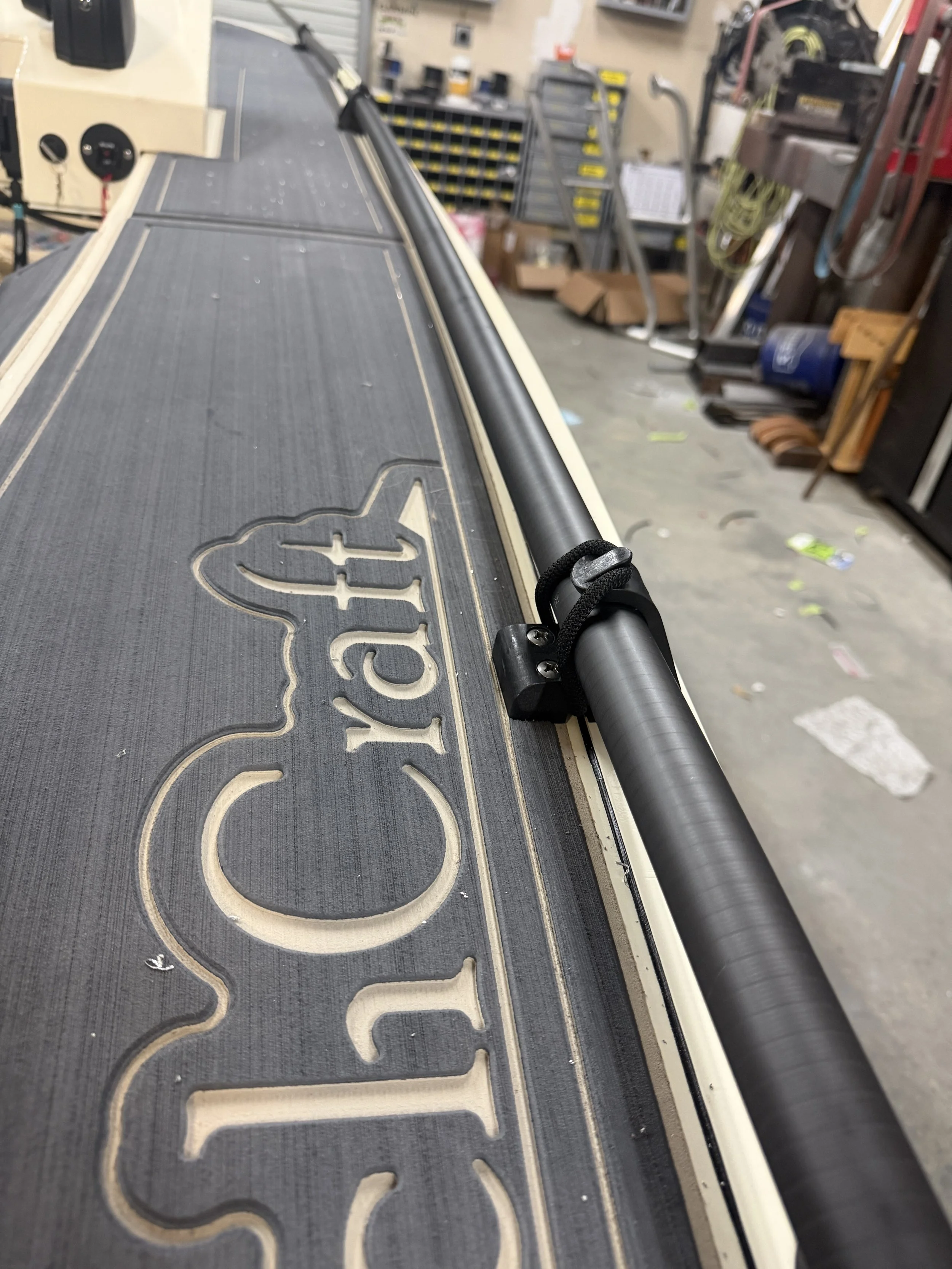

Railblaza Trident 21’ modular carbon fiber push pole
V-Marine Guide push pole holders
V-Marine push pole caddy

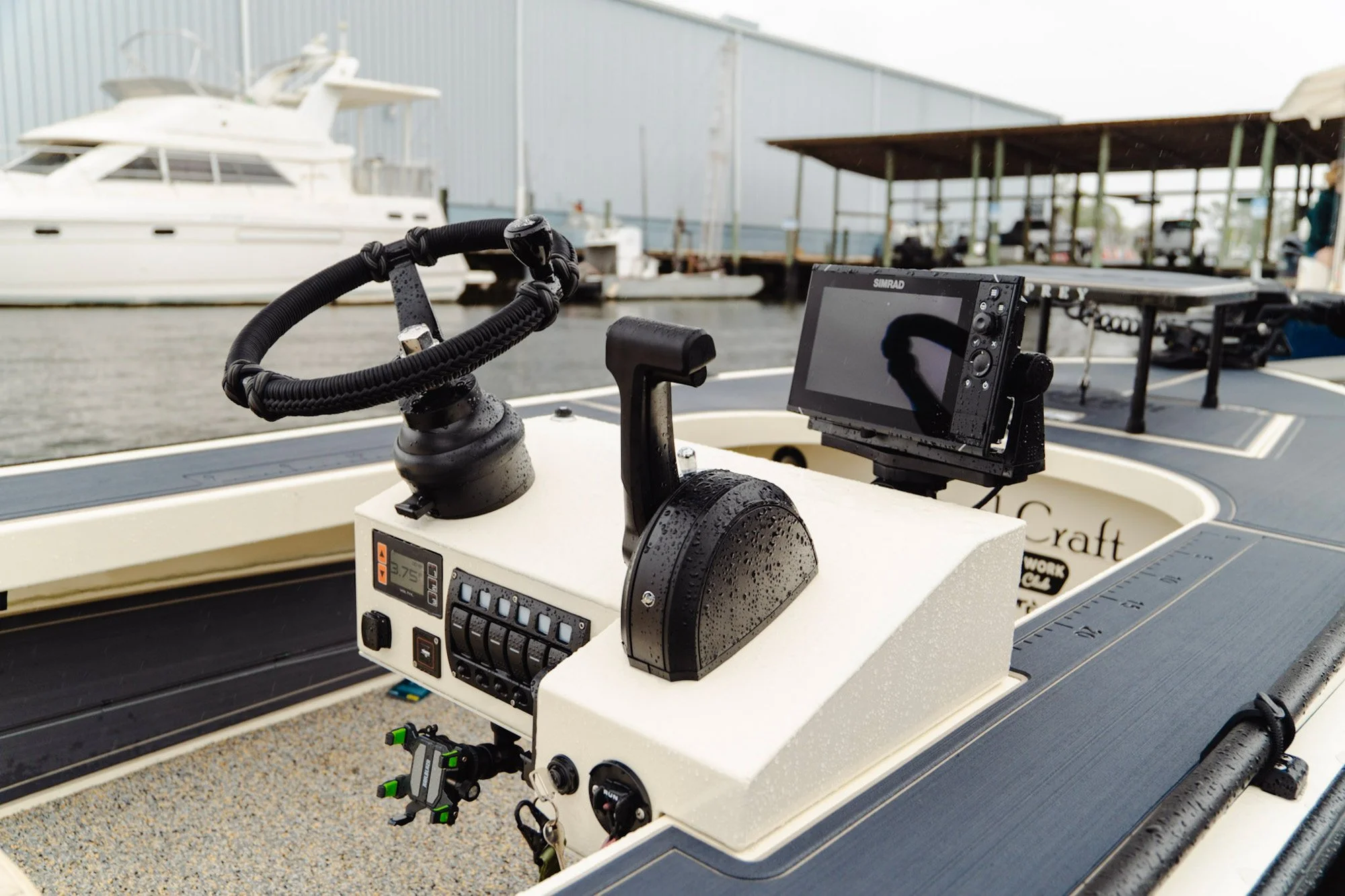

Color-matched paracord steering wheel wrap by Capt. Hunter’s Nautical Creations
Textured black poling platform
Custom upholstery
Full foam decking

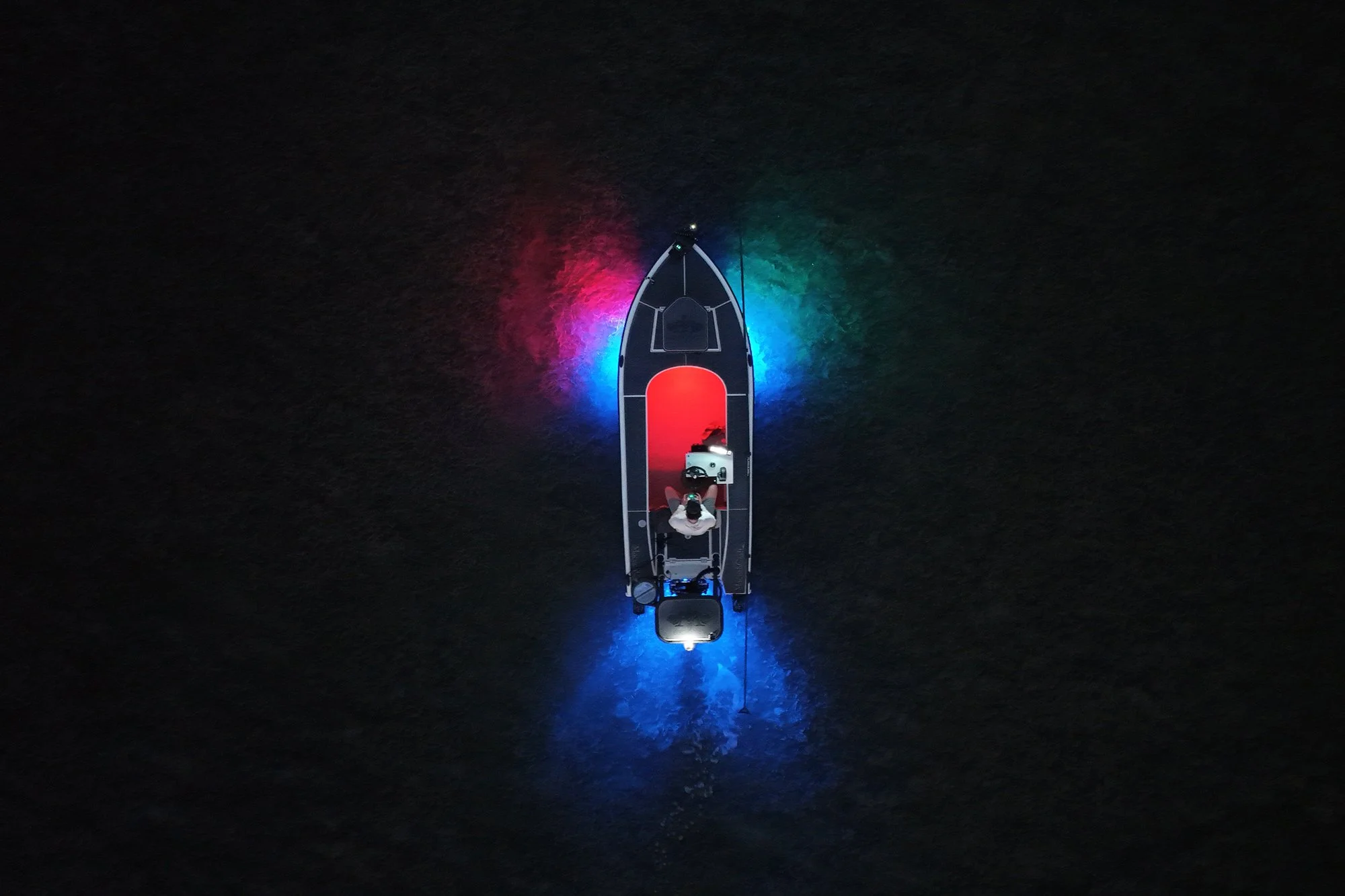

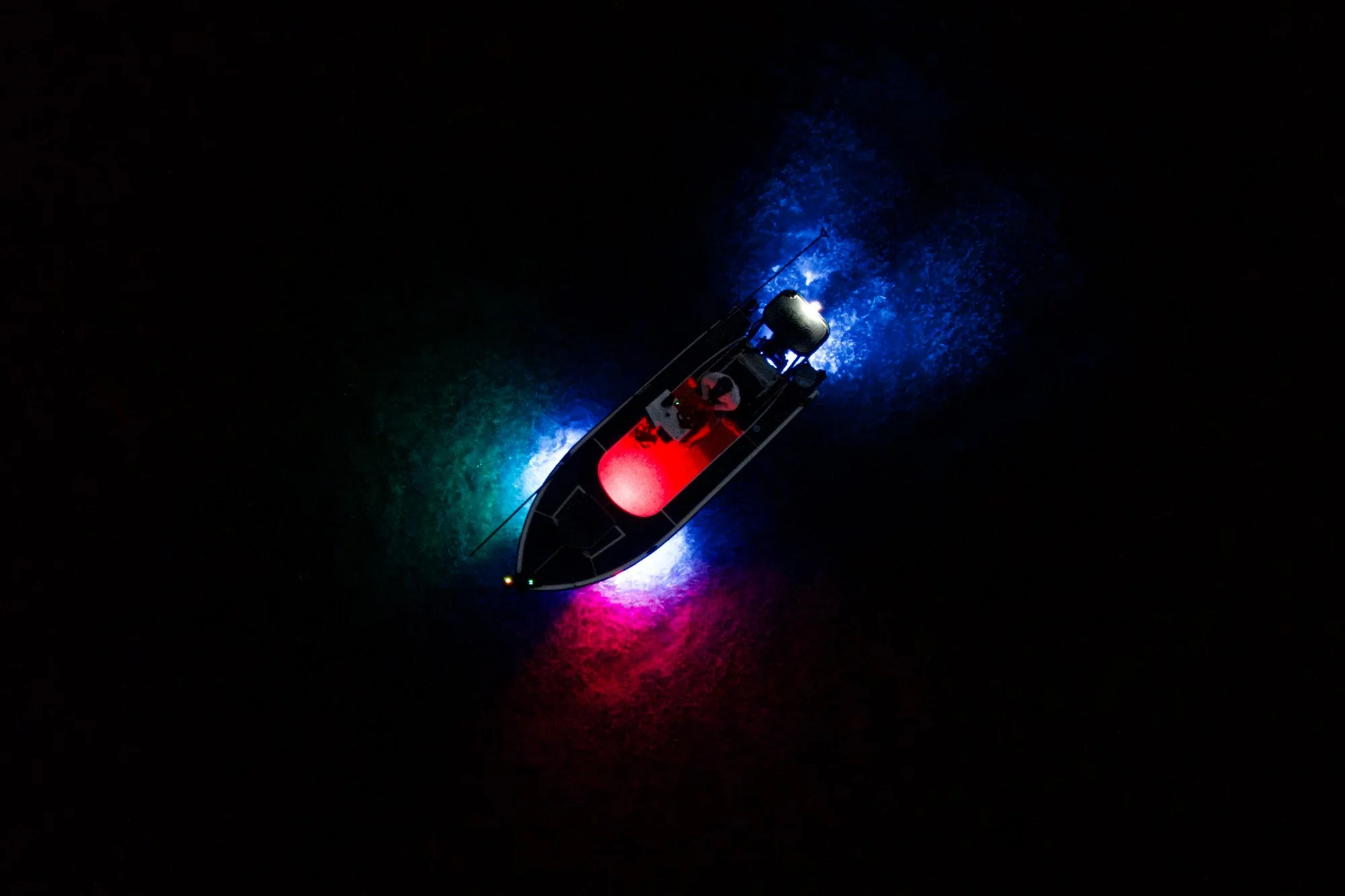

Interior and underwater LED lighting
Standards & Options
The options listed below represent some popular additions to the Voyager 16. They are far from the only options, though. We can customize hatch and console configurations, electronics and audio, colors and finishes, and much more. If you’re interested in something you don’t see here, just ask!
Standard Features
Hull & Deck
Hull and console fully sand blasted and painted any single color
Tiller Steering
TACO seamless rub rail w/ insert
(4) stainless steel popup cleats
(2) storage hatches with gutters and drains
(4) 10ft under-gunwale rod tubes
Grade 316 stainless steel hardware throughout
Electrical
TACO Marine LED navigation lights
Automatic 800 GPH bilge pump

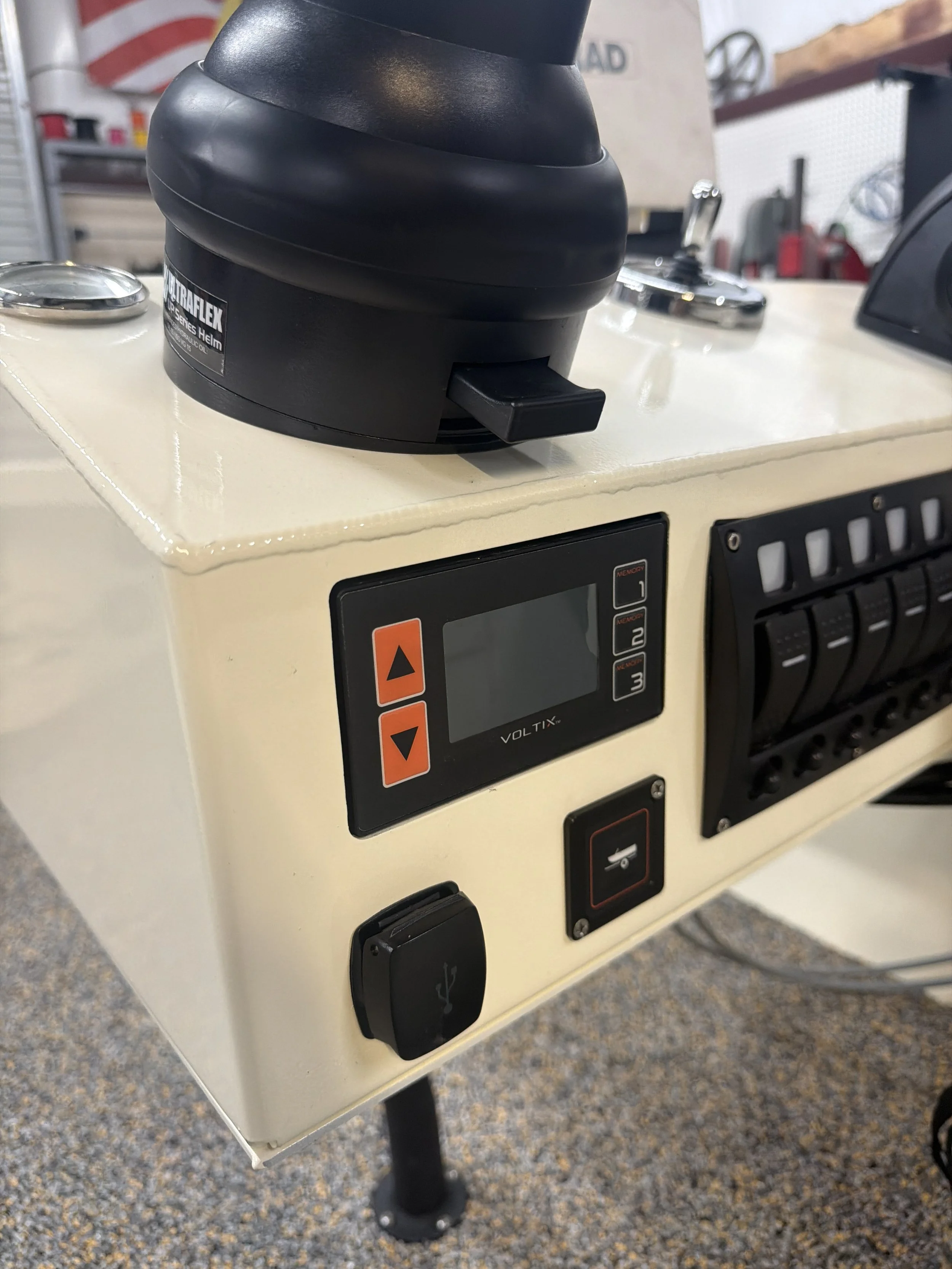

6 gang switch panel w breakers
Battery switch
Pro-Guide Marine AGM battery
Premium battery tray and hold-down
Minimum 14 gauge tinned marine wire throughout
Powrtran Electric performance trim tabs
Fuel System
13-gallon polymer fuel tank
Fuel-water separator
Gunwale fuel fill
Fuel hose, bulb, and fittings
Faria fuel gauge
Rigging & Mechanical for Side Console Only
Uflex tilt hydraulic steering
Stainless steel steering wheel
Rigging Package (incl. with Yamaha engine)
Controls
Wiring harness
Key and kill switches
Mounting hardware
Engines
Yamaha F70LA w/ 5-year warranty
Yamaha F60LA w/ 5-year warranty
Other options available
Optional Add-Ons
Hull & Deck
Full CNC-cut foam decking
Cushion package (helm bench and cooler seat)
Tilt-out console glove box with retainer net
(4) Phender Pro quick disconnect fender hangers
Fishing
Powder-coated poling platform
Add foam decking w/ logo
Powder-coated bow casting platform
Add foam decking w/ logo
Premium Flo-Rite livewell with timer and dash controls
Standard Flo-Rite livewell with dash controls
Push pole with gunwale holders
(2) or (4) additional rod holders on console
Electrical & Mechanical
Black Oak courtesy lighting w/ choice of color
Black Oak gigging lights (4) w/ flush mounts
Atlas 6” hydraulic jack plate
Jack plate steering wheel controls
Minn Kota 24V trolling motor w/ batteries, deck plug, and heavy duty mounting pad
Minn Kota onboard charger
NOCO 120V power plug for battery charger
Minn Kota alternator battery charger
Electronics
Humminbird HELIX 9 GPS/fishfinder
Other brands and models available
Garmin Fusion stereo w/ (2) 6.5” speakers
Trailers
WESCO Standard Aluminum Trailer
Aluminum I-beam frame
13” galvanized wheels
LED lights
Galvanized hardware
Torsion axle
WESCO Premium Aluminum Trailer
14” aluminum wheels w/ stainless lugs nuts
Stainless hardware
Pipe guides
Spare tire with carrier

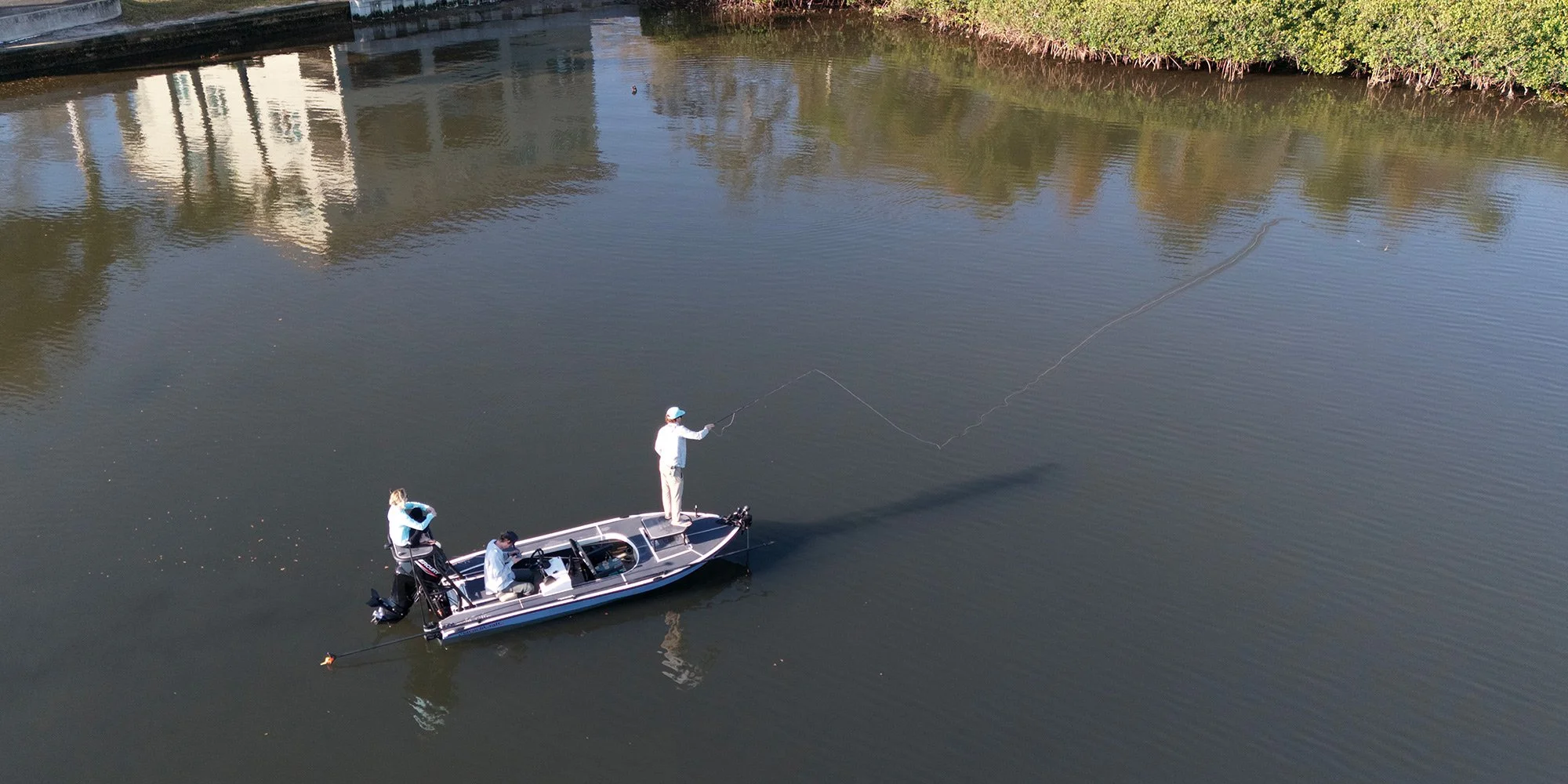

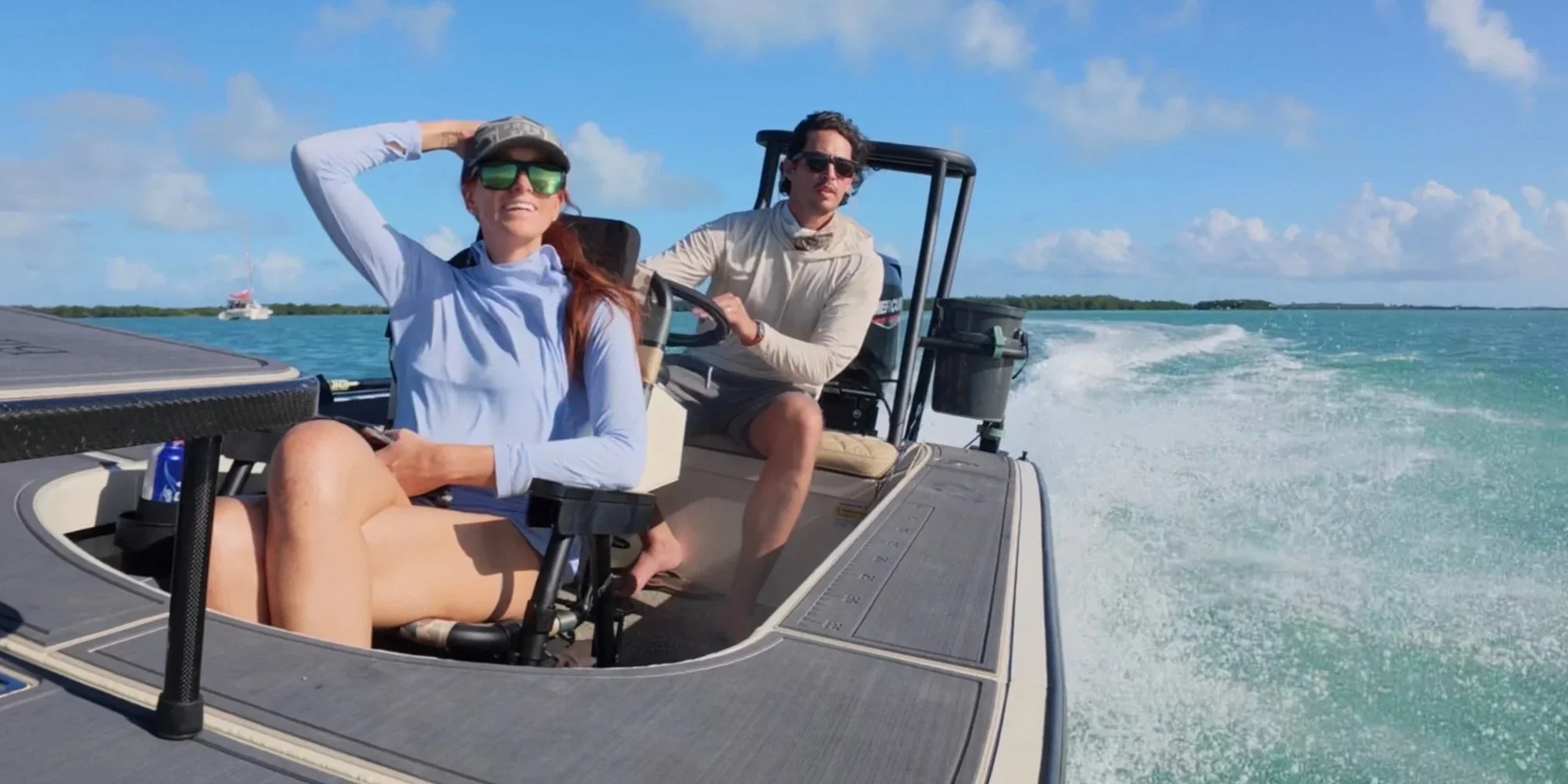

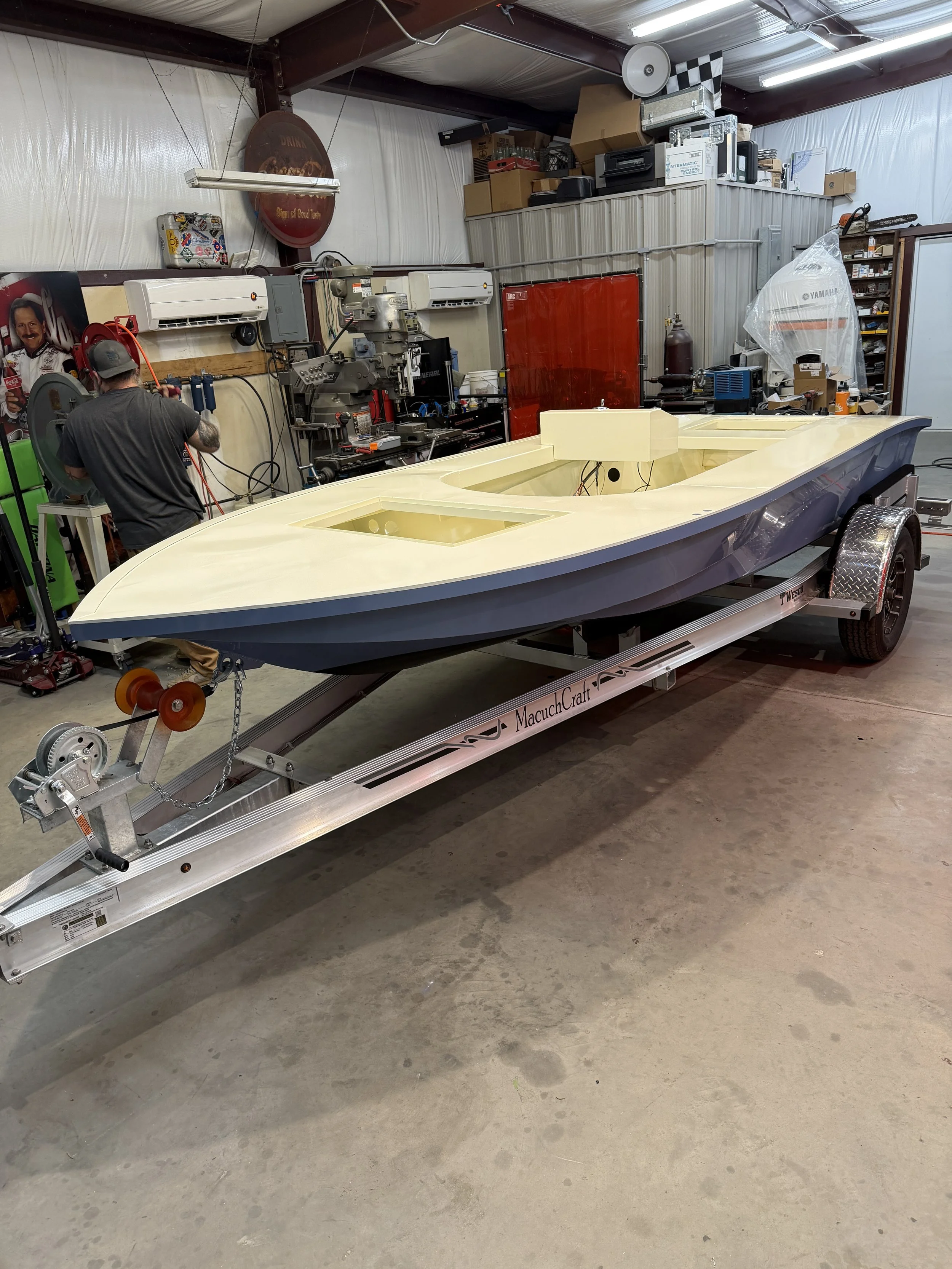

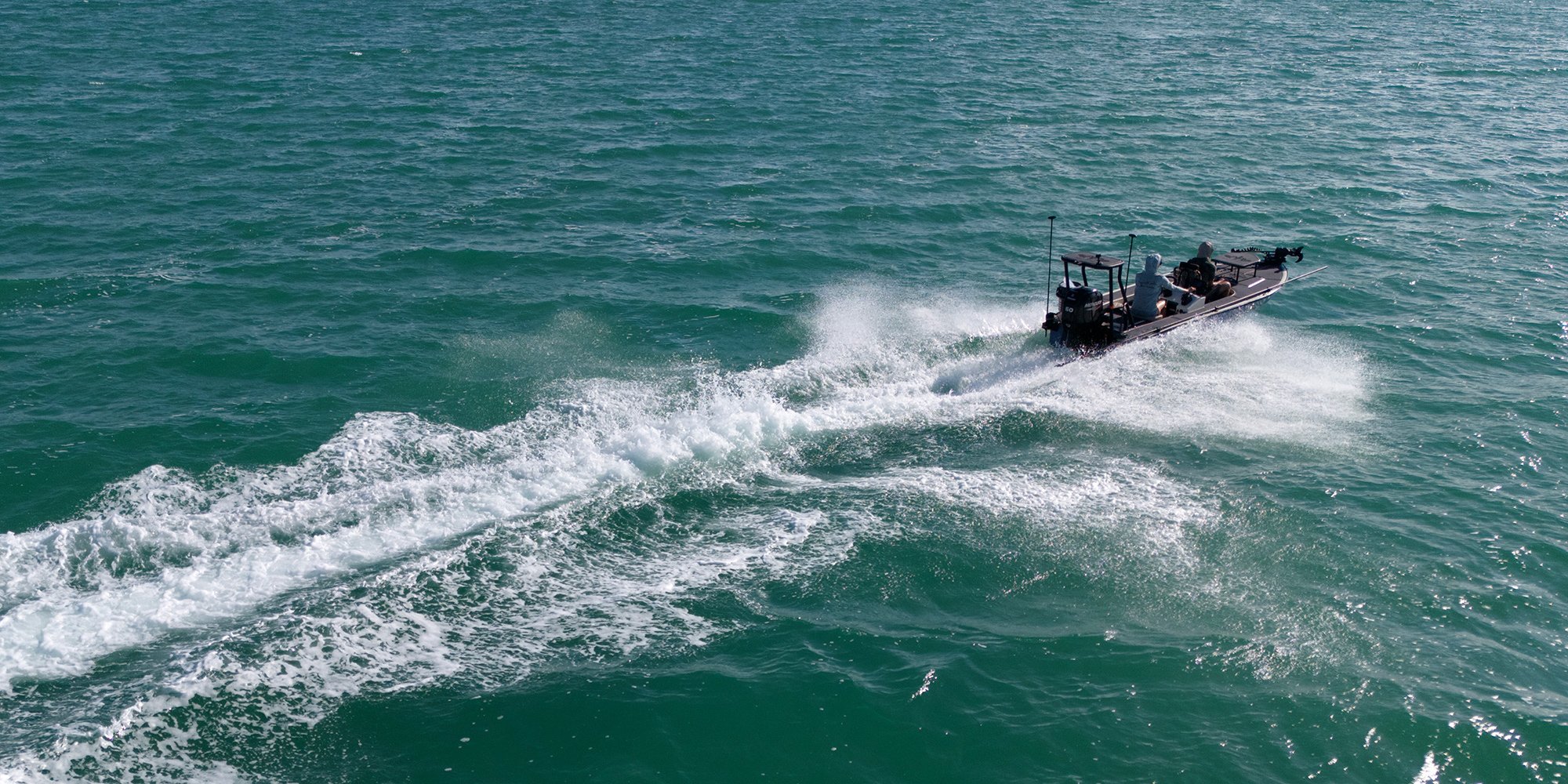

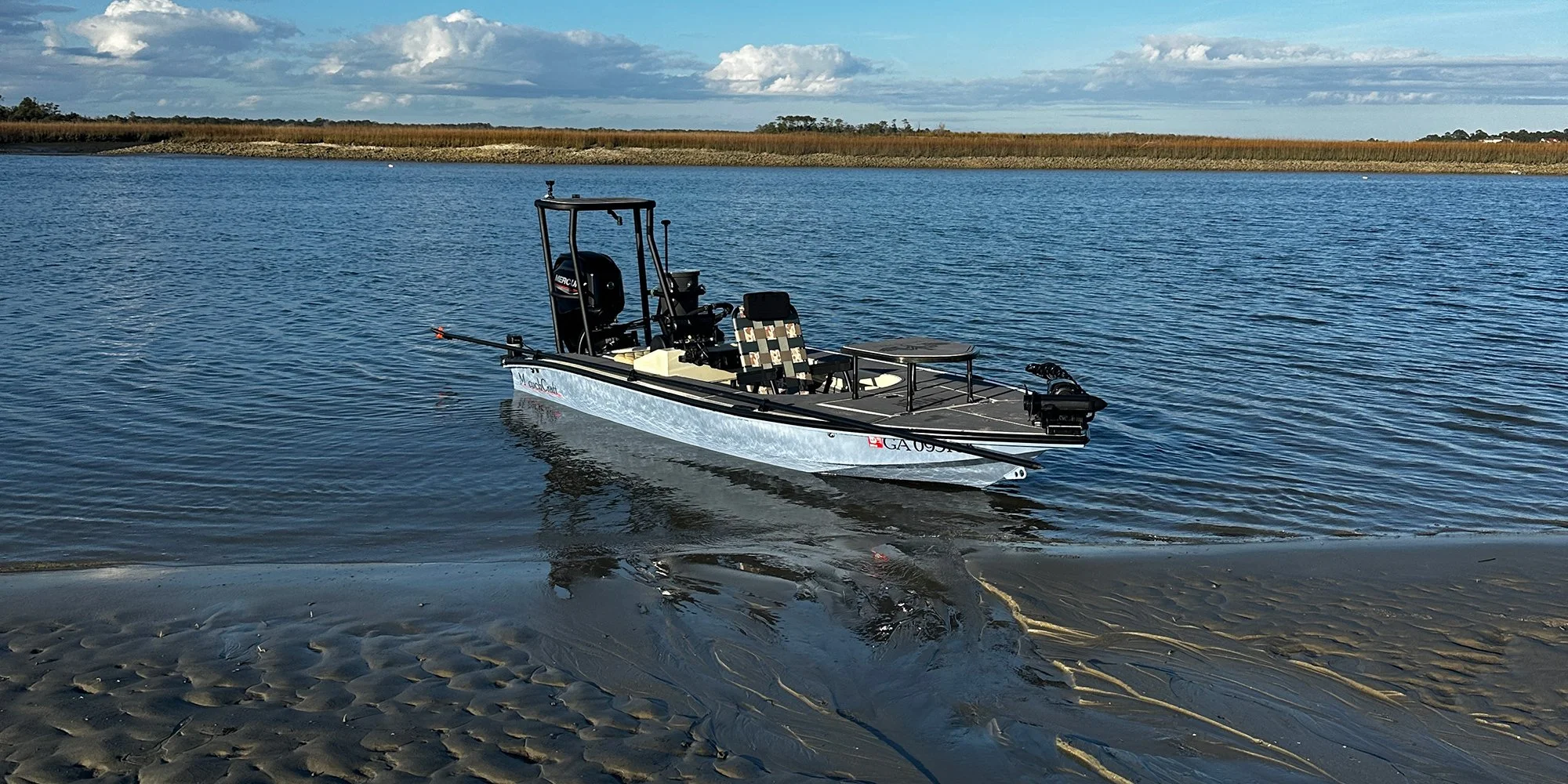

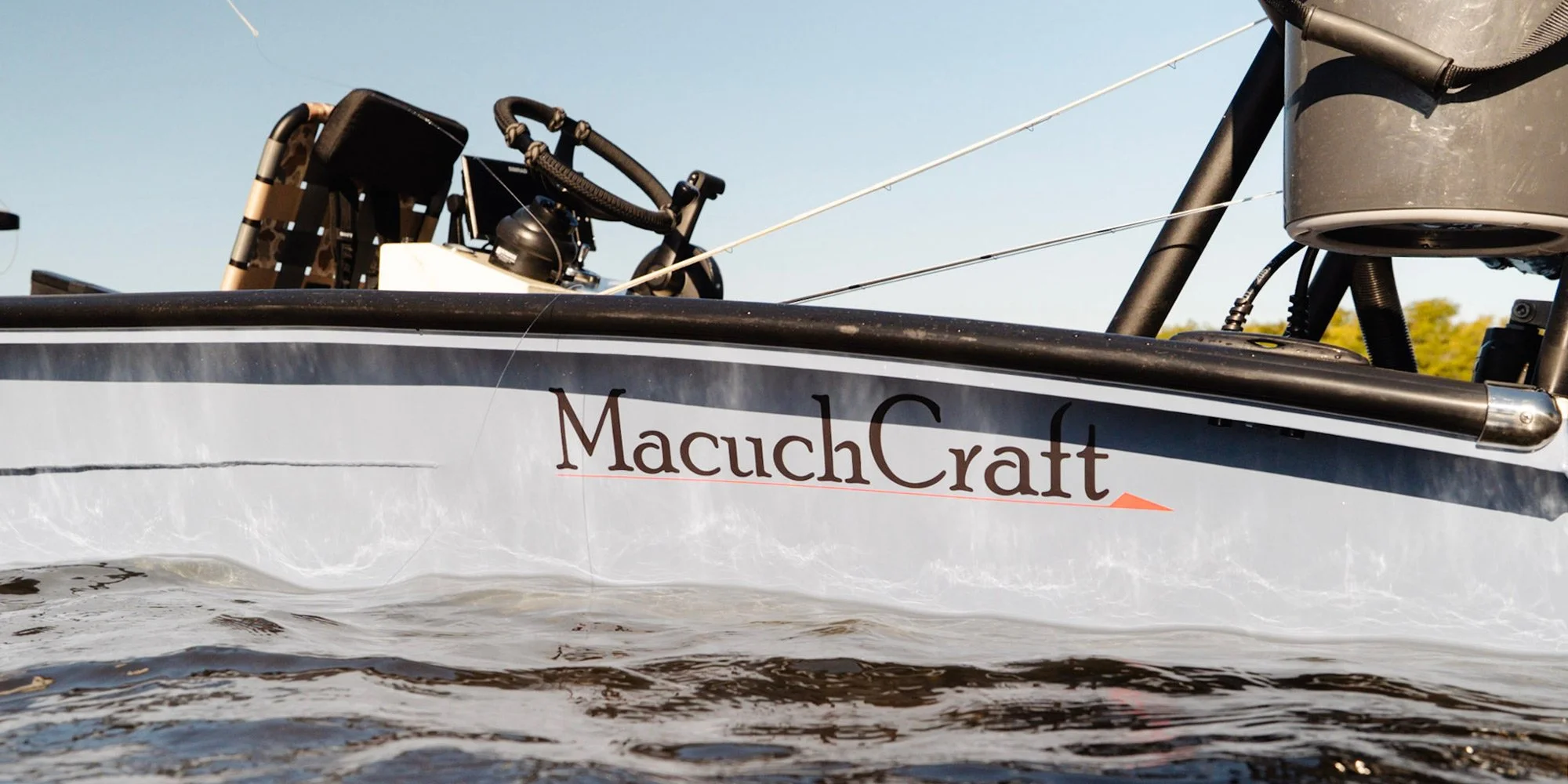

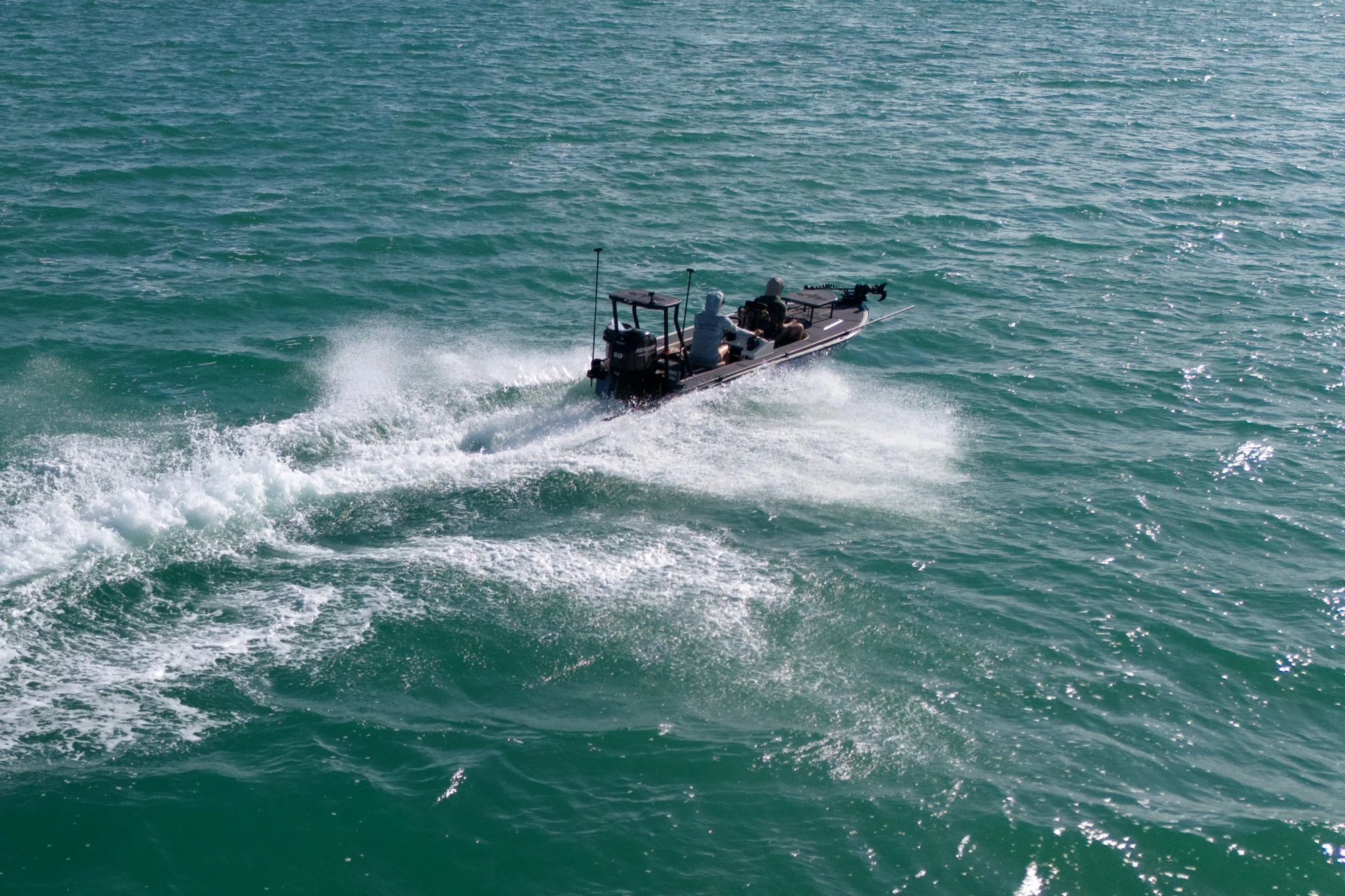

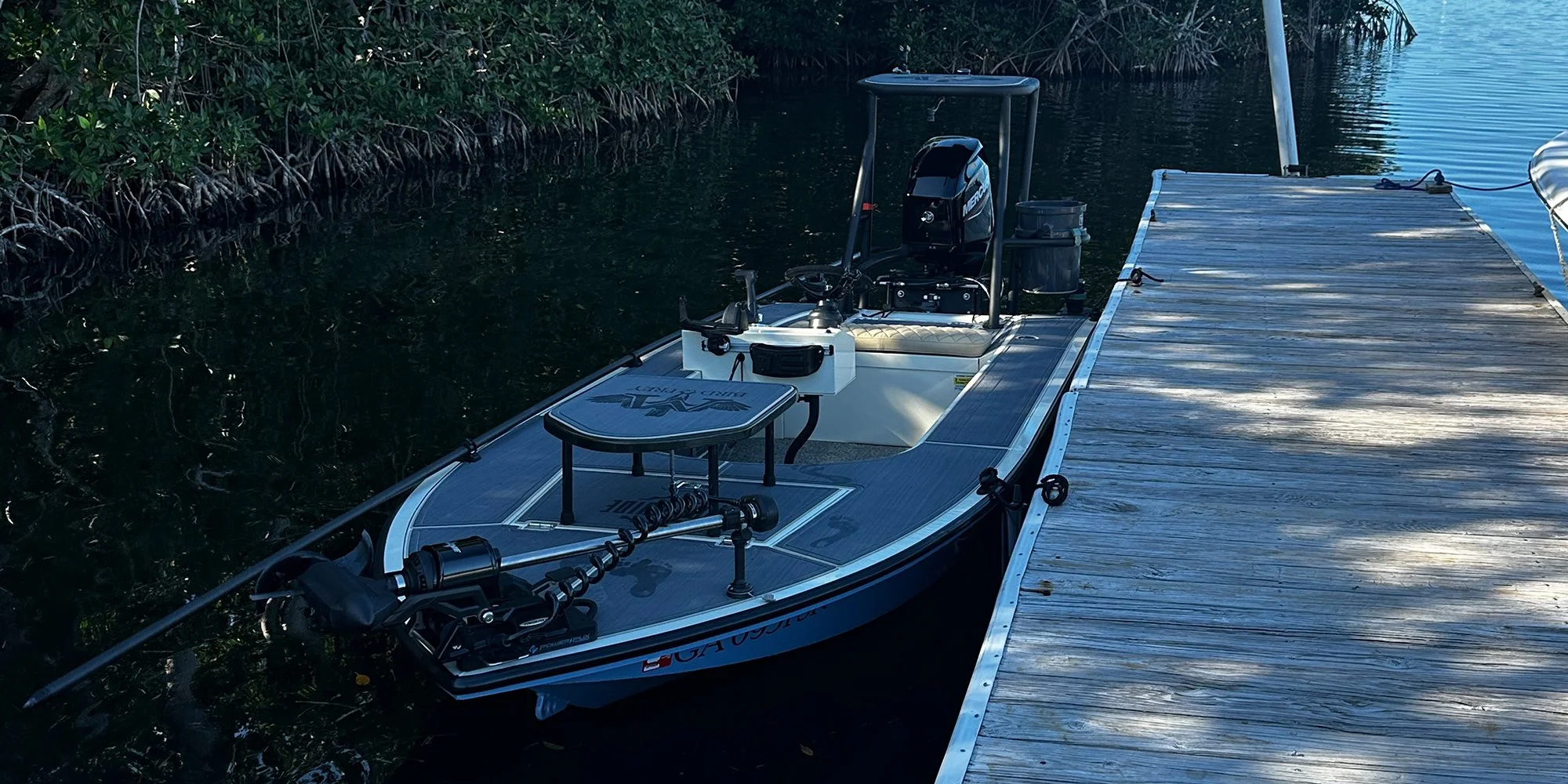

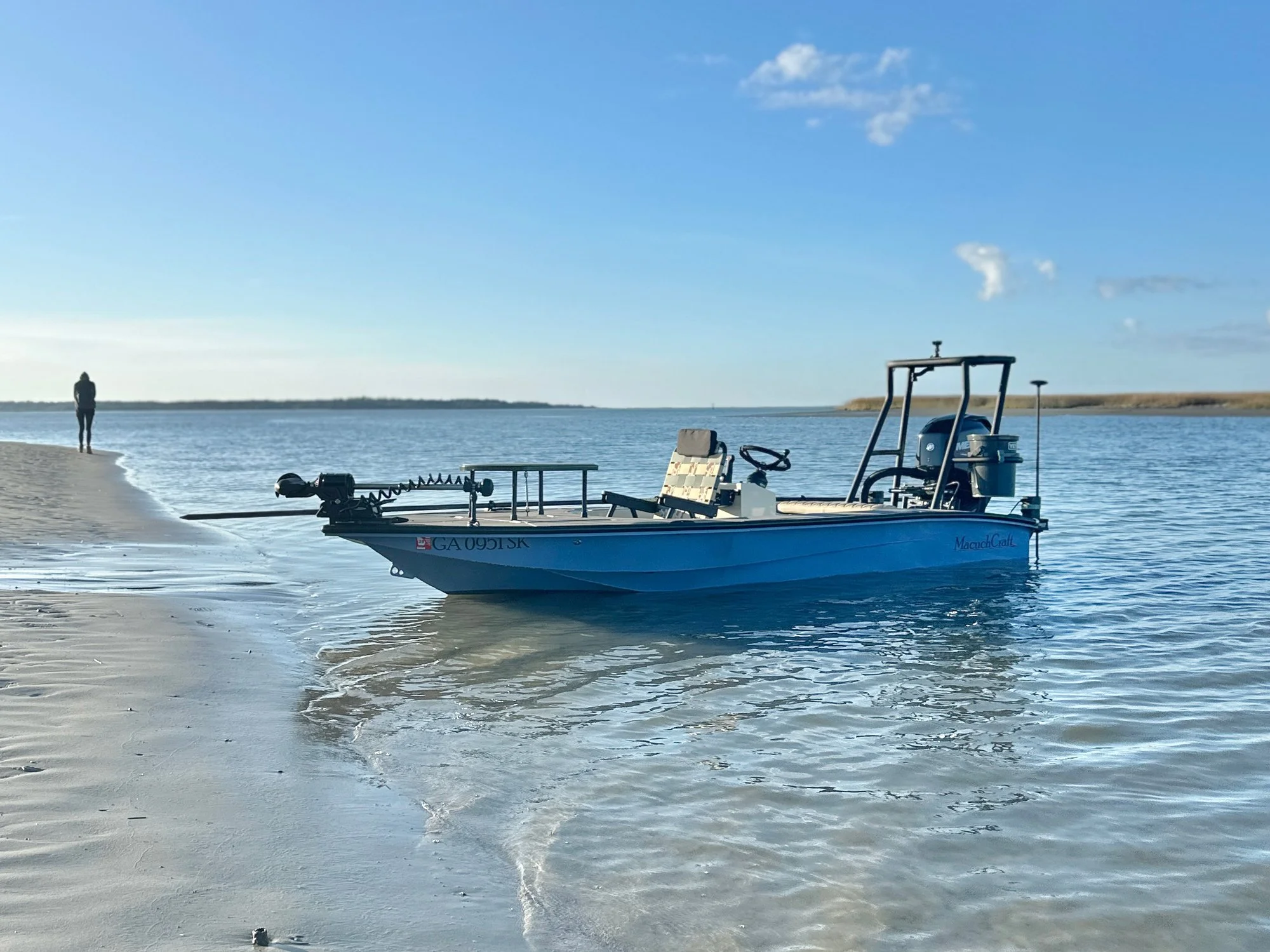

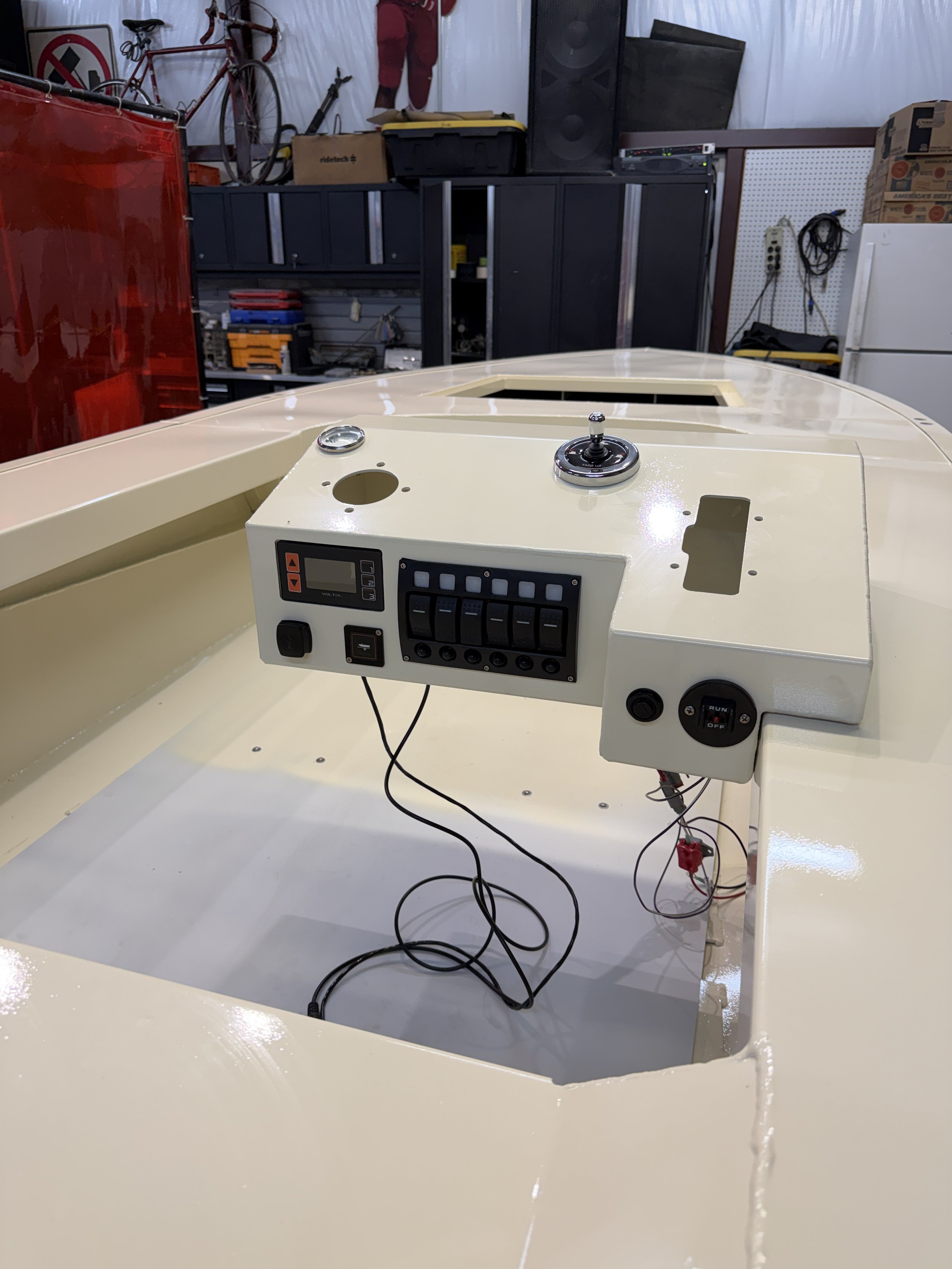

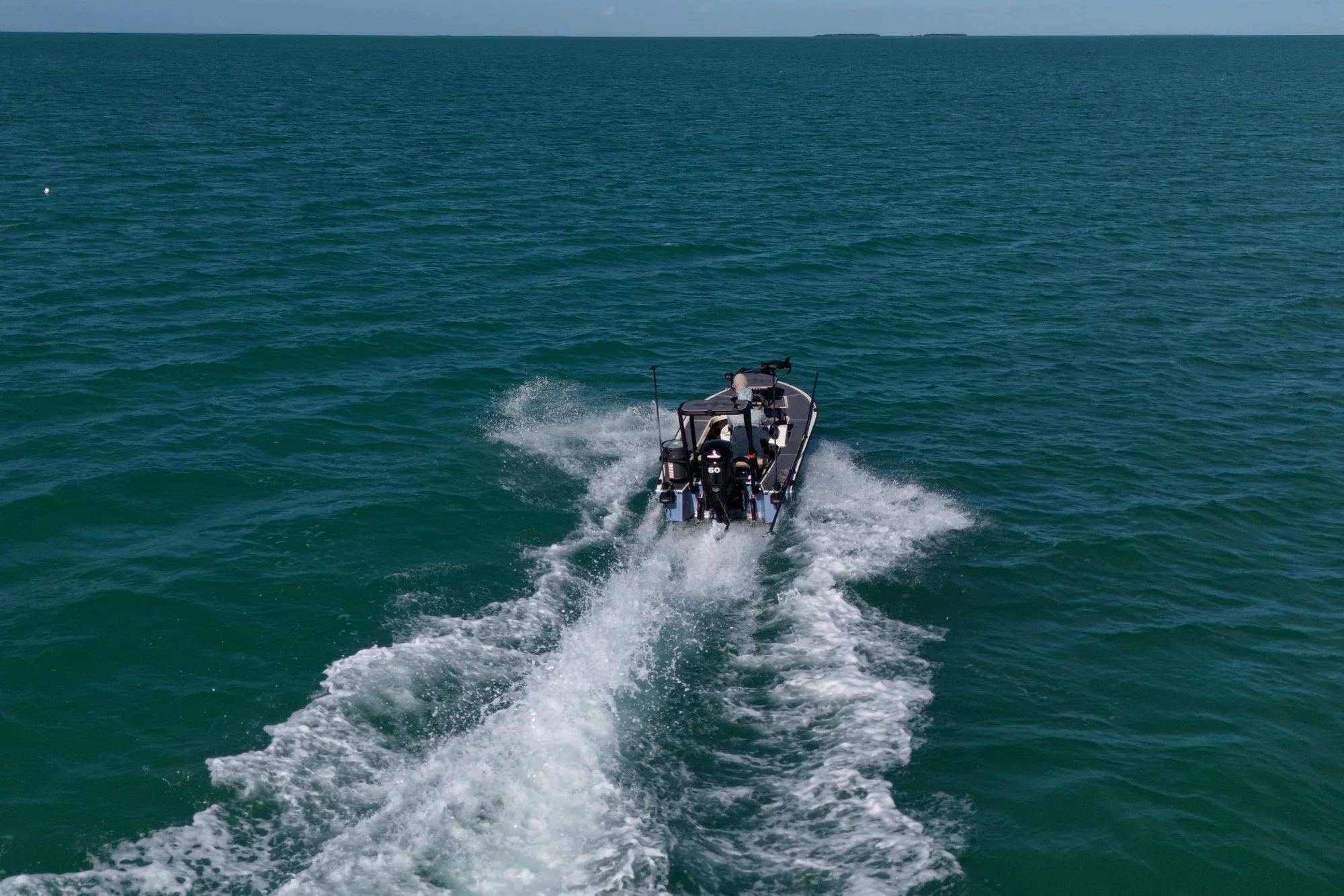

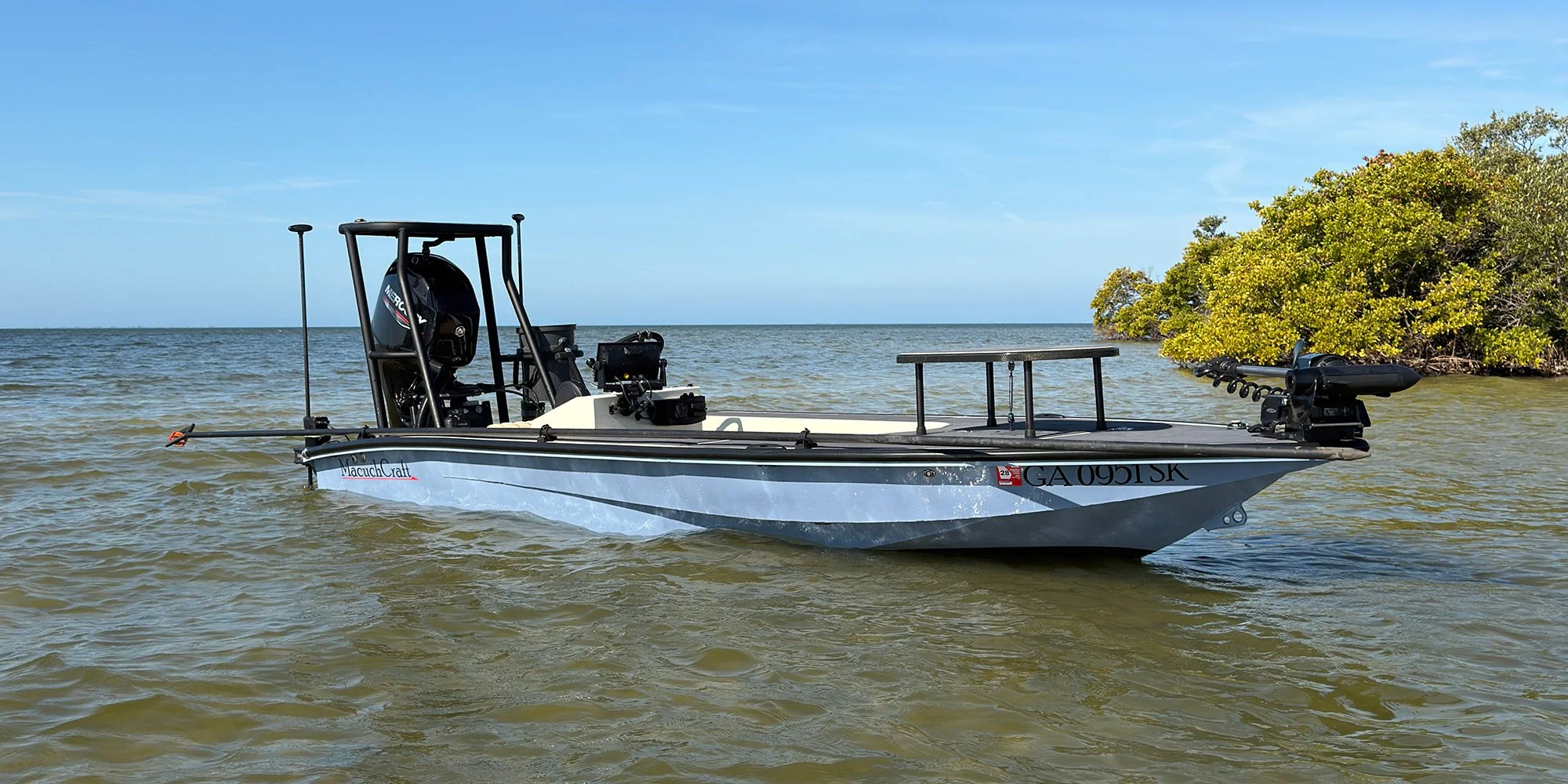

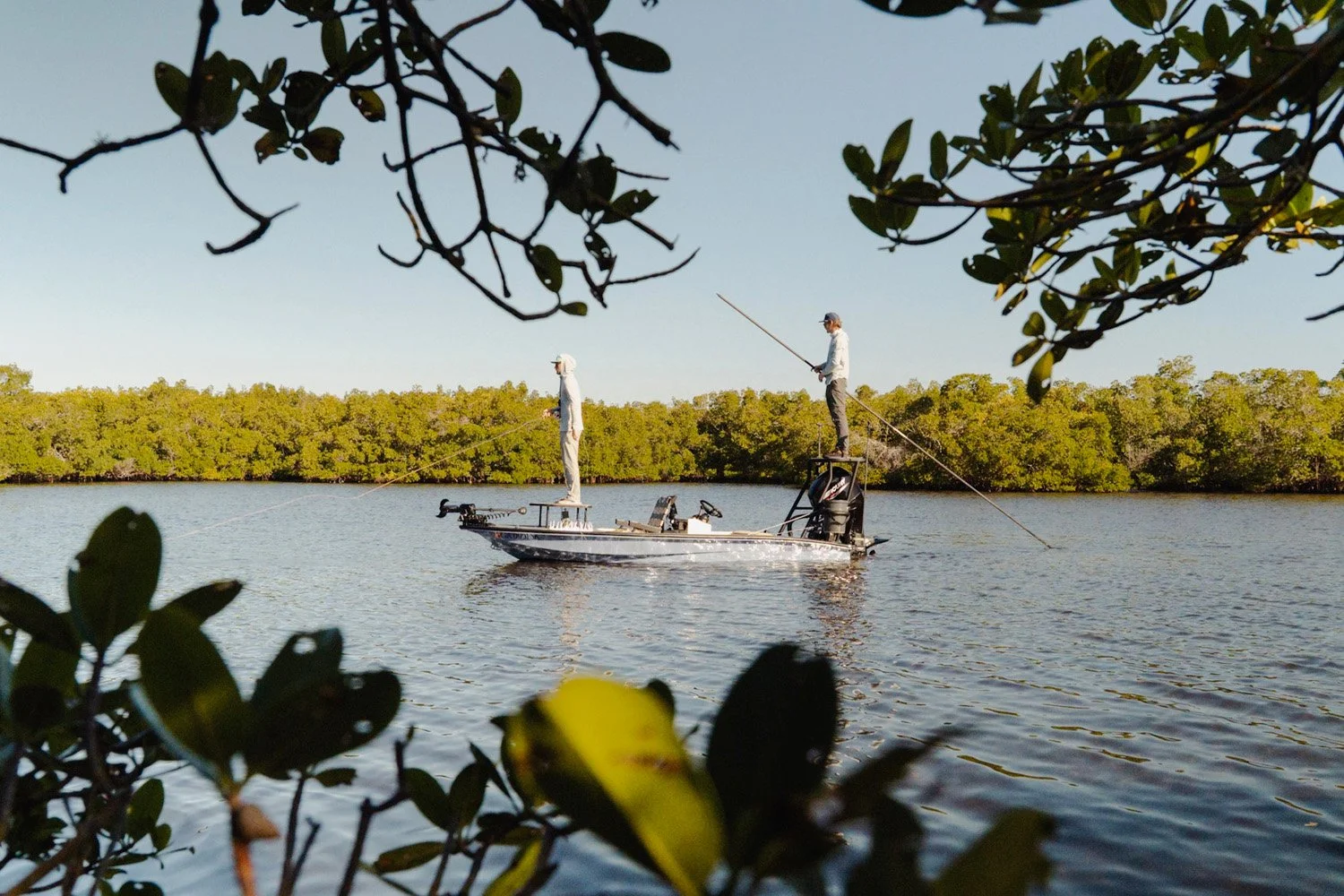

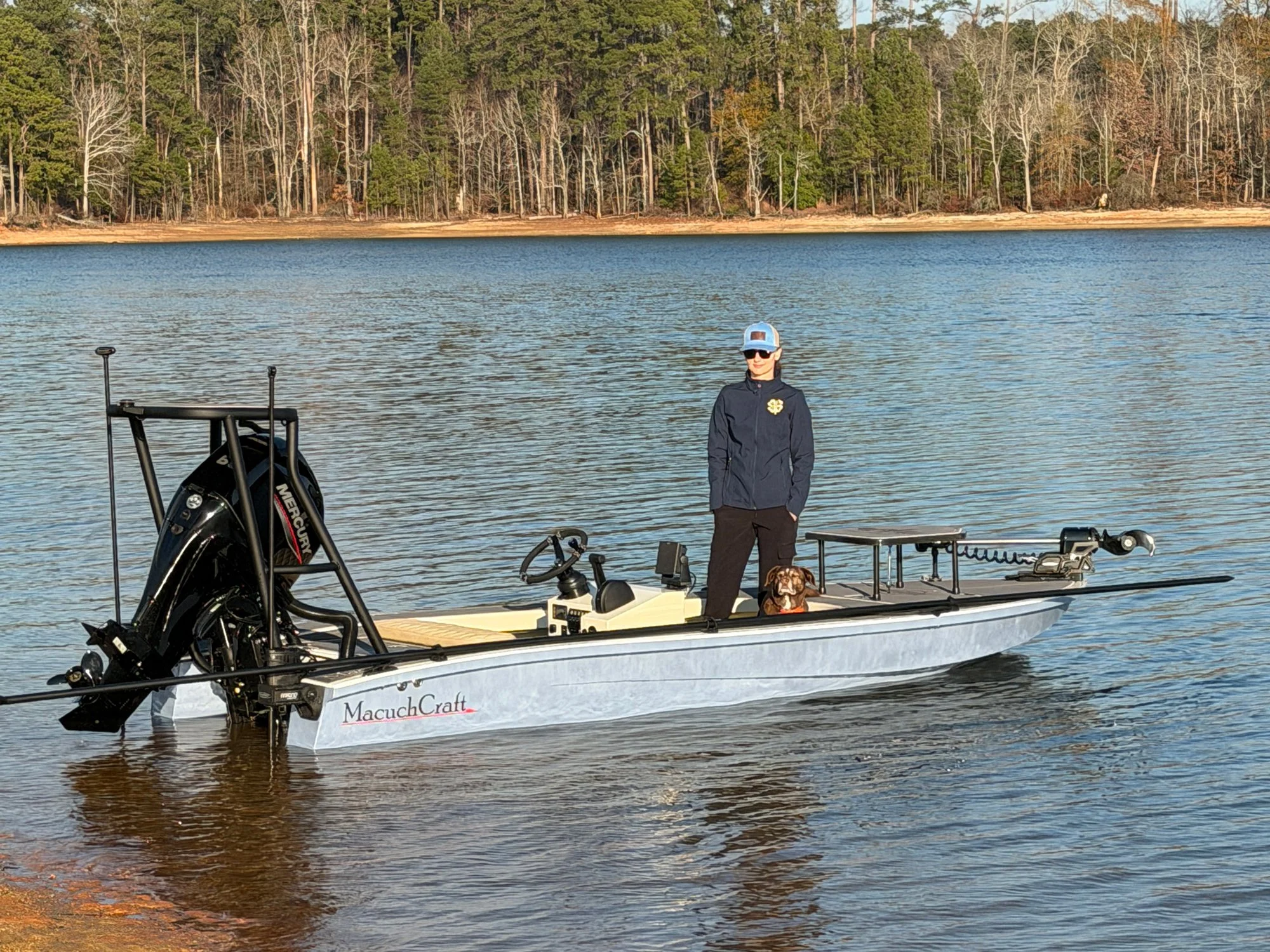

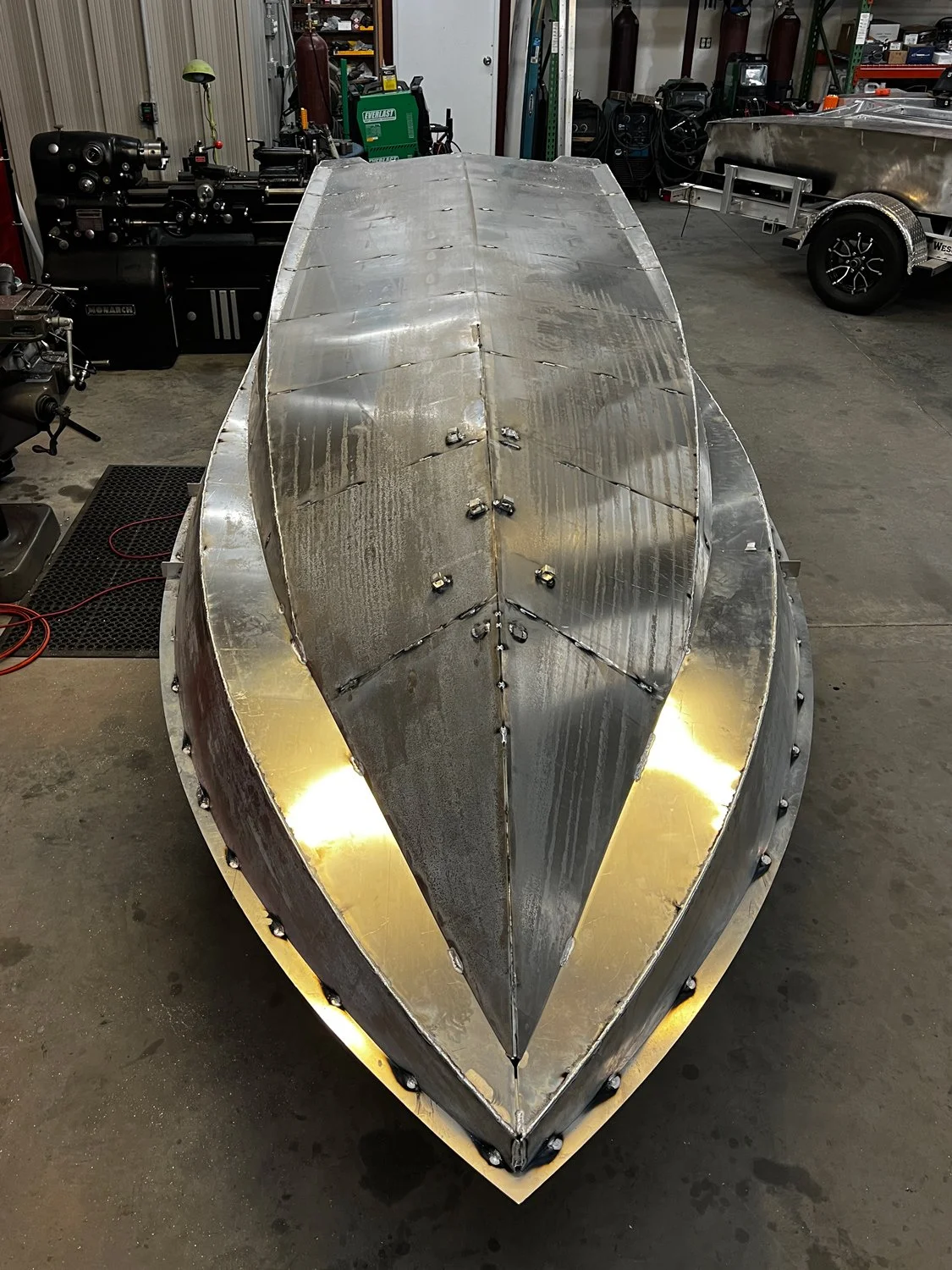

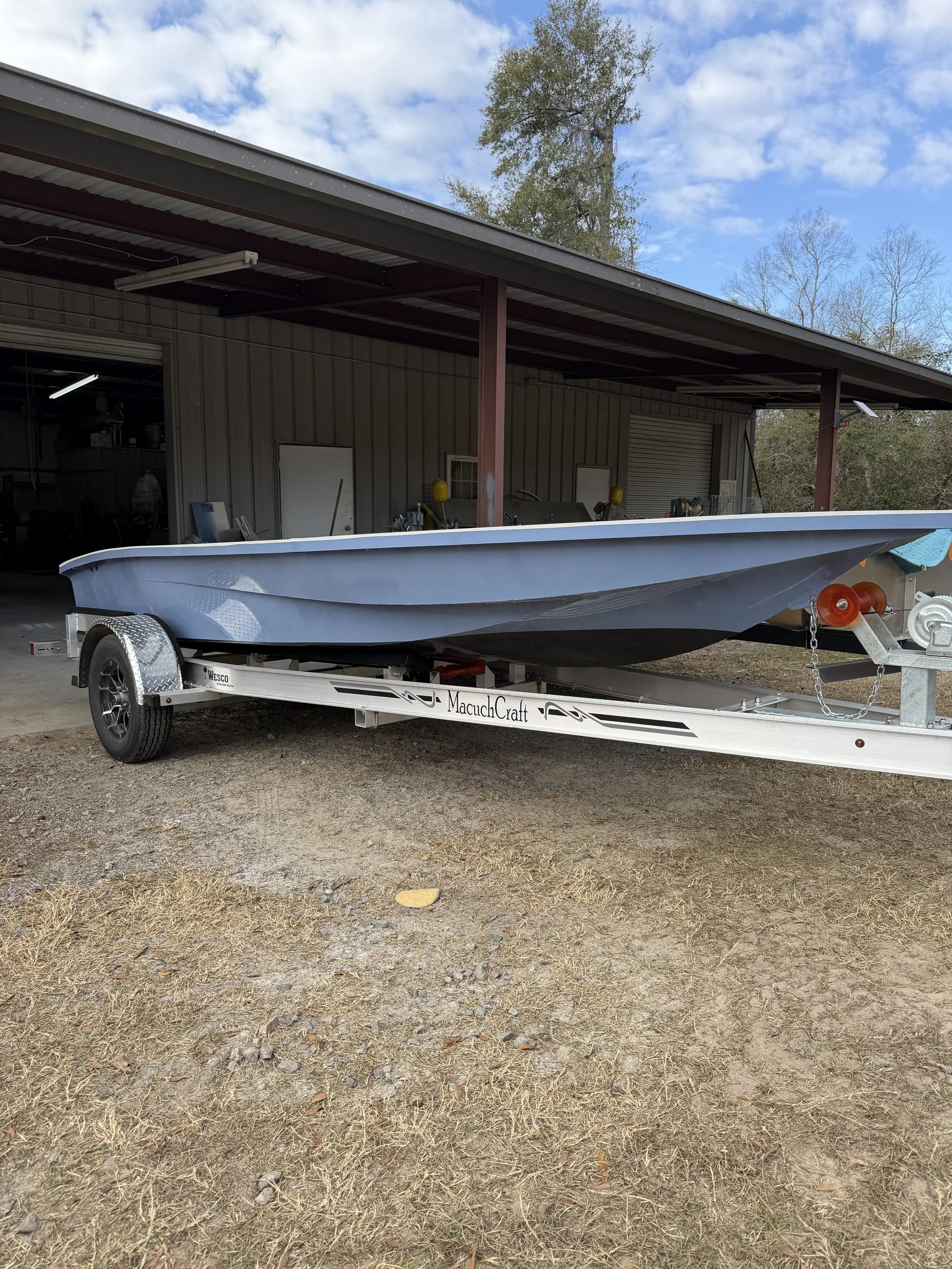

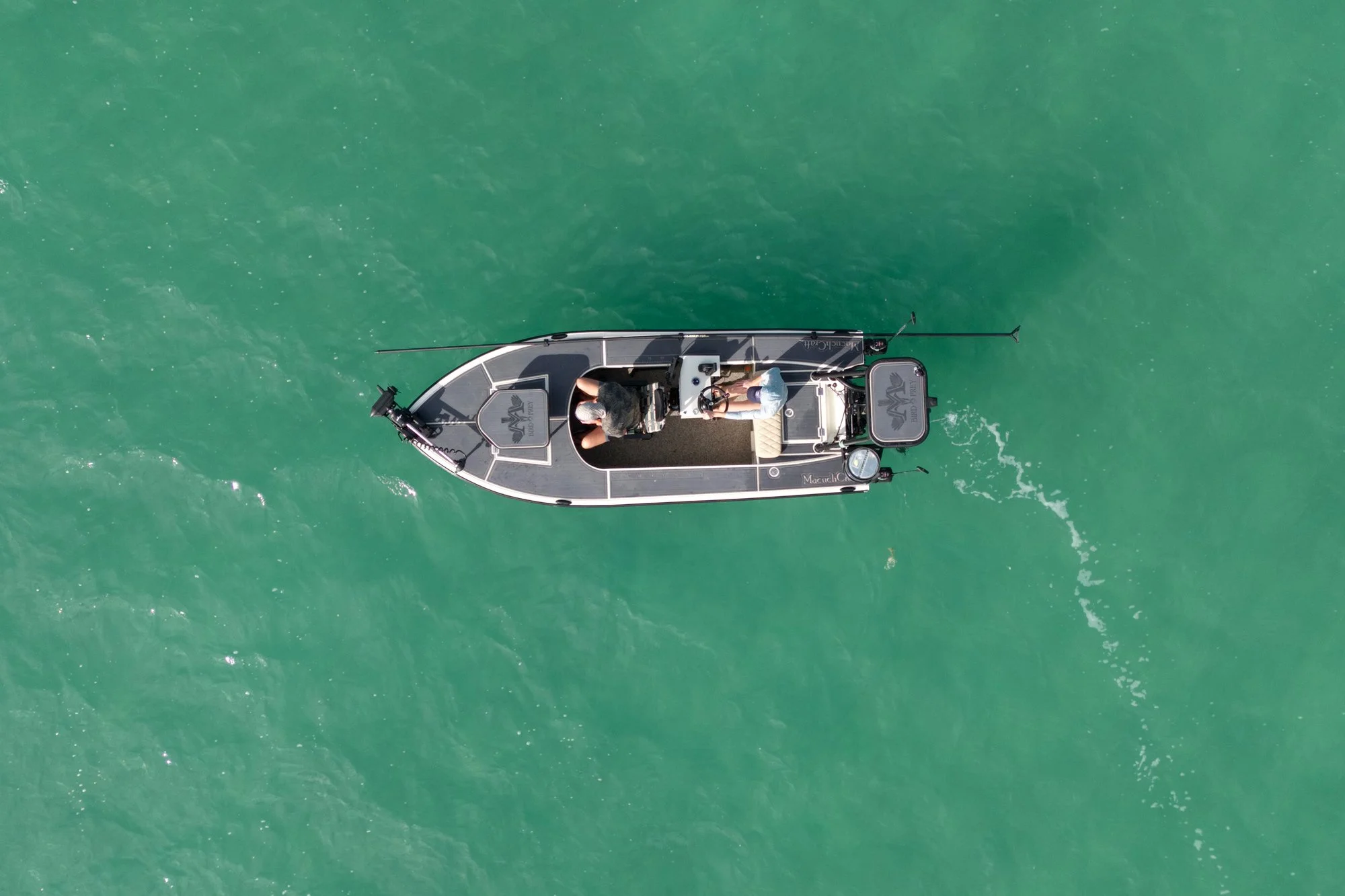

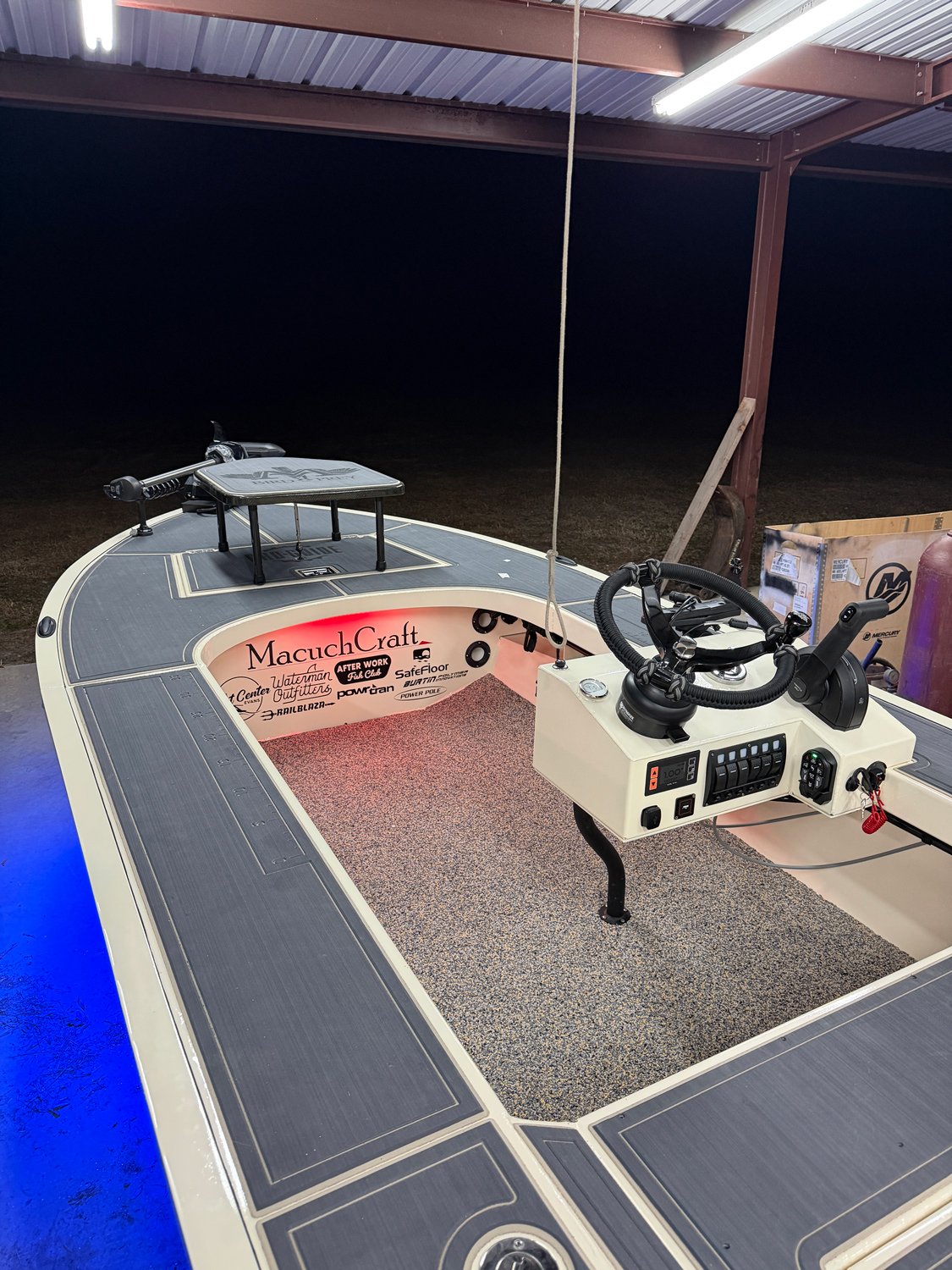

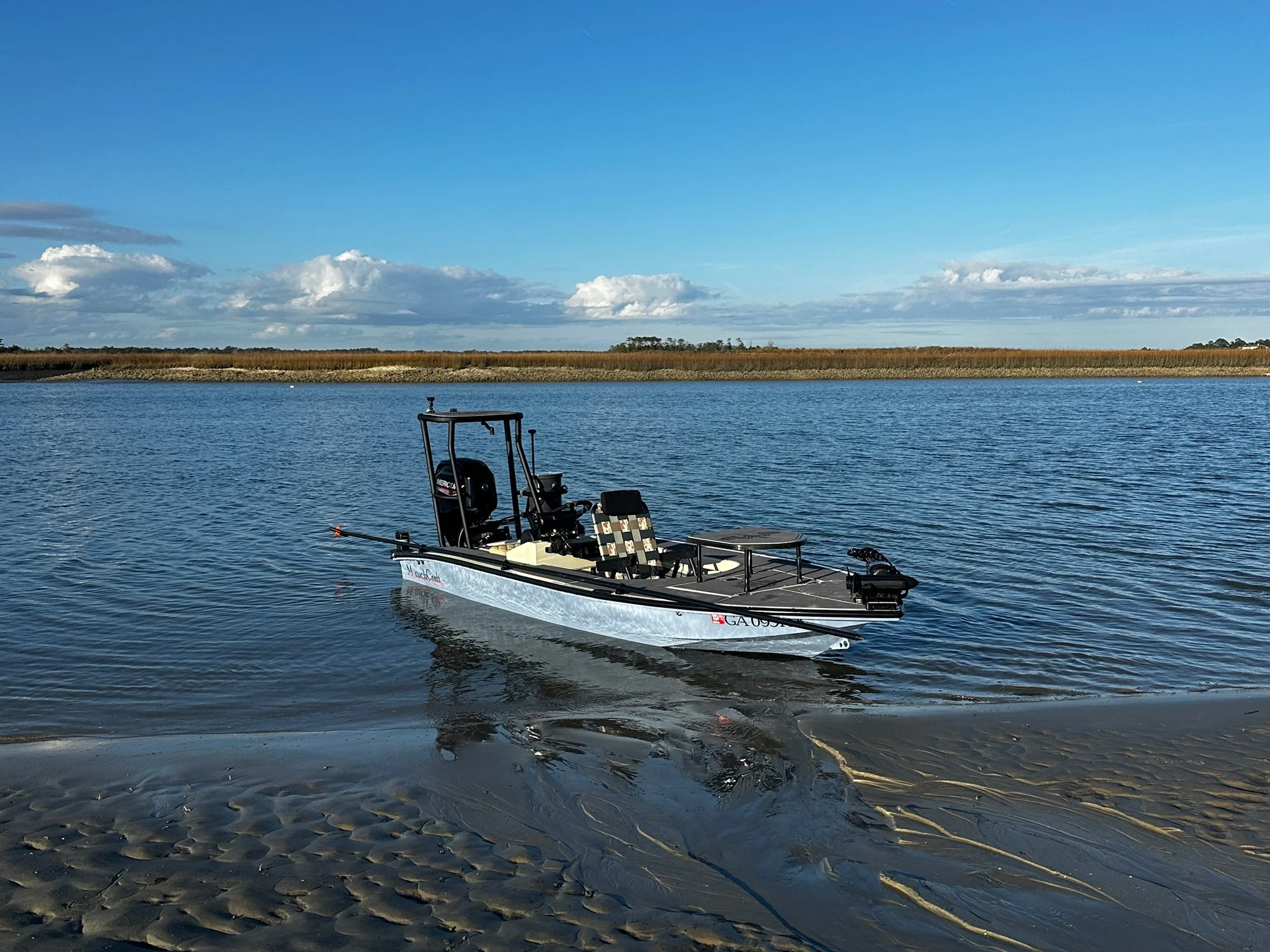

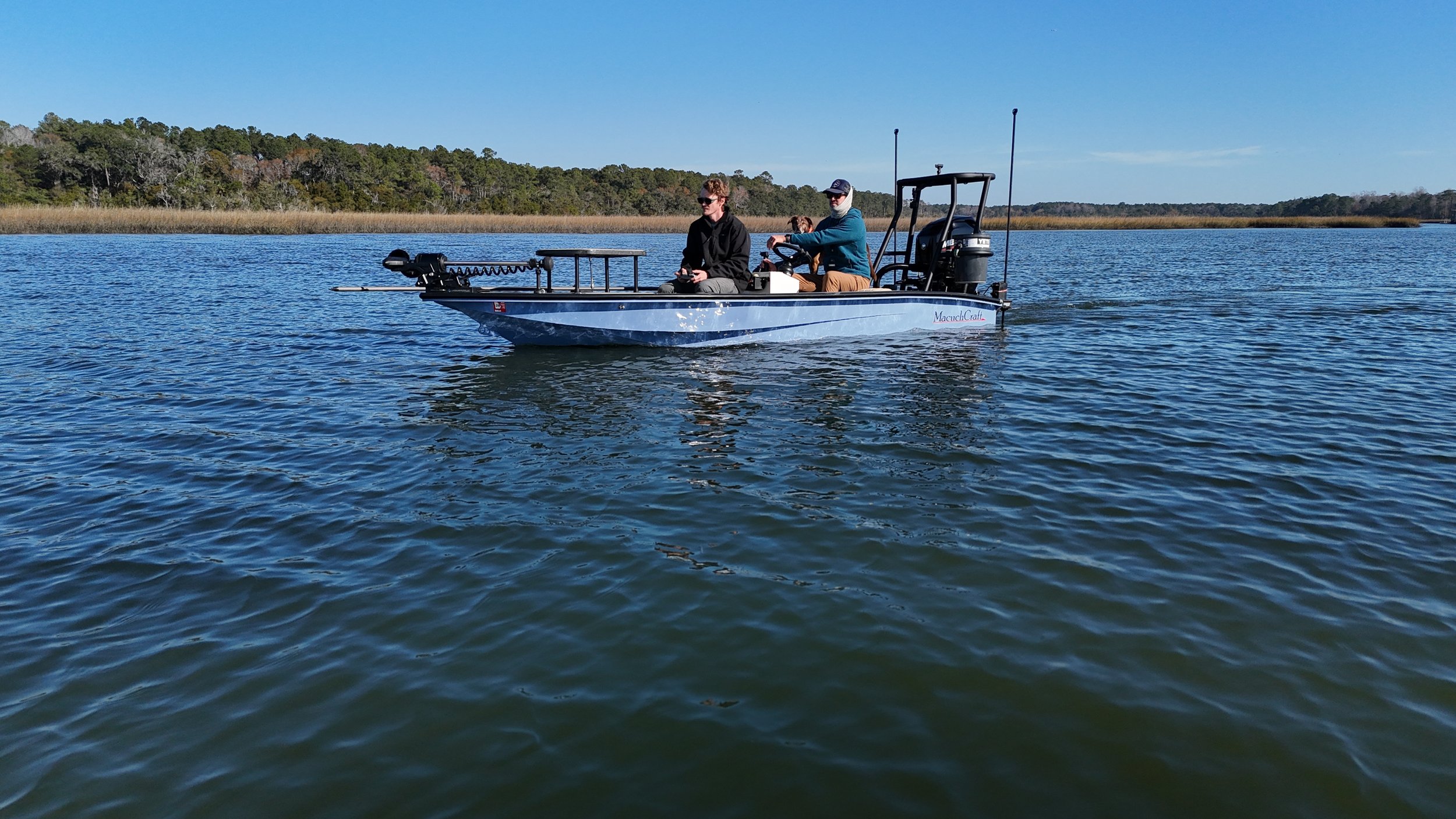

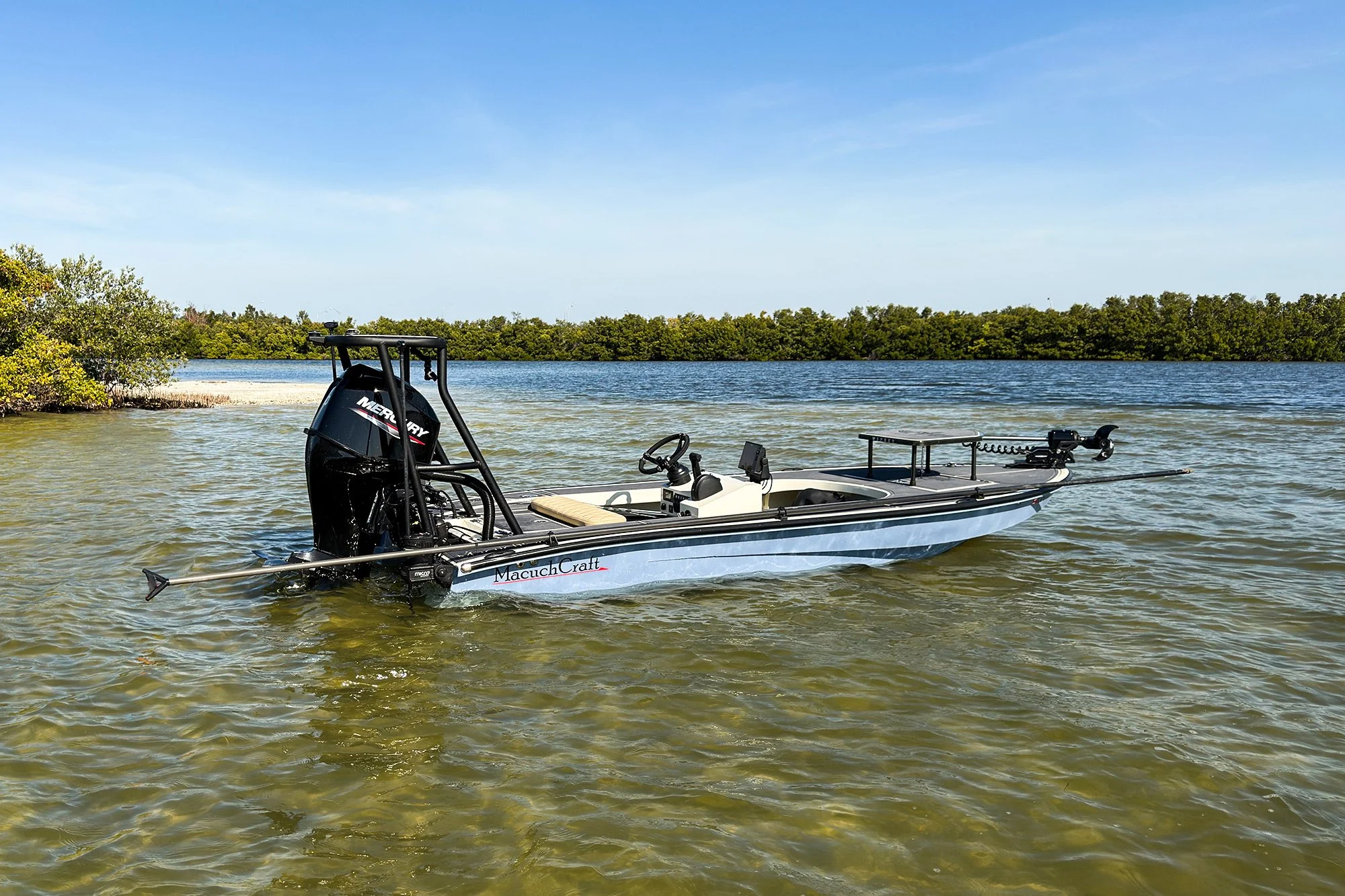

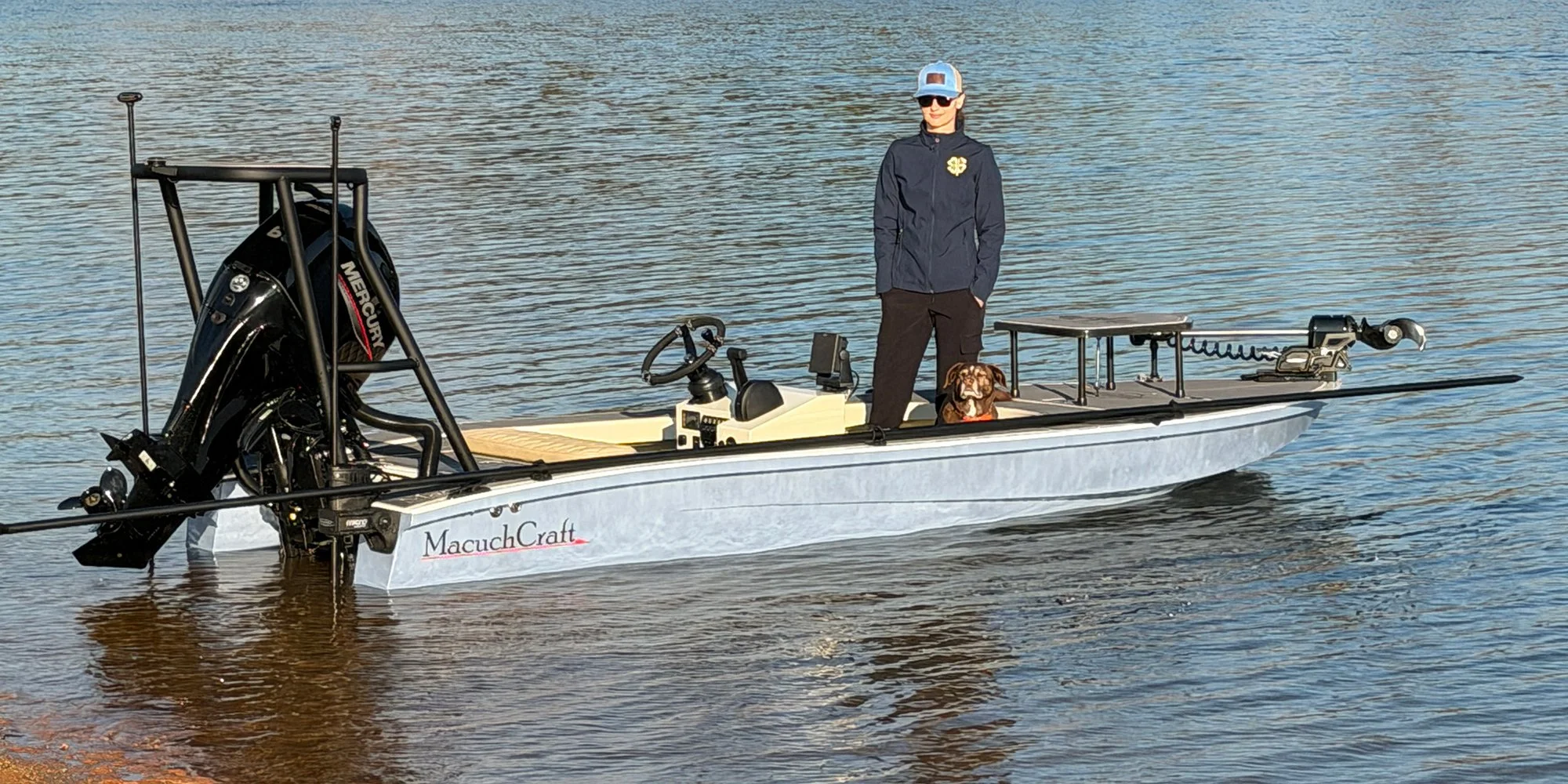

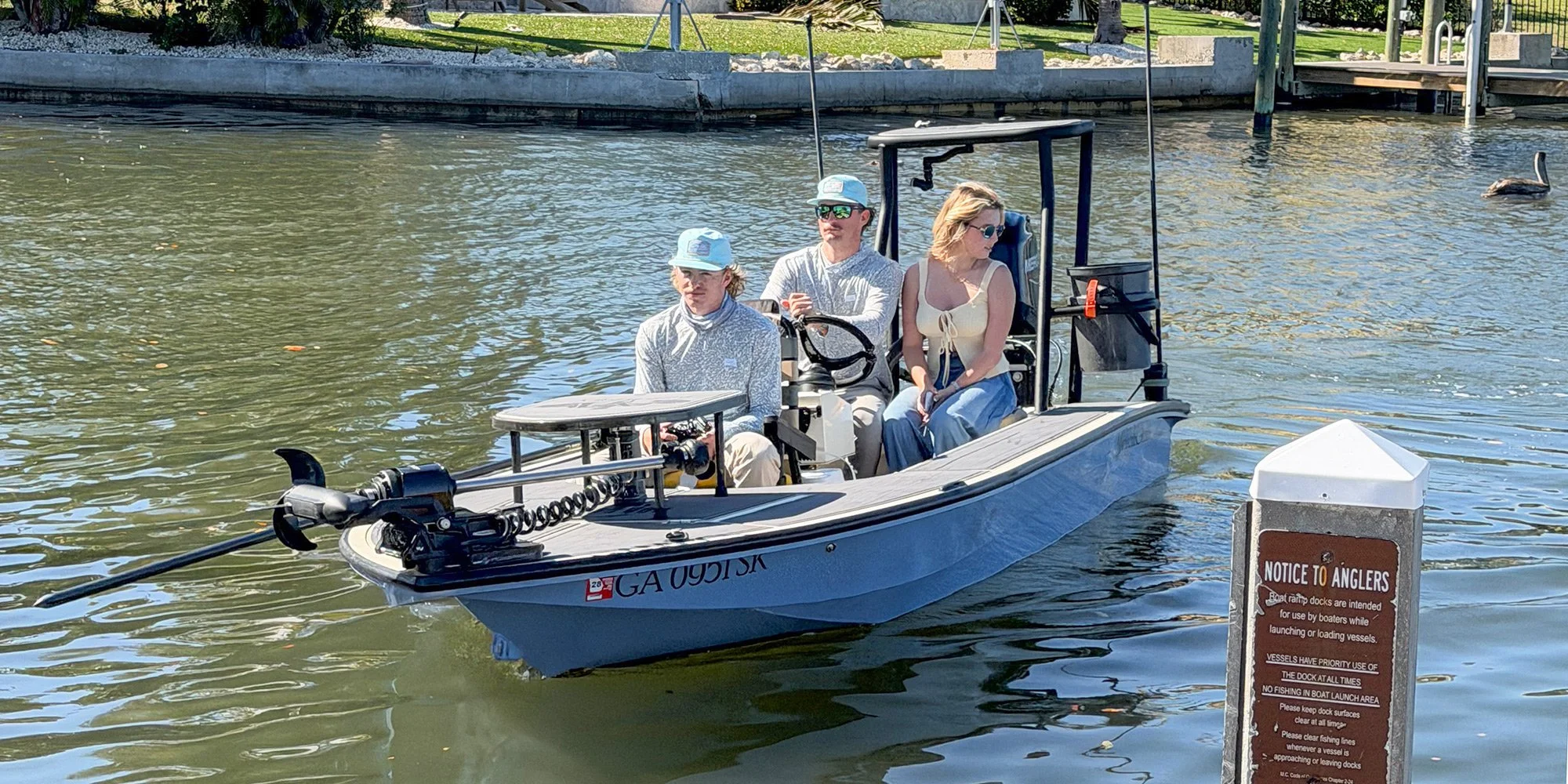

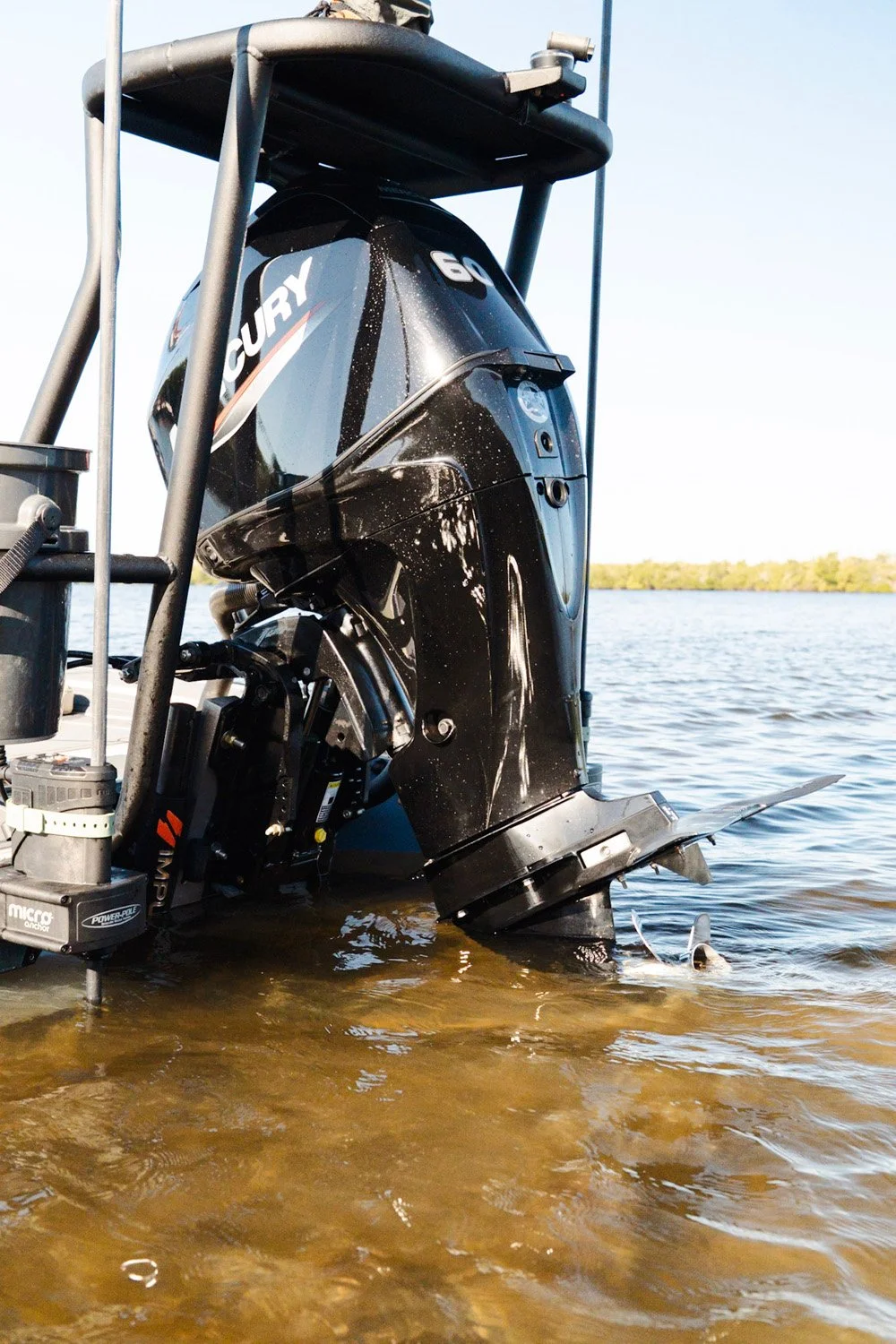

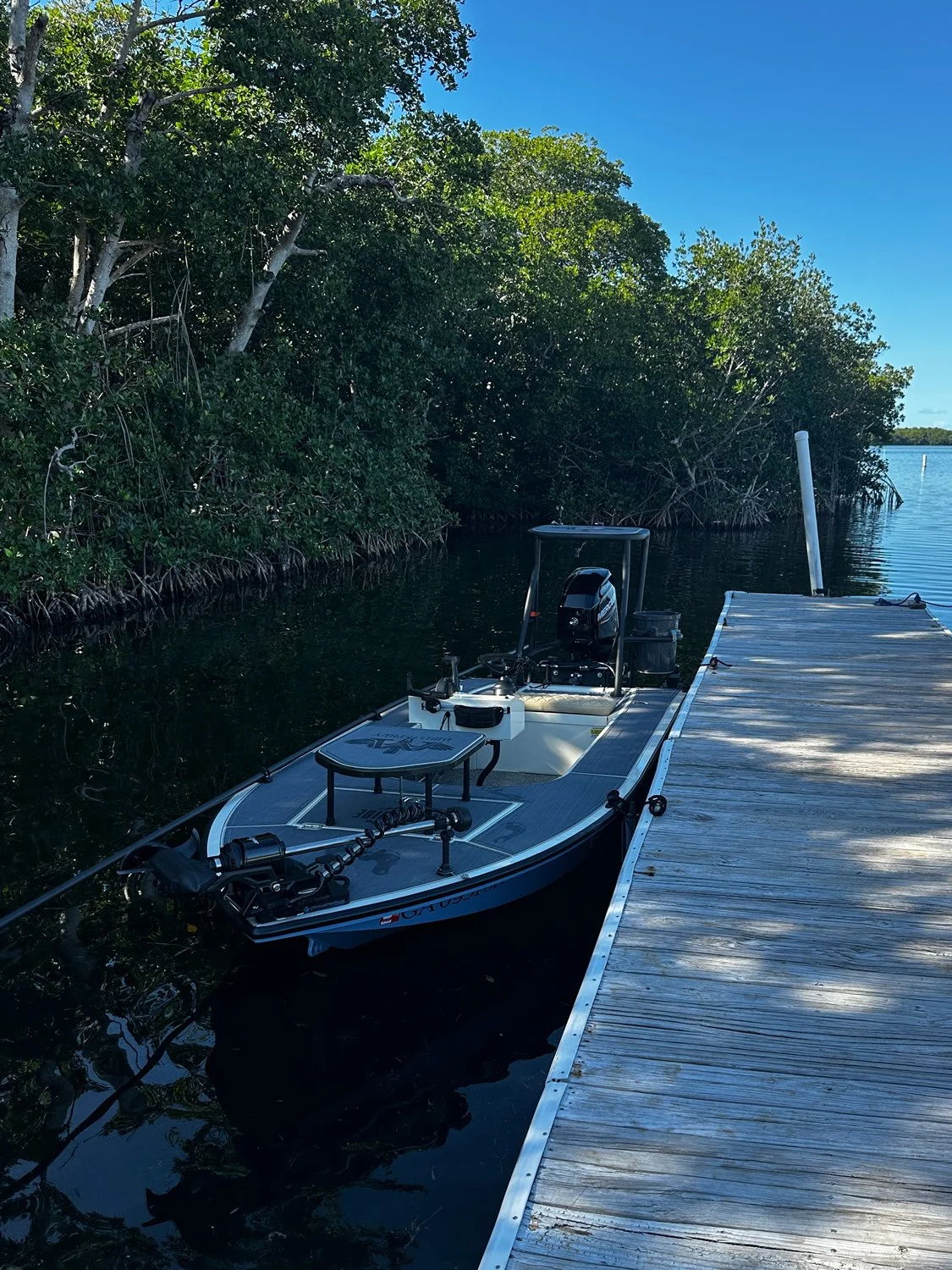

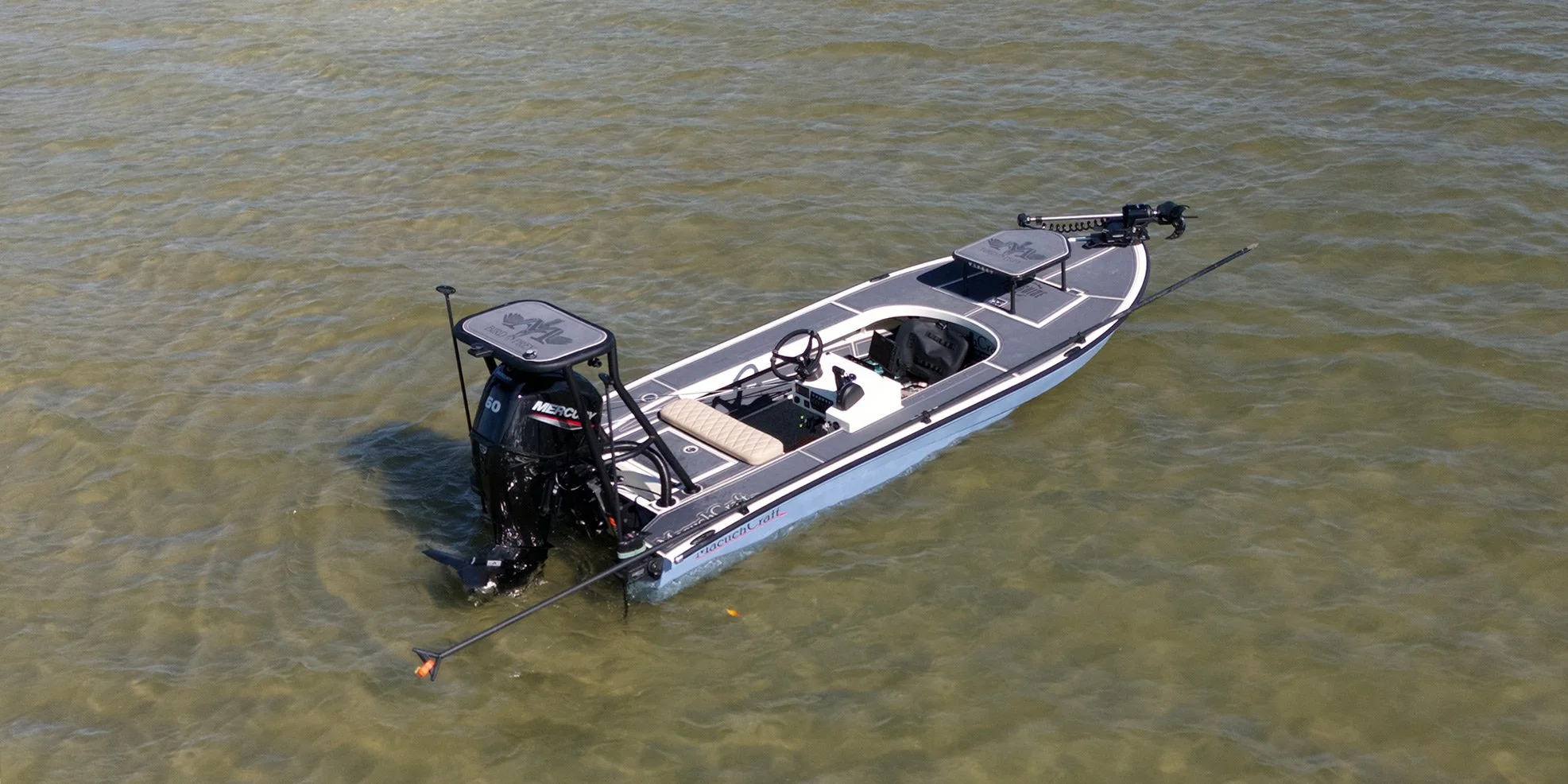

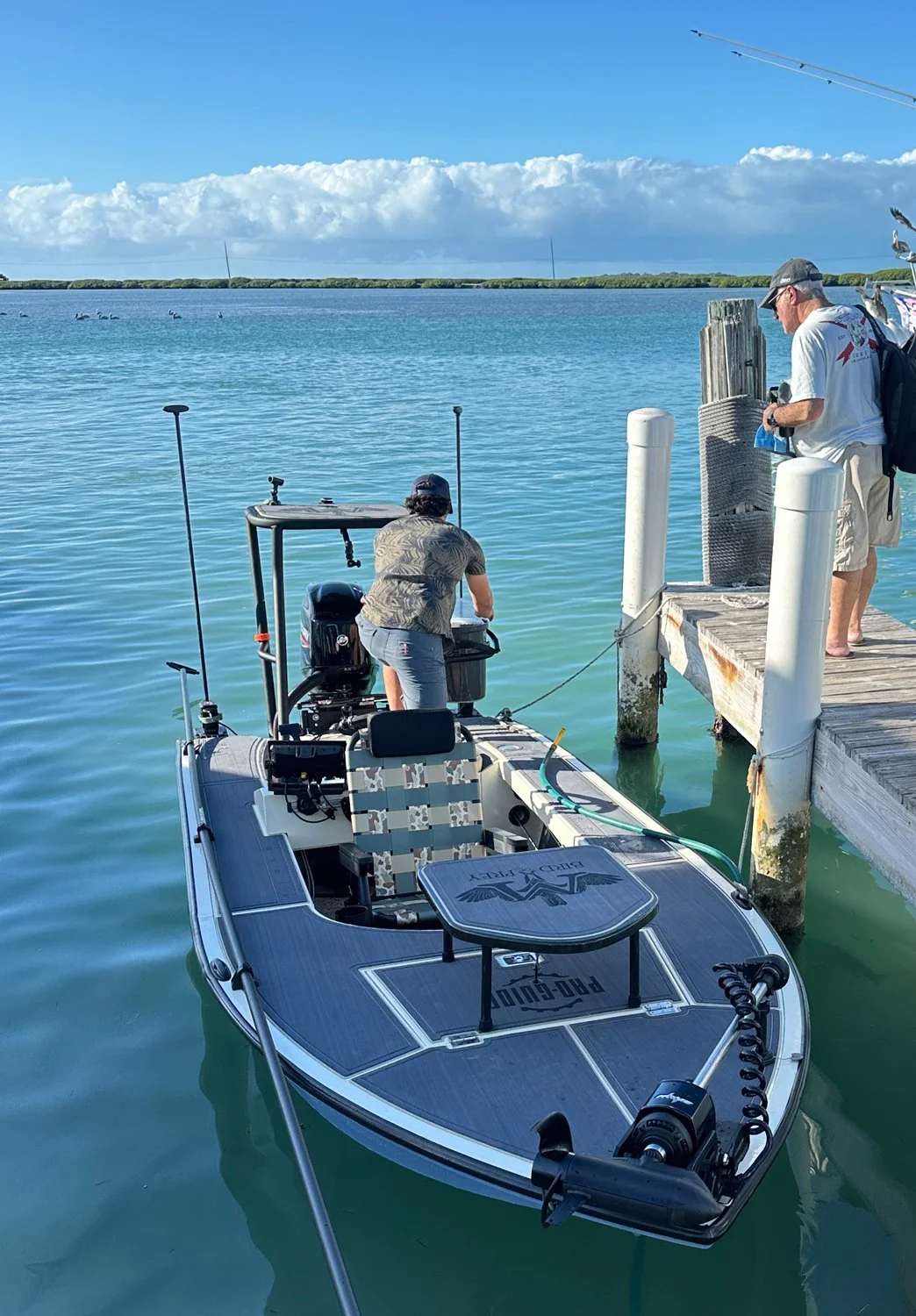

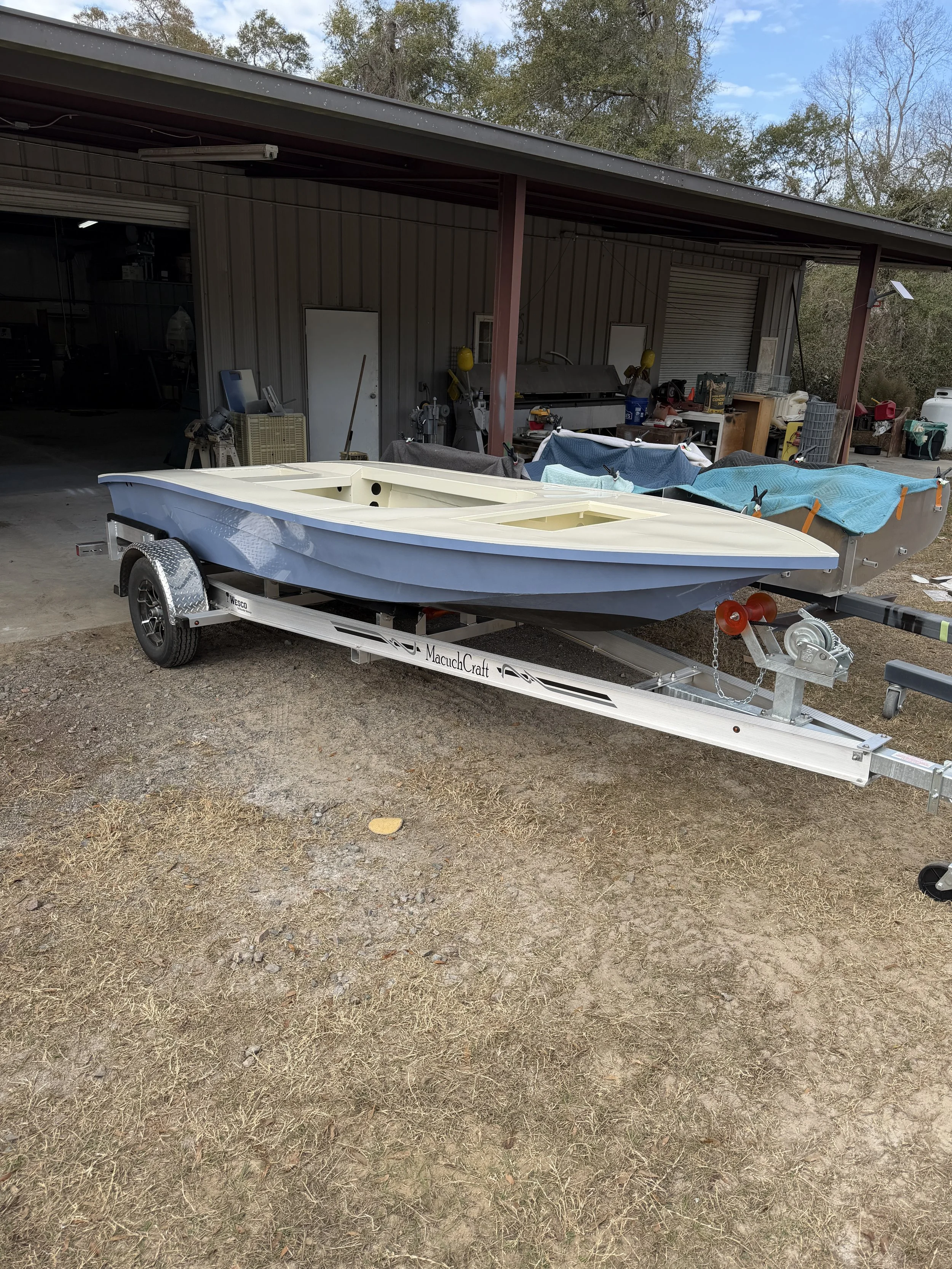

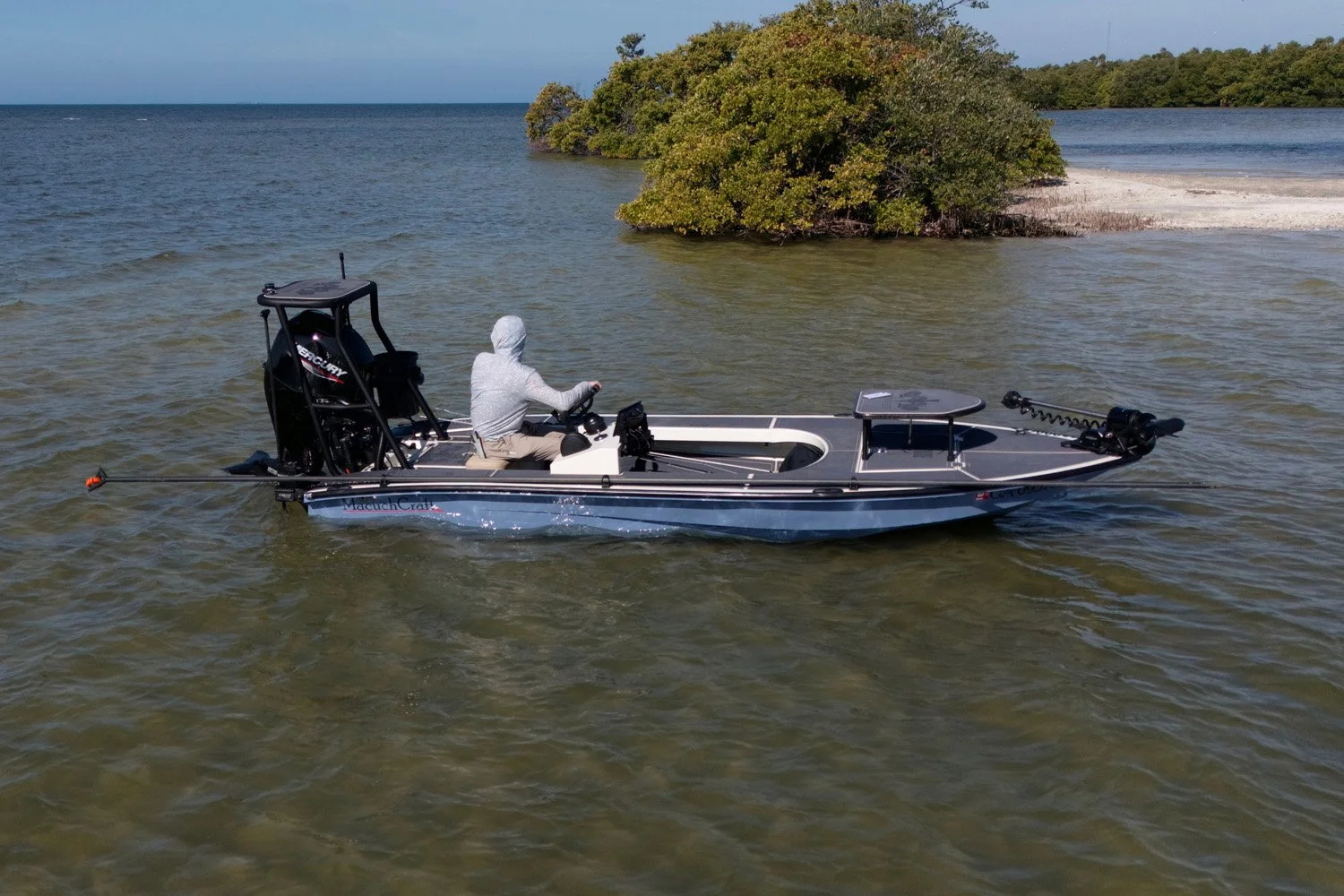

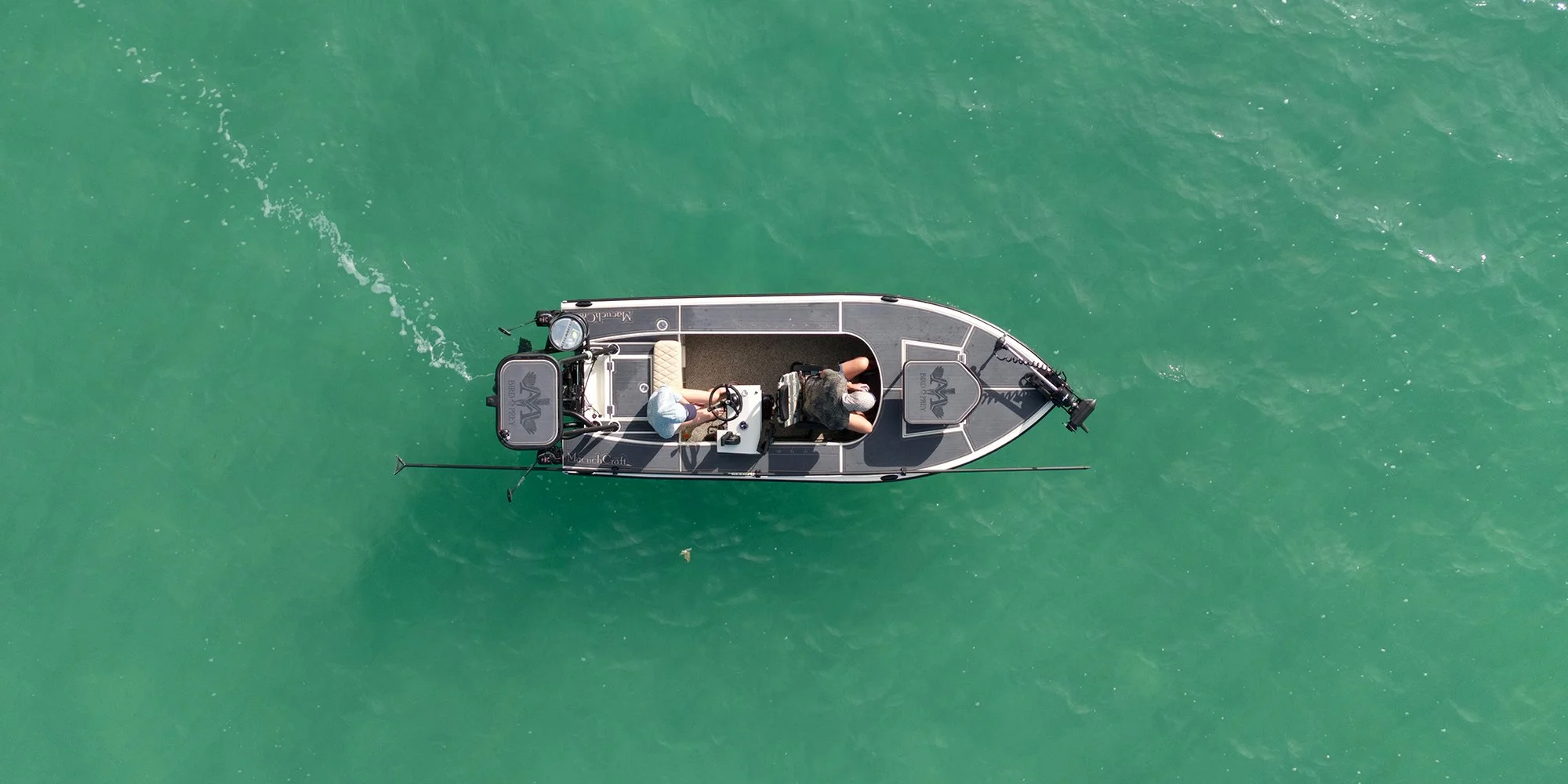

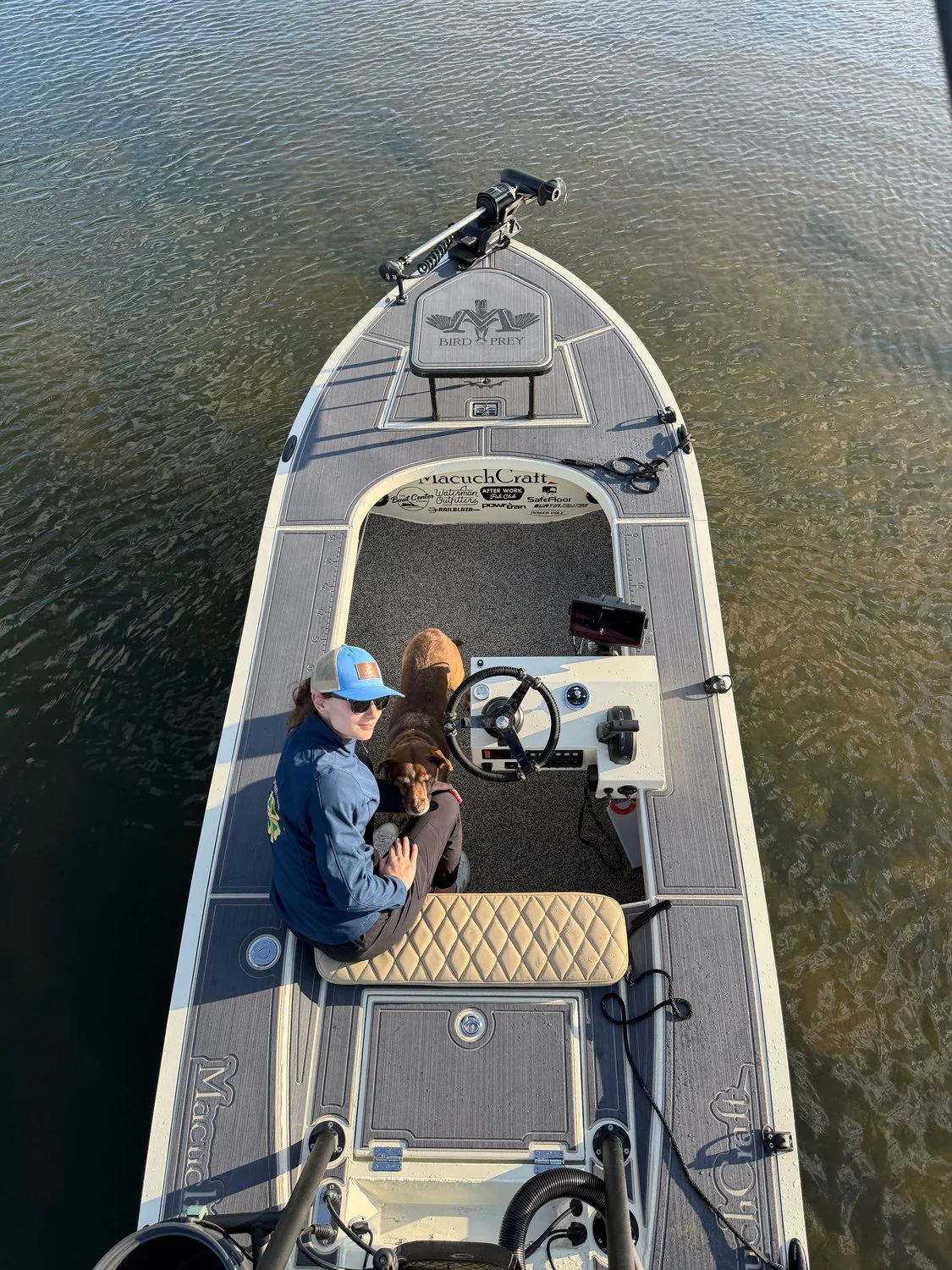

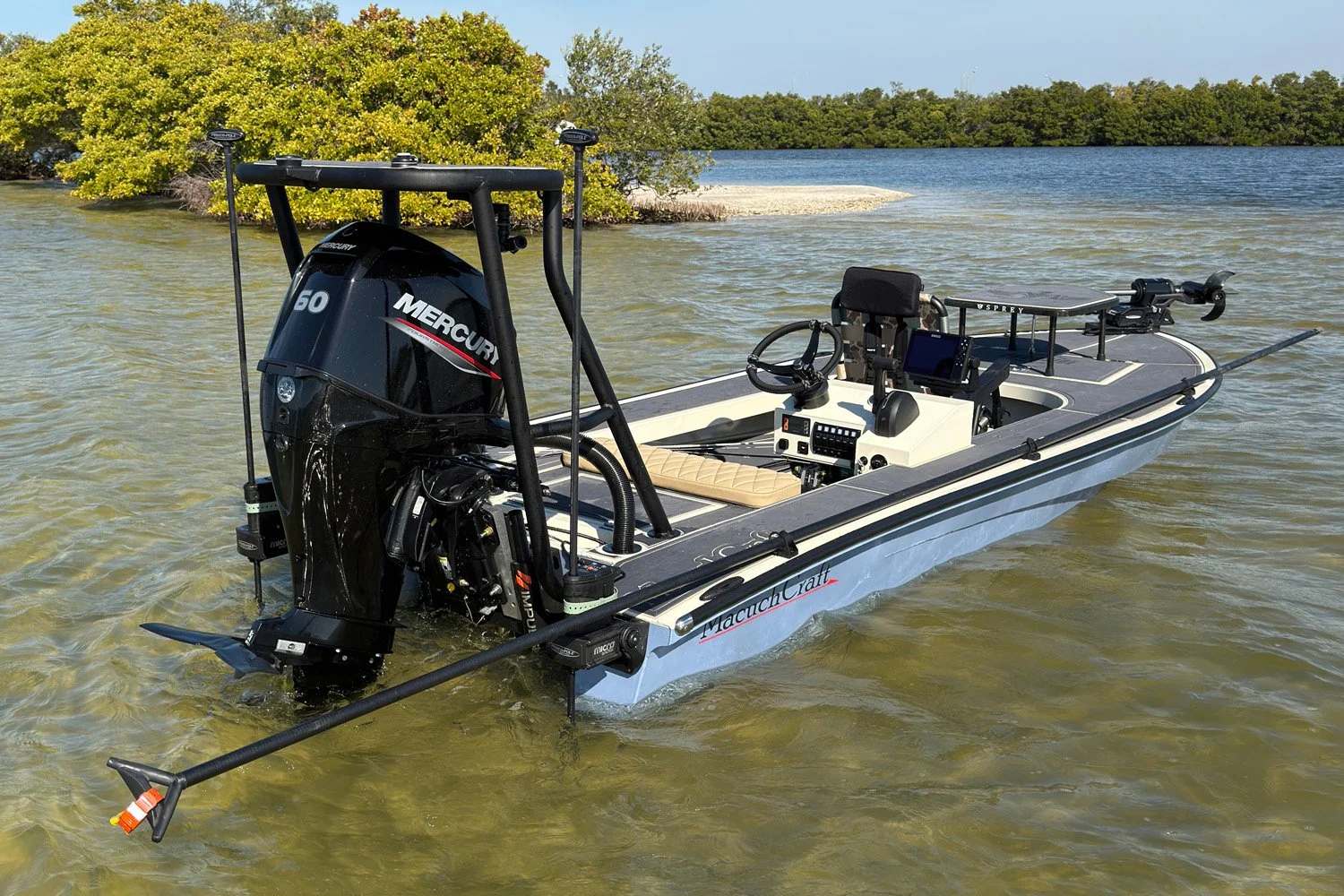

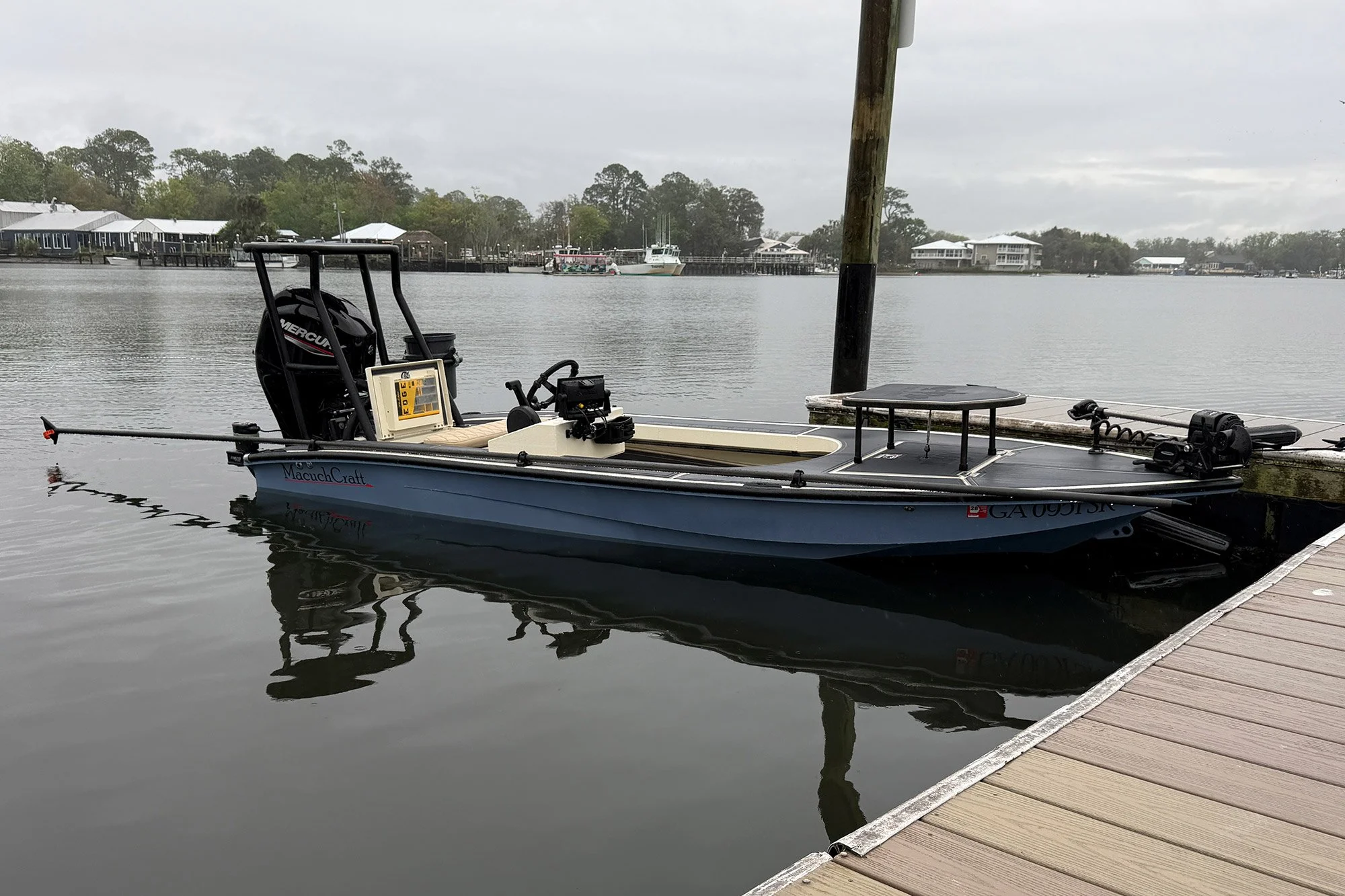

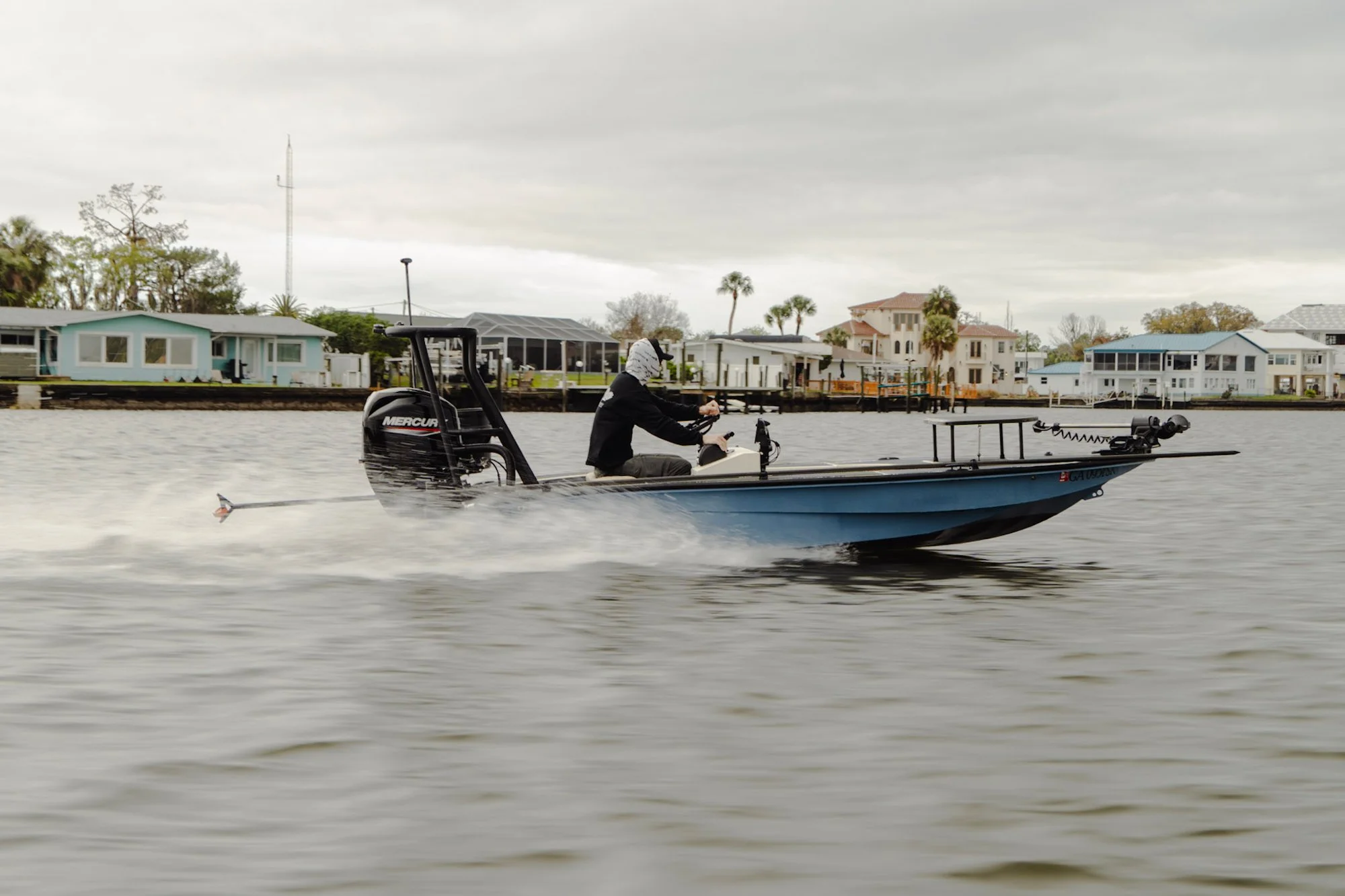

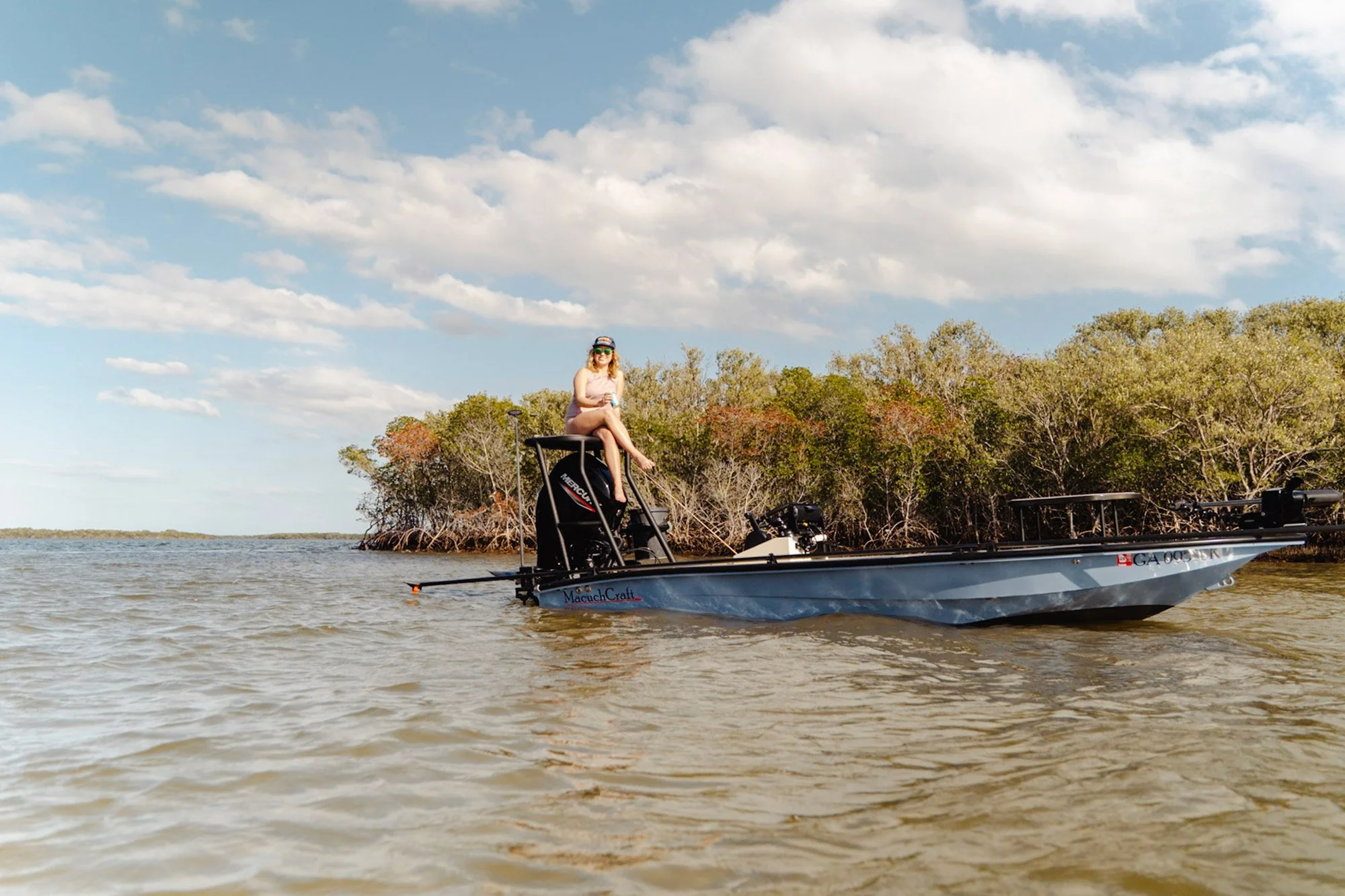

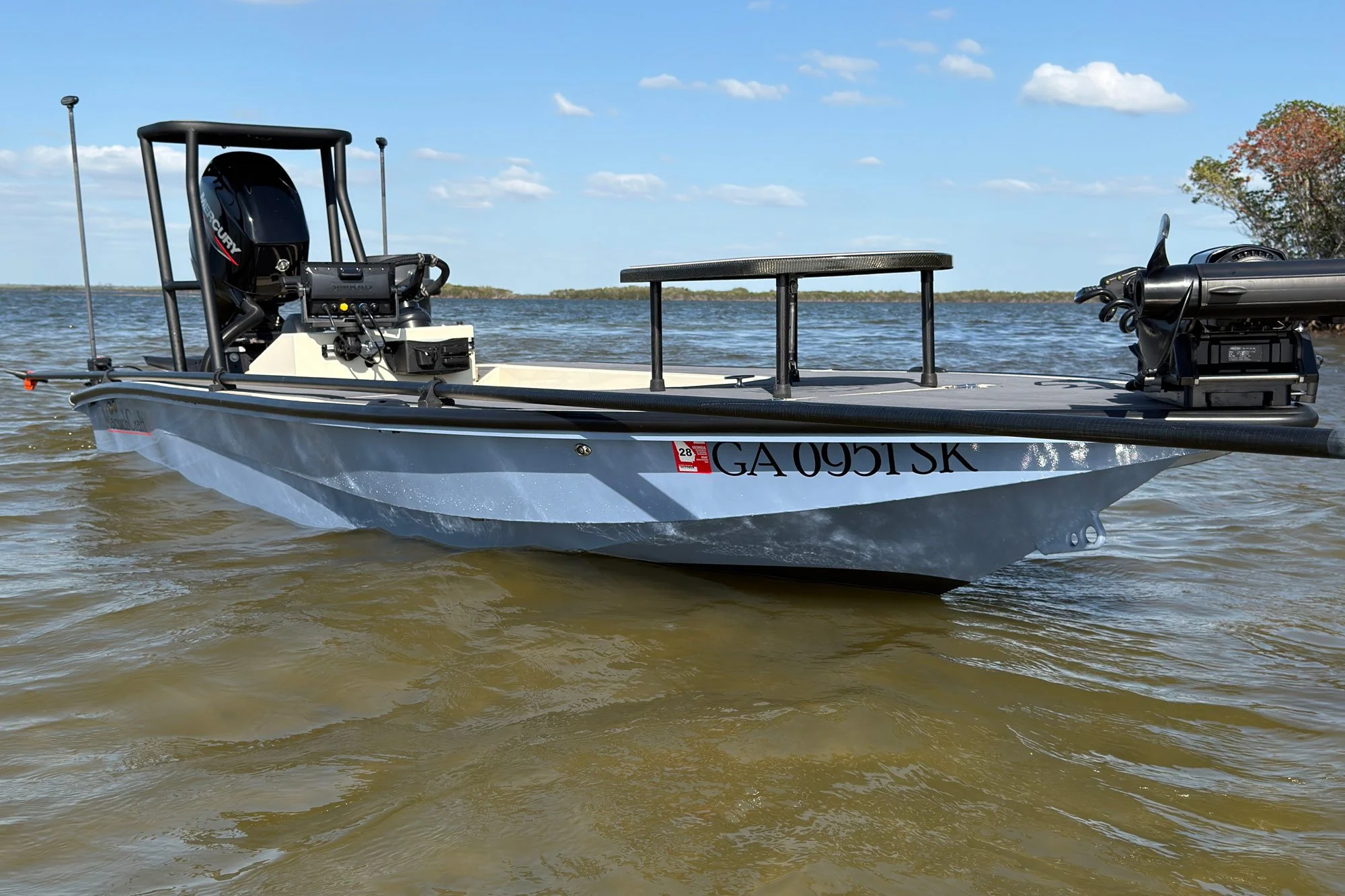

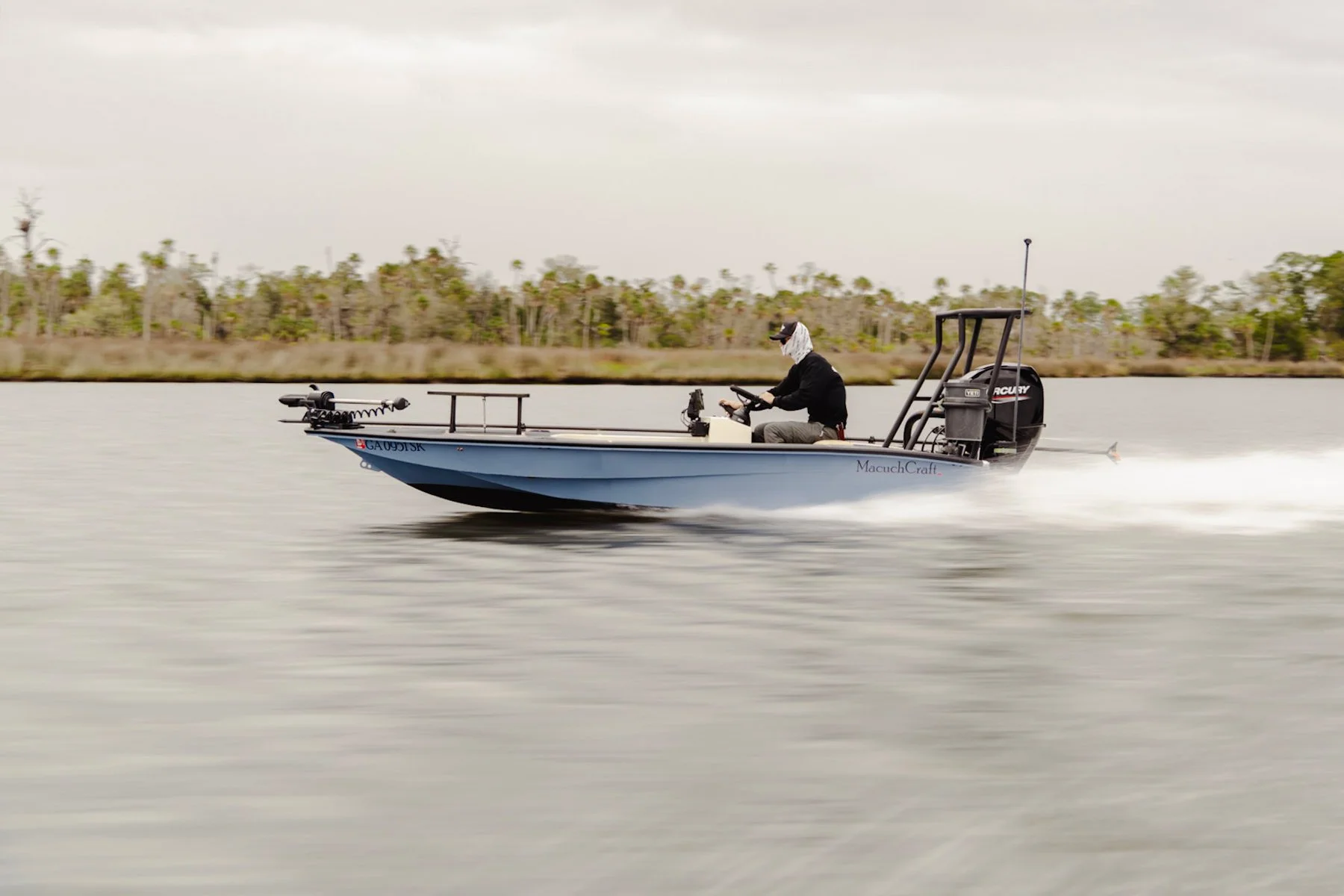

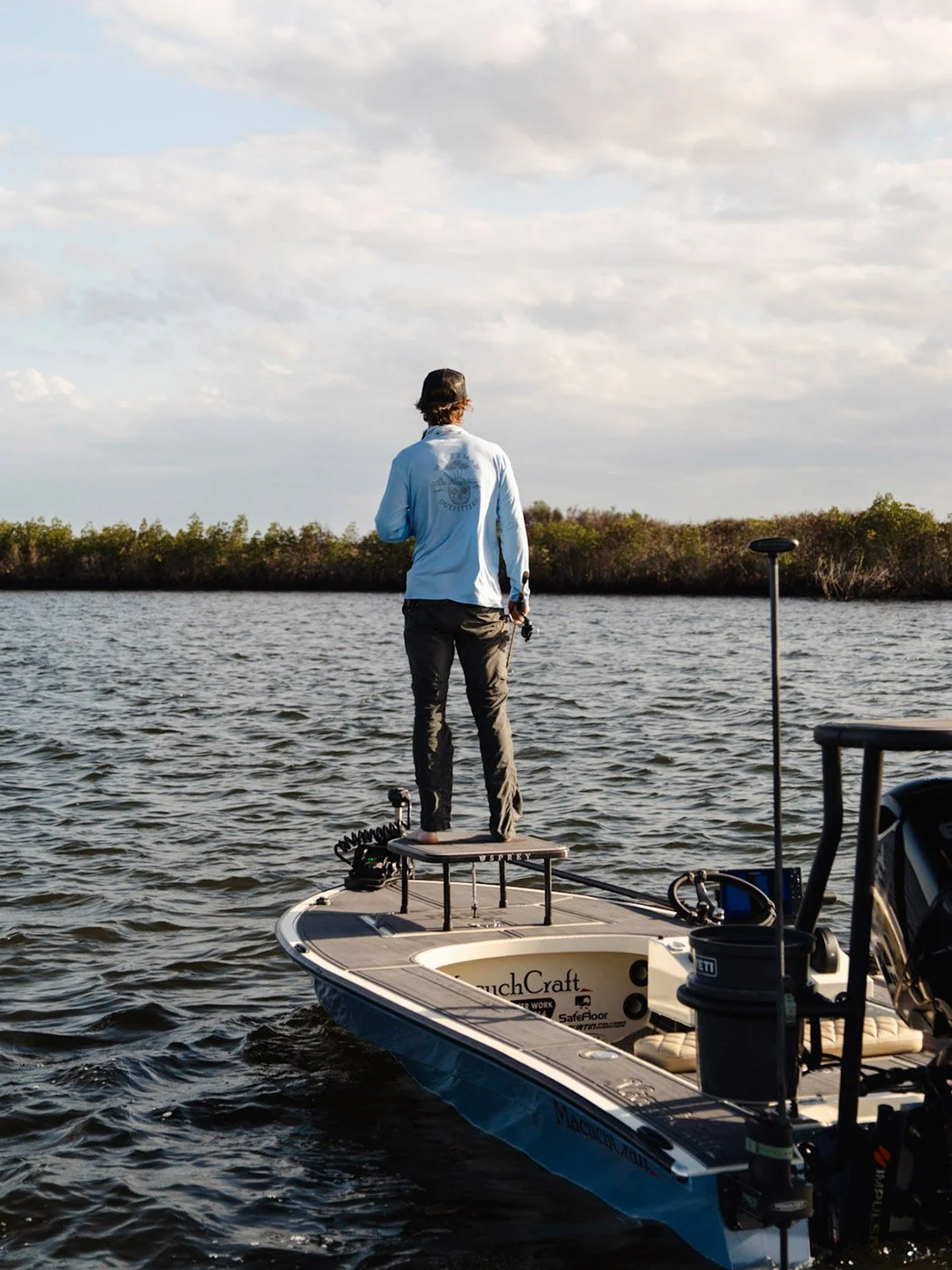

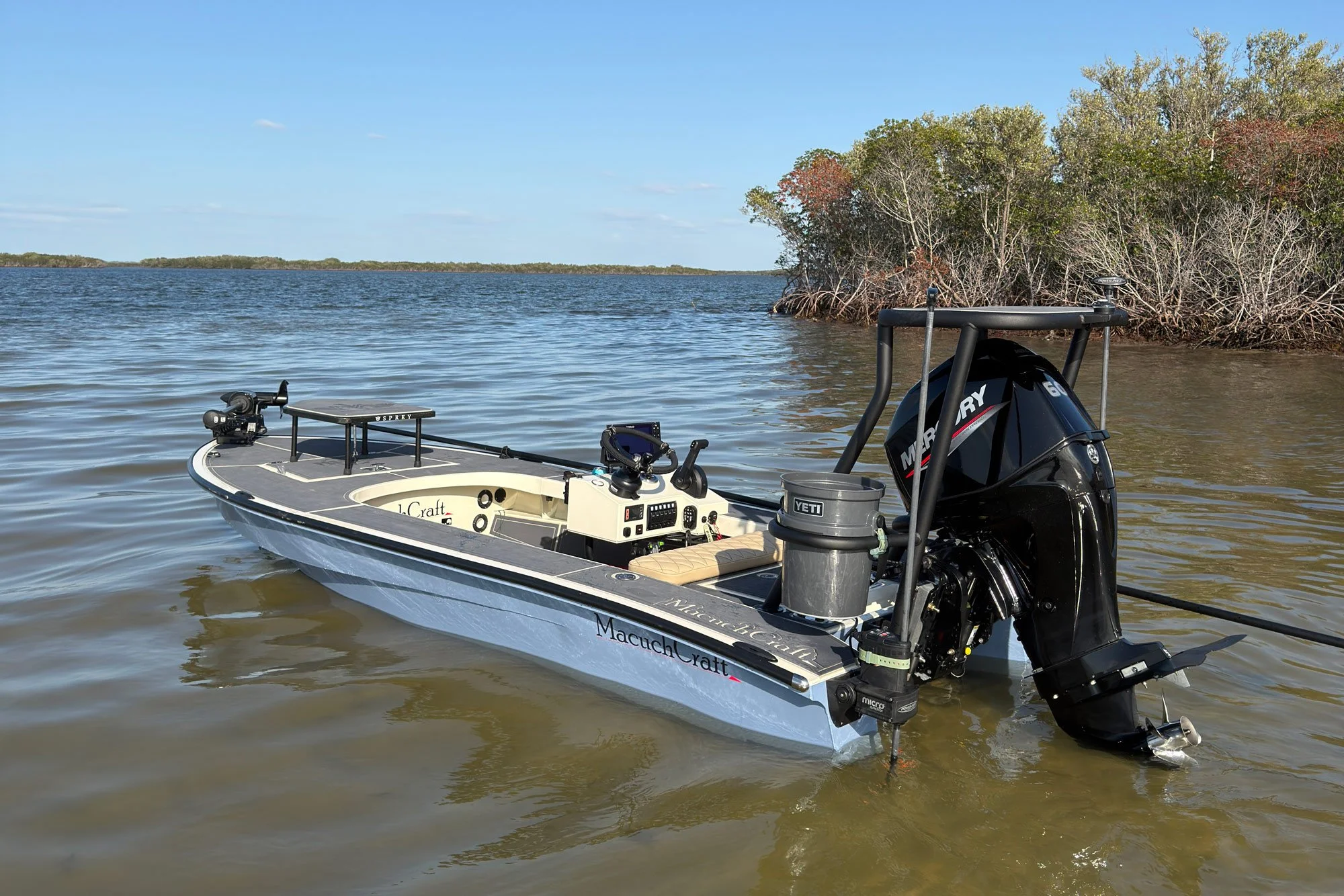

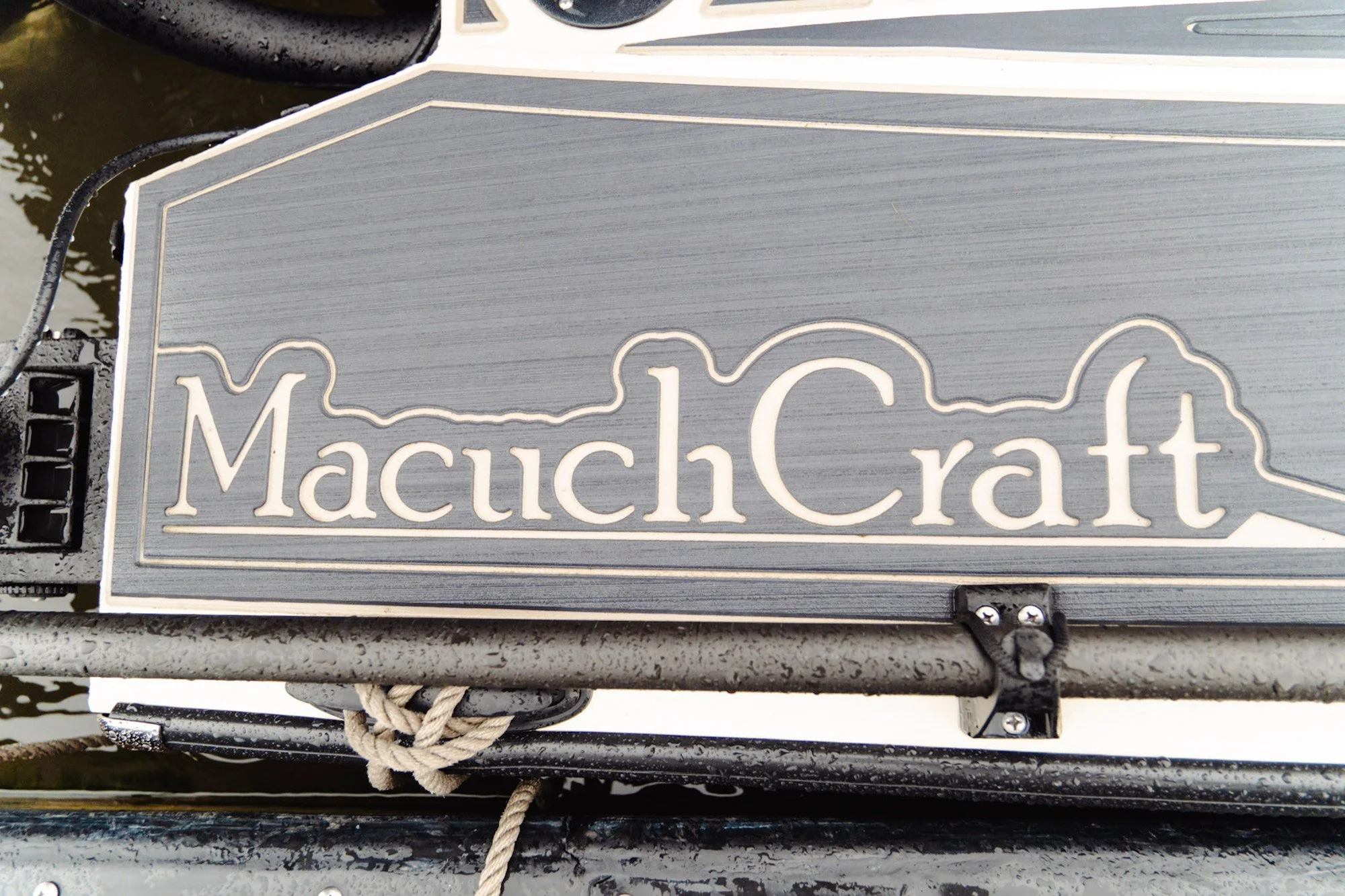

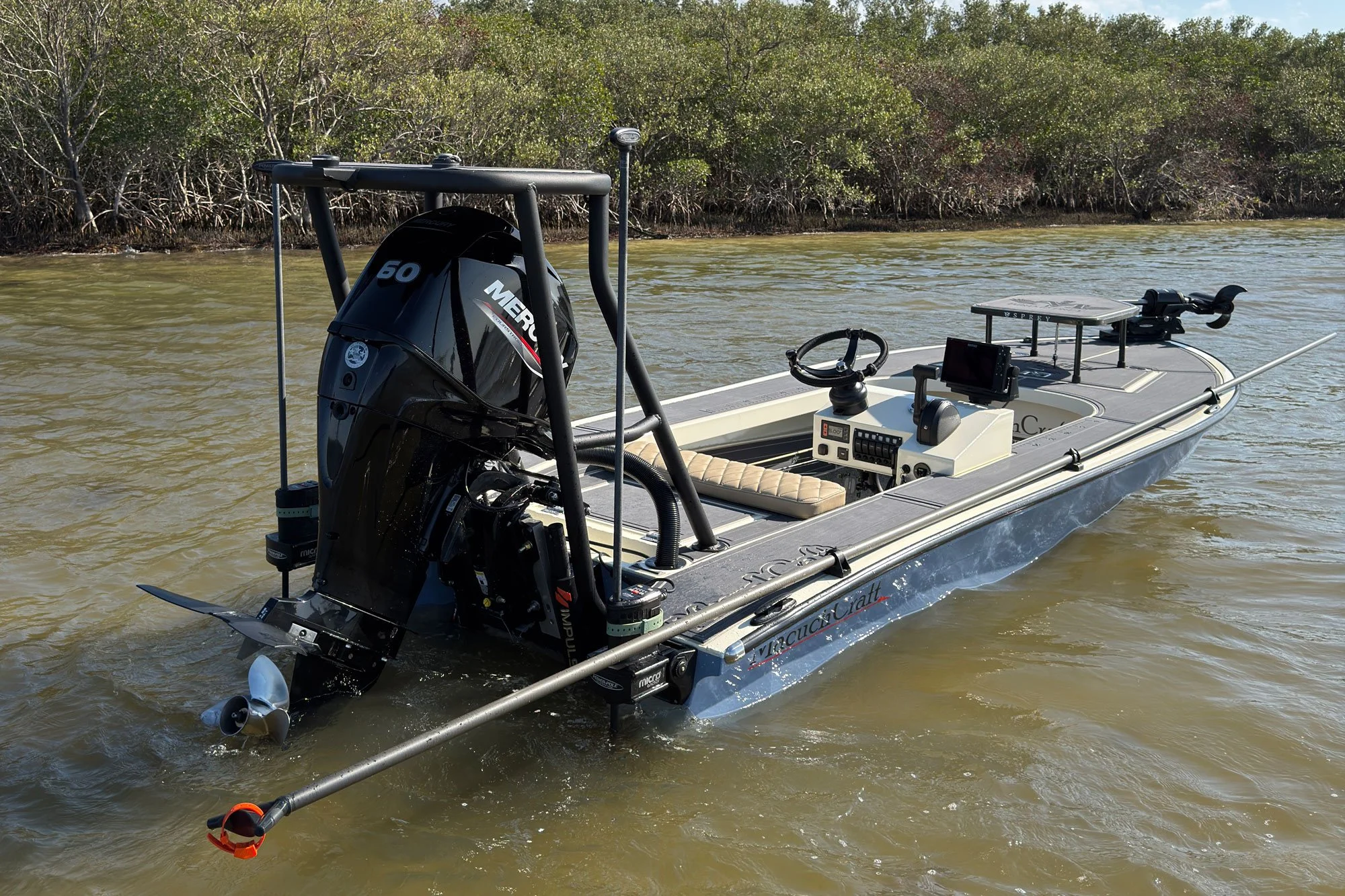

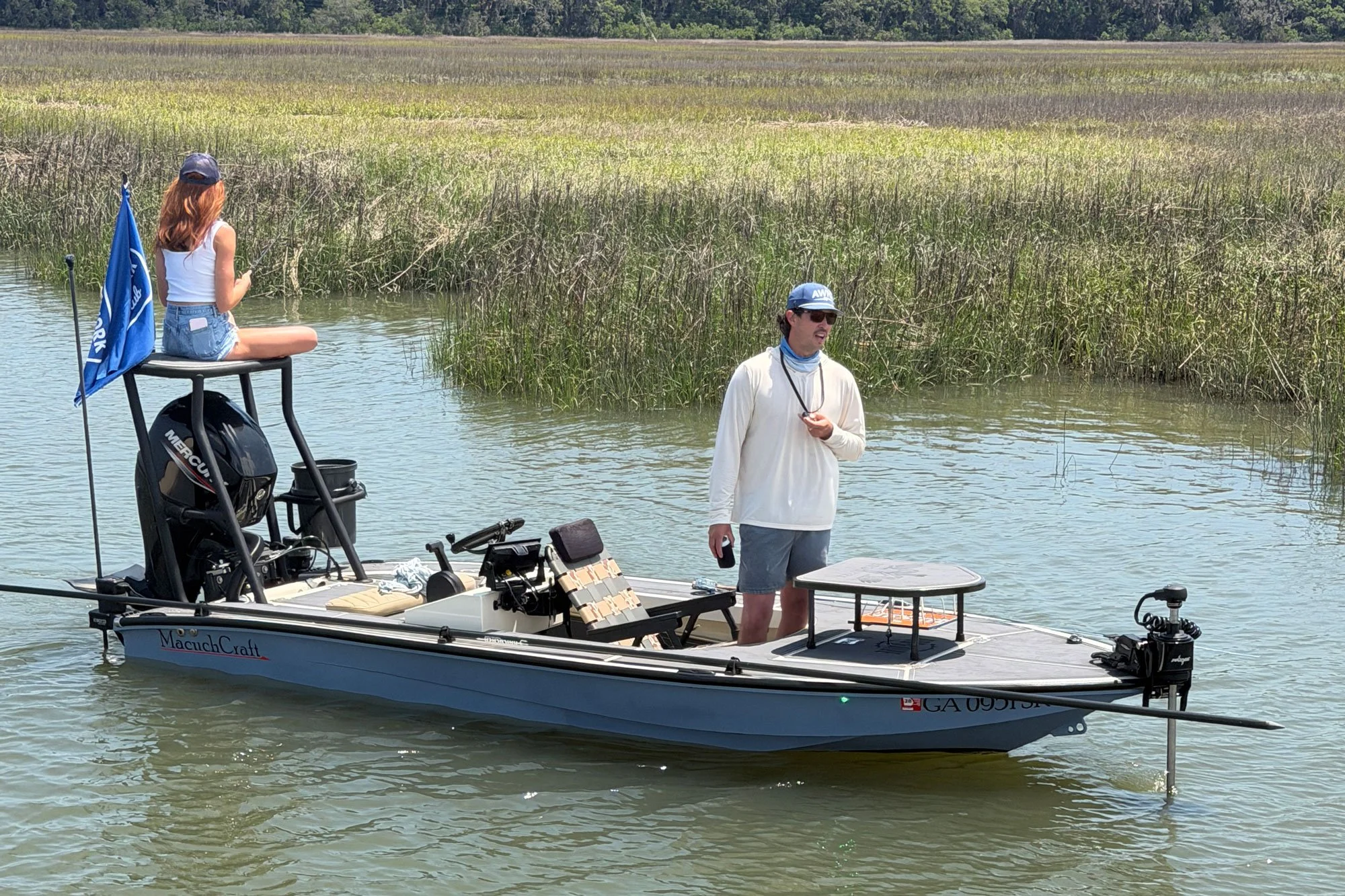

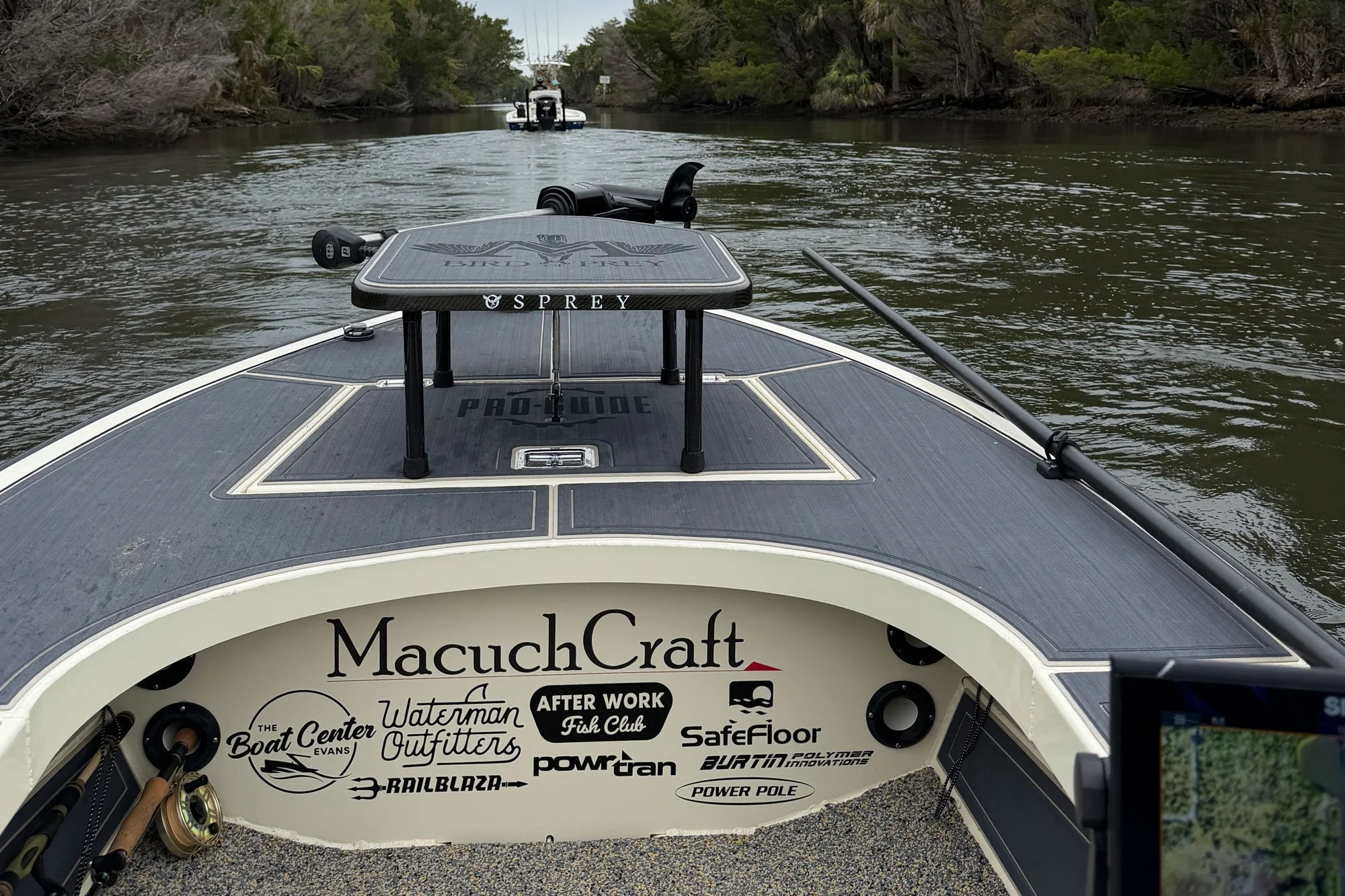

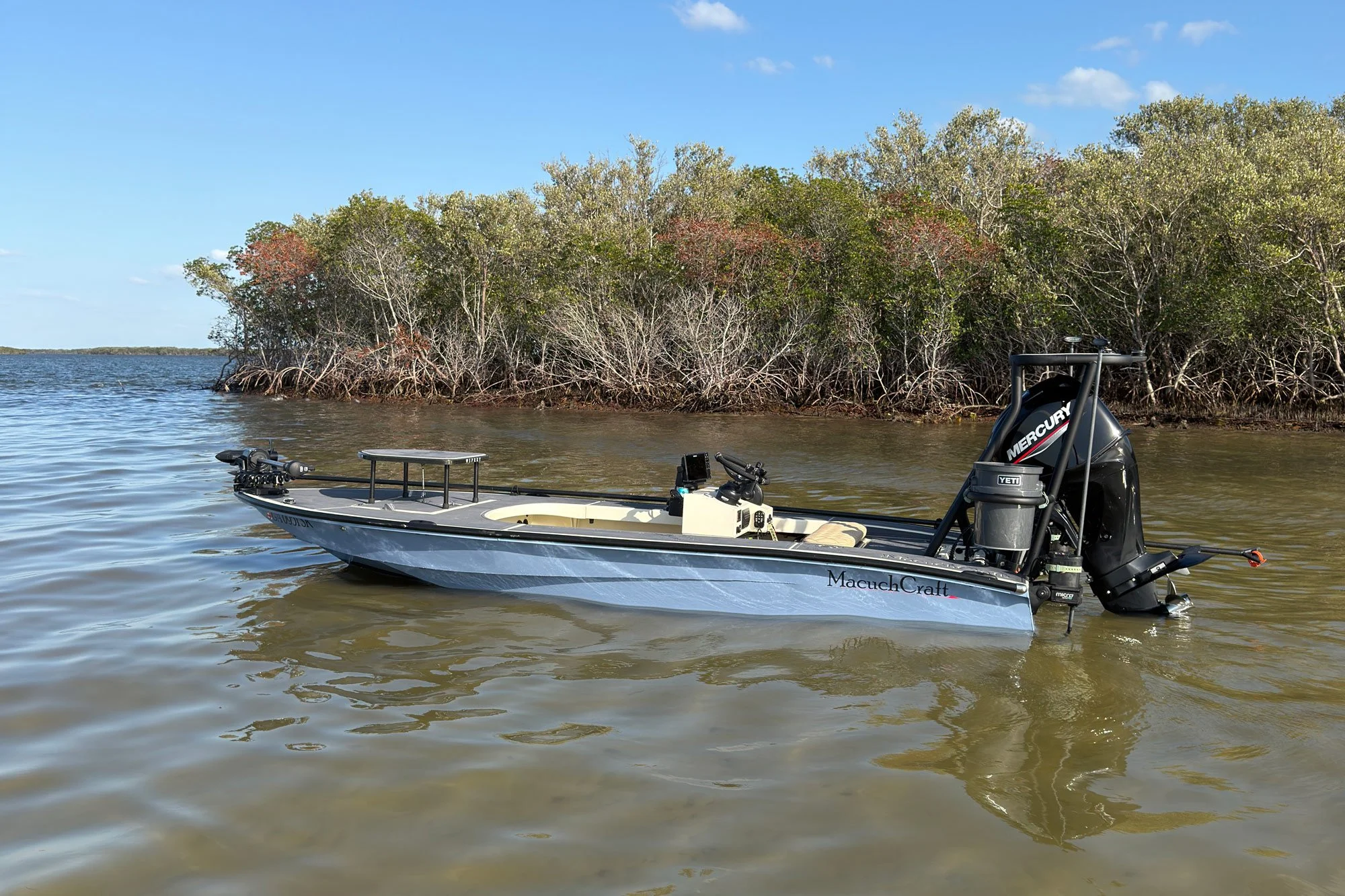

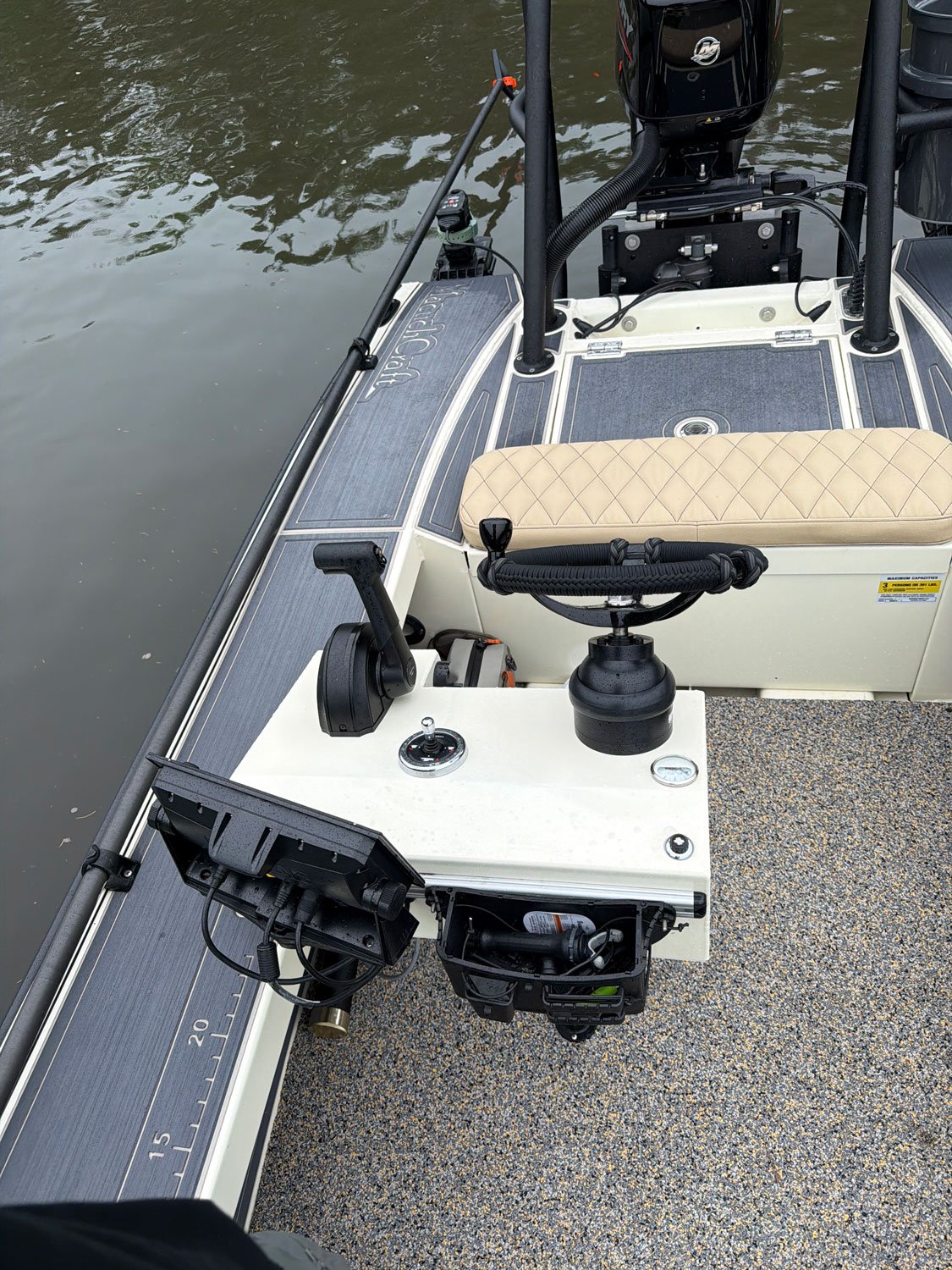

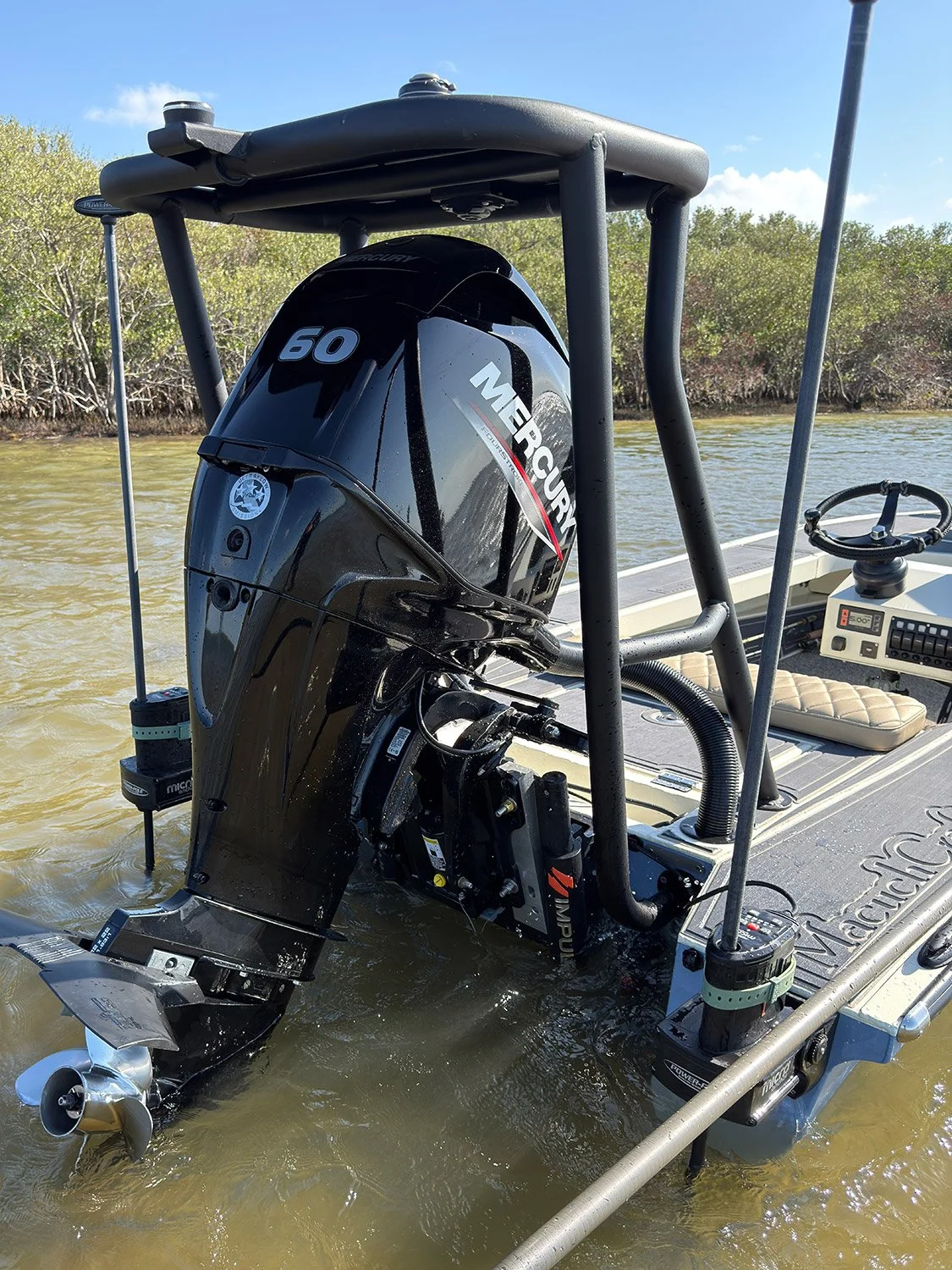

Voyager 16 Aluminum Skiff Gallery
